How much power does the terminal board for the IS230TNCIH3C consume?

The terminal board TBCI consumes 20.6 W of power.

What is the current input for the circuits of the IS230TNCIH3C?

The first 21 circuits on the IS230TNCIH3C draw 2.5 mA. The last three circuits draw 10 mA.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home GE Boards & Turbine Control Mark VIe & Mark VIeS Control Systems IS230TNCIH3C

About | Product Specifications | FAQs

IS230TNCIH3C

4.00 (1)
Click a star to rate this product

4.00 (1)
Click a star to rate this product

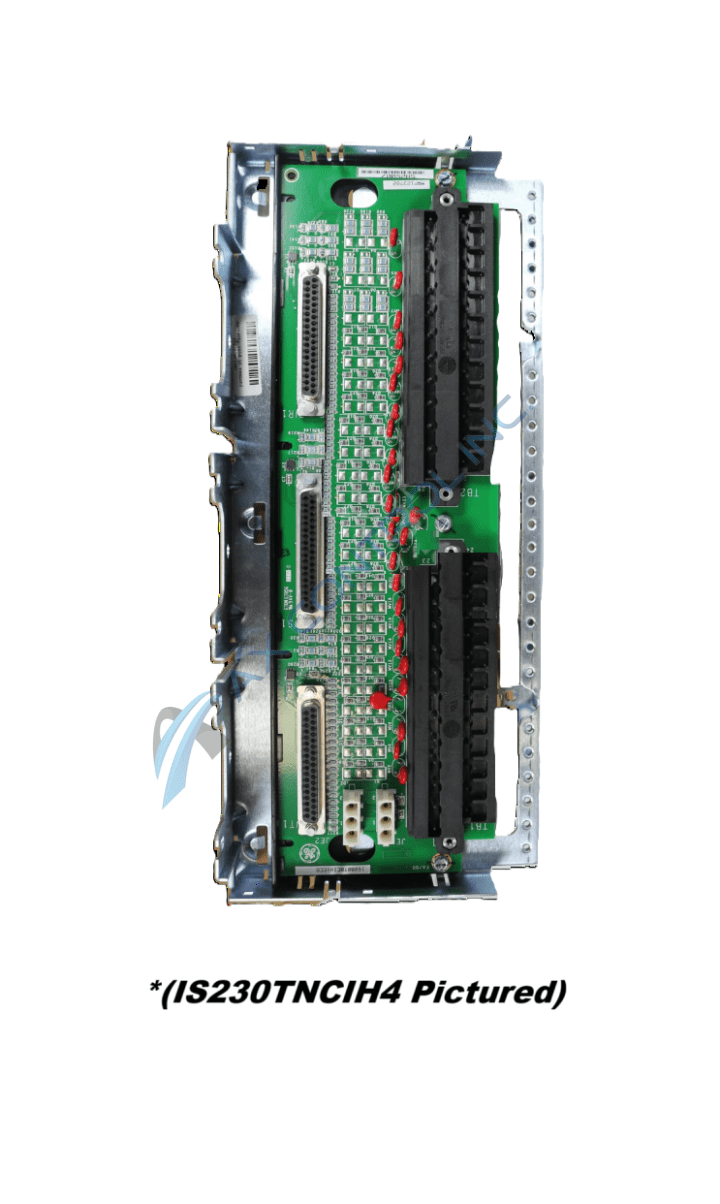

The IS230TNCIH3C is a Contact Input Module that was manufactured for the Mark VIe Series by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TNCIH3C to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TNCIH3C
SKU: GBTC-58829

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TNCIH3C Technical Specifications

Part Number	IS230TNCIH3C
Product Type	Contact Input Module
Manufacturer	GE Energy
Series	Mark VIe
Terminal Board	TBCI terminal board
I/O Pack	PDIA Pack
Redundancy	Simplex Redundancy
Nominal Contact Excitation Voltage	48 V dc

About the IS230TNCIH3C

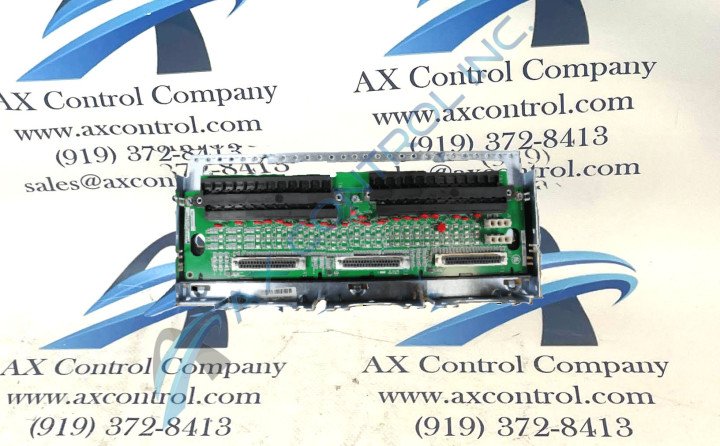

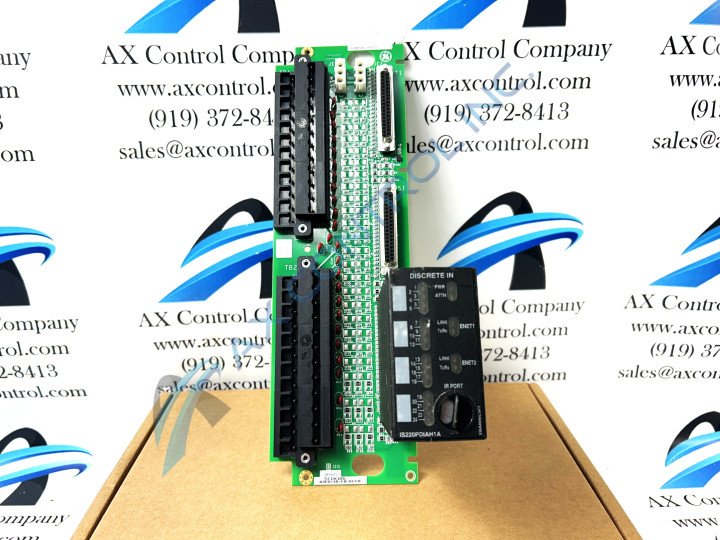

The IS230TNCIH3C Contact Input Module is made up of a TBCI terminal board and a PDIA I/O Pack. The module was manufactured by GE Energy for use in the Mark VIe Series of Turbine Control Systems.

IS230TNCIH3C Specifications

The IS230TNCIH3C can only be used in simplex applications, which means that only one I/O pack will be connected to the terminal board. There are several fault detectors on the module. The faults that can be detected are:

Unplugged cable
Loss of contact excitation voltage
Non-responding contact input in test mode

The PDIA I/O pack monitors these conditions and will alert users if a fault occurs with one of these components. The IS230TNCIH3C also has noise suppression circuitry on the inputs that is designed to protect the inputs from surge and high frequency noise.
