IS230TNCIH2C

4.93 (15)
Click a star to rate this product

4.93 (15)
Click a star to rate this product

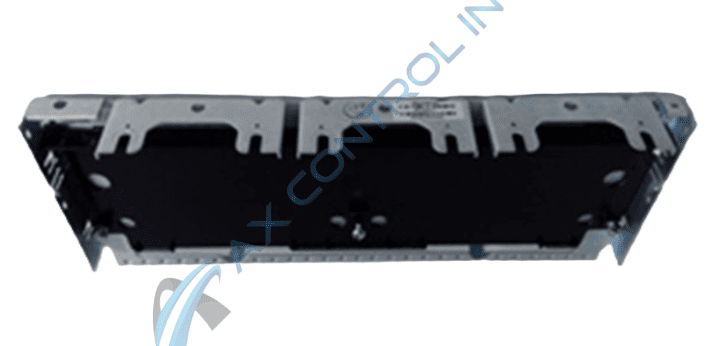

The IS230TNCIH2C is a Contact Input Module that was manufactured by GE Energy for use in the Mark VIe Series

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TNCIH2C to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TNCIH2C
SKU: GBTC-58826

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TNCIH2C Technical Specifications

Part Number	IS230TNCIH2C
Product Type	Contact Input Module
Manufacturer	GE Energy
Series	Mark VIe
Base PCB Redundancy	Simplex I/O Redundancy
V dc Rating	24 V dc
Mark VIe Series Mounting	Standard DIN Rail
Mark Series Grouping	Second Grouping

About the IS230TNCIH2C

The IS230TNCIH2C is a Contact Input Module from the Mark VIe Series manufactured by GE Energy. The module is made up of a TBCI terminal board and a PDIA I/O pack. The IS230TNCIH2C is designed for simplex applications.

IS230TNCIH2C Specifications

The IS230TNCIH2C accepts 24 dry contact inputs and has a contact excitation rating of 24 V dc. Dc power is wired to the TBCI terminal board. The voltage source is connected using JE1 and JE2. The I/O pack also plugs directly into the terminal board.

There are three DC-37 pin connectors on the IS230TNCIH2C. These are:

JR1
JS1
JT1

Only JR1 will be used, with the PDIA pack plugging into this connector.

Frequently Asked Questions about IS230TNCIH2C

Does the IS230TNCIH2C have filters for noise suppression?

Yes, the IS230TNCIH2C has filters that suppress surge and high frequency noise. This protects the inputs on the IS230TNCIH2C.

What is the hardware compatibility diagnostic for on the IS230TNCIH2C?

This diagnostic check makes sure that the associated terminal board is the correct board.

Reviews For IS230TNCIH2C

Internal Review

(5.0)

The IS230TNCIH2C has several diagnostic checks that ensure all parts of the module are working correctly. One of these includes a check of the inputs in the open contact position. If any of the inputs fails this state, a fault will be created and the inputs will be forced to the fail safe state. - AX Control Lead Technician
