About the IS230TNCIH1C

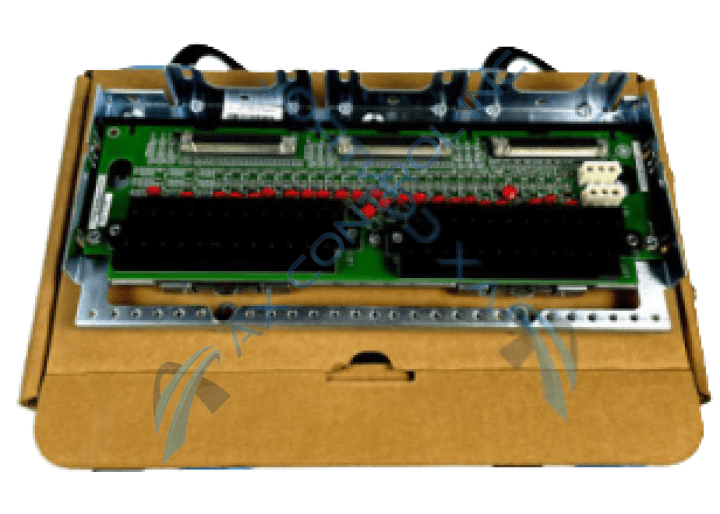

The IS230TNCIH1C is a Contact Input Module from the Mark VIe Series. This module was manufactured by GE Energy. The IS230TNCIH1C is comprised of a TBCI terminal board and a PDIA I/O pack.
IS230TNCIH1C Specifications
The IS230TNCIH1C can only be used in simplex applications, which means that only one I/O pack will be used on the module. The IS230TNCIH1C accepts 24 dry contact inputs that are wired to two terminal blocks. These terminal blocks are barrier-type blocks.
The inputs on the IS230TNCIH1C are powered using a 125 V dc power supply from the turbine control. Several aspects of the module are monitored while the module is being used. Some of these are:
- Excitation voltage monitoring
- Contact input monitoring
- Hardware compatibility monitoring
There are no jumpers on the IS230TNCIH1C, which means the module cannot be configured.
