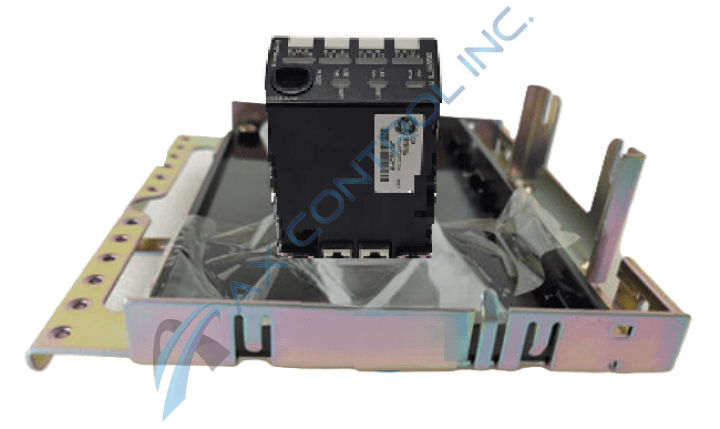

The IS230TNAOH1C is an Analog Output Module from the Mark VIe Series manufactured by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TNAOH1C to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TNAOH1C
SKU: GBTC-58809

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TNAOH1C Technical Specifications

Part Number	IS230TNAOH1C
Product Type	Analog Output Module
Manufacturer	GE Energy
Series	Mark VIe
Redundancy	Simplex Redundancy
I/O Pack	PAOC Pack
Related Product	IS230TBAOH1C
Terminal Board	IS200TBAOH1C
Number of Outputs	16 Outputs

About the IS230TNAOH1C

The IS230TNAOH1C is an Analog Output Module from the Mark VIe Series manufactured by GE Energy. The IS230TNAOH1C is made up of an IS200TBAO terminal board and a PAOC I/O pack. This module only requires one I/O pack because it can only be used for simplex applications.

IS230TNAOH1C Specifications

The IS230TNAOH1C supports 16 analog outputs. These outputs have a current rating of 0-20 mA.

The IS230TNAOH1C offers two diagnostic tests. These tests are:

Hardware compatibility test
Unhealthy output test

If a problem occurs with either of these tests, a fault will be created for the module.

Frequently Asked Questions about IS230TNAOH1C

Which connector does the PAOC pack plug into on the IS230TNAOH1C?

The PAOC I/O pack plugs into the JR1 connector on the IS230TNAOH1C.

Can the analog outputs on the IS230TNAOH1C be configured to a different current rating?

No, the IS230TNAOH1C does not have any jumpers, which means the analog outputs cannot be configured.

Reviews For IS230TNAOH1C

Internal Review

(5.0)

The IS230TNAOH1C has protective features on the outputs that are designed to protect against surge and high frequency noise. The IS230TNAOH1C is easy to install, with the module being mounted onto a DIN rail. This allows the module to be easily set up within the application it is being used with. - AX Control Lead Technician
