About the IS230TNAIH3C

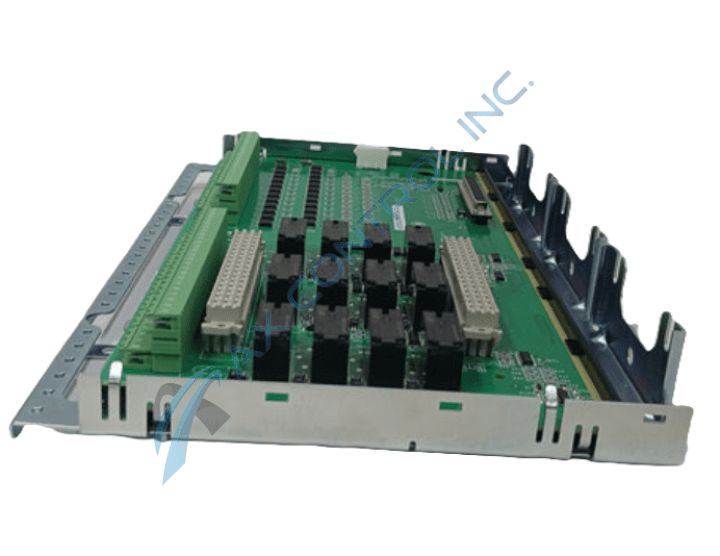

The IS230TNAIH3C is an Analog I/O Module that was manufactured by GE Energy. This module was designed for use in the Mark VIe Series. The IS230TNAIH3C is made up of an IS200TBAI board and an IS220PAIC I/O Pack.
IS230TNAIH3C Specifications
The IS230TNAIH3C supports 10 analog inputs and 2 analog outputs. The analog inputs can accommodate externally powered transmitters, as well as two, three, and four wire transmitters.
There are several diagnostic features that are important to the module. The diagnostic features will send faults if needed. These faults are:
- Hardware incompatibility fault
- Unhealthy output fault
The IS230TNAIH3C can only be used for simplex applications, which means there is only one I/O pack connected to the module.
