The IS230TDBTH4A is a Discrete I/O Module from the Mark VIe Series that was manufactured by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TDBTH4A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TDBTH4A
SKU: GBTC-58857

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TDBTH4A Technical Specifications

Part Number	IS230TDBTH4A
Product Type	Discrete I/O Module
Manufacturer	GE Energy
Series	Mark VIe
Number of Revisions Applied	One Rev
Revision Style	A-Rated Primary Functional
Mark VIe Series Group	Group Four
I/O Pack Count	Three I/O Packs (PDIO)

About the IS230TDBTH4A

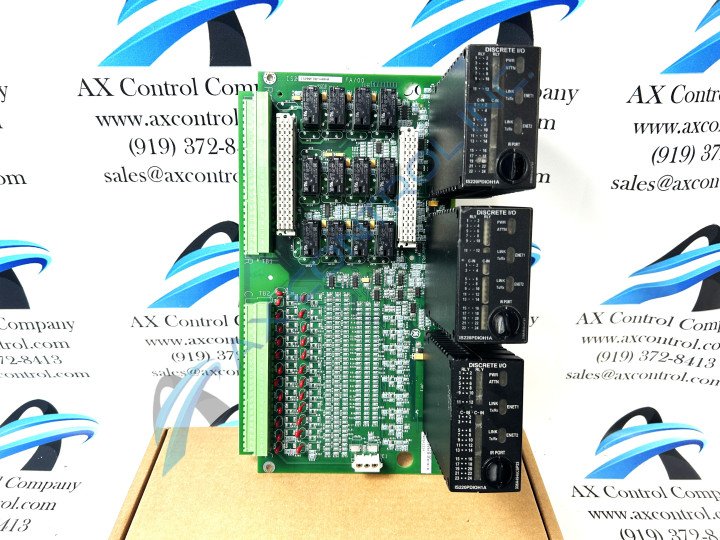

The IS230TDBTH4A is a Discrete I/O Module from the Mark VIe Series that was manufactured by GE Energy. This module is comprised of an IS200TDBT terminal board and three PDIO I/O packs. The IS230TDBTH4A can also be connected to an IS200WROB option board for expanded relay functions.

IS230TDBTH4A Specifications

The IS230TDBTH4A accepts 24 group isolated contact inputs supplied with a nominal 48 V dc wetting voltage rating. The IS230TDBTH4A also provides 12 form-C relay outputs. There are some current input resistance limits on the IS230TDBTH4A. These are:

First 21 circuits are 2.5 mA rated
Circuits 22 through 24 are 10.4 mA rated

There are several diagnostic features that the IS230TDBTH4A has. One of these features is the monitoring of the wetting voltage. If the wetting voltage drops below 40% of the nominal voltage, a fault will be set.

Frequently Asked Questions about IS230TDBTH4A

What connectors on the IS230TDBTH4A can be used to connect the option board?

The JW1 and JW2 connectors can be used on the IS230TDBTH4A to connect option boards.

Does the IS230TDBTH4A have filters for the inputs?

Yes, there are filters on the contact inputs that help with noise suppression for surge and high frequency noise.

Reviews For IS230TDBTH4A

Internal Review

(4.0)

The IS230TDBTH4A is only compatible with one type of option board, the WROB. The WROB board provides fused sensed power distribution to the first four relay outputs and dedicated power to the last relay output. The incompatibility with other boards means the IS230TDBTH4A does not work with the WROF and WROG option boards that other modules can work with, making this a four star part. - AX Control Lead Technician

Repair Services For IS230TDBTH4A

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	Ask	Get Quote

Our highly skilled technicians can repair your IS230TDBTH4A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
