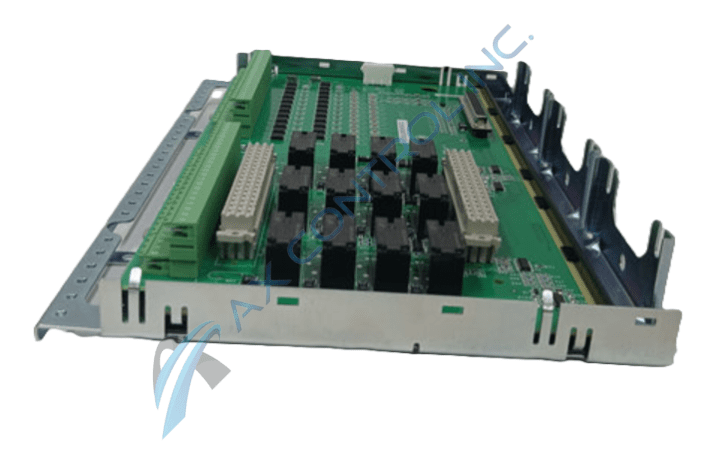

The IS230TDBSH2A is a Discrete I/O Module that was manufactured by GE Energy for use in the Mark VIe Series

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TDBSH2A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TDBSH2A
SKU: GBTC-58848

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TDBSH2A Technical Specifications

Part Number	IS230TDBSH2A
Product Type	Discrete I/O Module
Manufacturer	GE Energy
Series	Mark VIe
Terminal Board	IS200TDBS
I/O Pack	PDIO Pack
Number of Inputs	24
Number of Outputs	12

About the IS230TDBSH2A

The IS230TDBSH2A is a Discrete Input/Output Module that was manufactured by GE Energy for use in the Mark VIe Series. This module is made up of an IS200TDBS terminal board and the PDIO I/O pack.

IS230TDBSH2A Specifications

The IS230TDBSH2A accepts 24 contact inputs and provides 12 form-C relay outputs. The IS230TDBSH2A can have option boards attached to the module through the terminal board. These option boards are:

IS200WROB
IS200WROF
IS200WROG

The IS230TDBSH2A has a nominal voltage rating of 24 V dc. The IS230TDBSH2A can only be used in simplex applications, which means that only one PDIO pack can be mounted to the terminal board.

Frequently Asked Questions about IS230TDBSH2A

Does the IS230TDBSH2A have pluggable terminal blocks?

Yes, the terminal blocks on the IS230TDBSH2A are pluggable, which means the blocks can be taken off if needed.

Does the IS230TDBSH2A have filters for noise suppression?

Yes, the IS230TDBSH2A has filters on its inputs that protect against surge and high frequency noise.

Reviews For IS230TDBSH2A

Internal Review

(5.0)

The IS230TDBSH2A can have option boards connected that expand the functions of the inputs and outputs of the module. The WROF board adds an optional fuse in series with each relay common connection. Fuse voltage feedback is also included with this option board. - AX Control Lead Technician
