What kind of terminal blocks does the IS230TBCIH6C have?

The IS230TBCIH6C has two barrier type terminal strips that can be removed if needed.

What is the power consumption of the IS230TBCIH6C?

The terminal board in the IS230TBCIH6C has a power consumption of 20.6 W.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home GE Boards & Turbine Control Mark VIe & Mark VIeS Control Systems IS230TBCIH6C

About | Product Specifications | FAQs

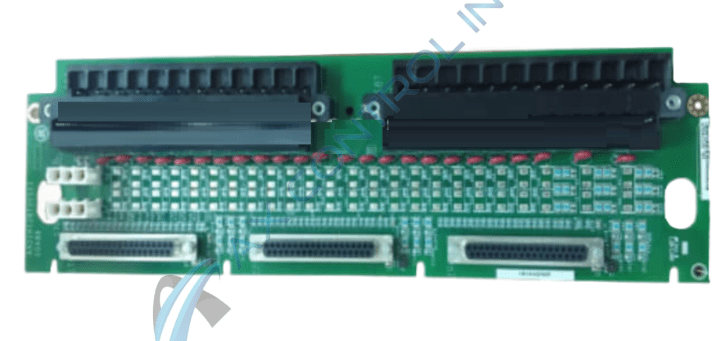

IS230TBCIH6C

4.93 (15)
Click a star to rate this product

4.93 (15)
Click a star to rate this product

The IS230TBCIH6C is a Discrete Input Module that was manufactured by GE Energy for use in the Mark VIe Series

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TBCIH6C to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TBCIH6C
SKU: GBTC-58834

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TBCIH6C Technical Specifications

Part Number	IS230TBCIH6C
Product Type	Discrete Input Module
Manufacturer	GE Energy
Series	Mark VIe
Number of Channels	24 Channels
IS230TBCIH6C Mount	DIN Rail w/ Bracket
Terminal Board	TBCI terminal board
I/O Pack	PDIA I/O pack

About the IS230TBCIH6C

The IS230TBCIH6C is a Discrete Input Module from the Mark VIe Series. This module was manufactured by GE Energy and is made up of an IS200TBCI terminal board and up to three PDIA I/O packs that mount to the terminal board.

IS230TBCIH6C Specifications

The IS230TBCIH6C has noise suppression circuitry on the 24 contact inputs that protect against surge and high frequency noise.

The IS230TBCIH6C supports simplex, dual, and TMR applications. The PDIA packs are designed to be connected to the following connectors:

Connector JT1
Connector JS1
Connector JR1

There are no jumpers on the IS230TBCIH6C, which means that no configurations can be made to the module.

Reviews For IS230TBCIH6C

Internal Review

(5.0)

The IS230TBCIH6C is able to diagnose several faults that might occur to the module. These faults include an unplugged cable, loss of contact input excitation voltage, and a non-responding contact input in test mode. The faults can be diagnosed by the PDIA I/O pack. - AX Control Lead Technician
