What types of systems can the IS230TBCIH3C be used in?

The IS230TBCIH3C can be used in industrial systems, such as gas and steam turbines.

What is the power consumption of the IS230TBCIH3C?

The IS230TBCIH3C has a power consumption of 20.6 W on the terminal board.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home GE Boards & Turbine Control Mark VIe & Mark VIeS Control Systems IS230TBCIH3C

❮

❯

About | Product Specifications | FAQs

IS230TBCIH3C

4.92 (12)
Click a star to rate this product

4.92 (12)
Click a star to rate this product

The IS230TBCIH3C is a Discrete Input Module from the Mark VIe Series that was manufactured by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TBCIH3C to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TBCIH3C
SKU: GBTC-58827

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TBCIH3C Technical Specifications

Part Number	IS230TBCIH3C
Product Type	Discrete Input Module
Manufacturer	GE Energy
Series	Mark VIe
Functional Product Acronym	TBCI
Revision Total	One C-rated Revision
V Dc Rating	48 V dc
Mounting Choice	Typical DIN-Rail

About the IS230TBCIH3C

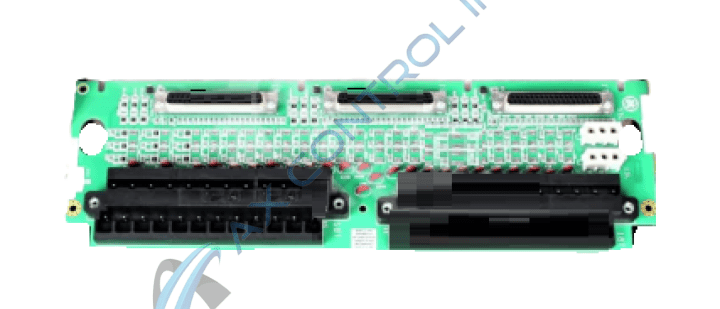

The IS230TBCIH3C is a Discrete Input Module from the Mark VIe Series. This module was manufactured by GE Energy. The IS230TBCIH3C is comprised of an IS200TBCI terminal board and an IS220PDIA I/O pack.

IS230TBCIH3C Specifications

The IS230TBCIH3C accepts 24 contact voltage inputs and has a nominal voltage rating of 48 V dc.

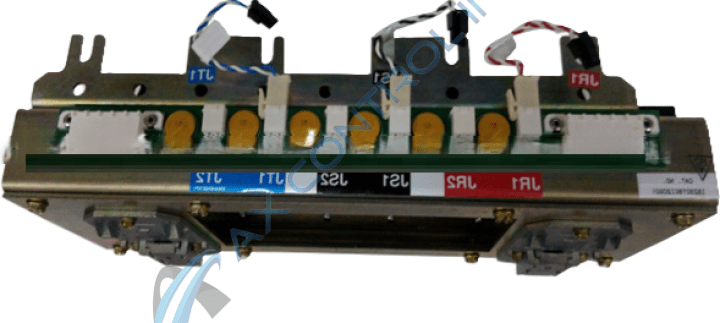

The IS230TBCIH3C has three connectors. These connectors are:

JT1
JS1
JR1

The IS230TBCIH3C can only be used with simplex applications, which means that only one PDIA pack will be used with the terminal board.

The IS230TBCIH3C also has several diagnostic features that allow users to know the status of the module. One of these features monitors the excitation voltage of the module. If the excitation voltage drops below 40% of the nominal voltage, a diagnostic alarm is set and latched by the PDIA pack.

Reviews For IS230TBCIH3C

Internal Review

(5.0)

The IS230TBCIH3C is designed to be DIN-rail mounted, which is an easy installation practice for users. The contact inputs on the terminal board have noise suppression filters, which work to protect the inputs from high frequency noise and surge. - AX Control Lead Technician
