IS230TBCIH2C

4.88 (16)
Click a star to rate this product

4.88 (16)
Click a star to rate this product

The IS230TBCIH2C is a Discrete Input Module from the Mark VIe Series that was manufactured by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TBCIH2C to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TBCIH2C
SKU: GBTC-58825

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TBCIH2C Technical Specifications

Part Number	IS230TBCIH2C
Part Type	Discrete Input Module
Manufacturer	GE Energy
Product Series	Mark VIe
V dc	24 V dc
I/O Redundancy	Simplex
I/O Packs Installed	PDIA
Primary Functioning Revision	C-Graded Functional Revision
Product Mounting	DIN Rail Mounting

About the IS230TBCIH2C

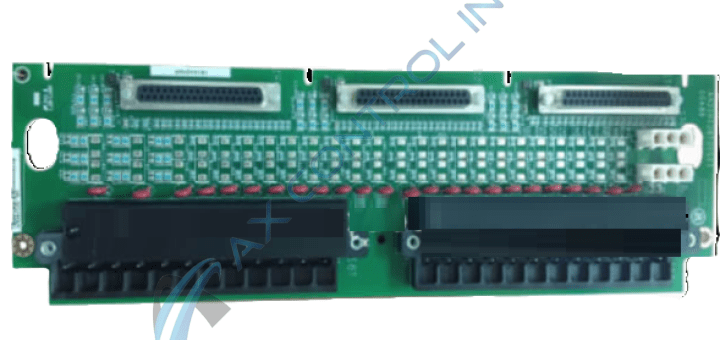

The IS230TBCIH2C is a Discrete Input Module that was manufactured by GE Energy for use in the Mark VIe Series. This module is comprised of an IS200TBCIH2C terminal board and the PDIA I/O Pack.

IS230TBCIH2C Specifications

There are 24 contact inputs on the TBCI terminal board. The IS230TBCIH2C can only be used in simplex applications.

The IS230TBCIH2C has a nominal excitation voltage of 24 V dc, with a range of 18.5 to 32 V dc. There are filters on the contact inputs that are to protect against surge and high frequency noise. The contact excitation source can be plugged into two connectors on the terminal board. These connectors are:

JE1
JE2

These connectors are located next to connector JT1.

Frequently Asked Questions about IS230TBCIH2C

Are there diagnostic features on the IS230TBCIH2C?

Yes, there are several diagnostic features for the module. One of these is a fault for loss of contact excitation voltage.

Does the IS230TBCIH2C allow for configurations?

No, the IS230TBCIH2C cannot be configured because there are no jumpers on the terminal board.

Reviews For IS230TBCIH2C

Internal Review

(5.0)

The PDIA I/O pack that mounted onto the terminal board allows for the diagnostic features that the IS230TBCIH2C has. Another one of these diagnostic features is a test created to make sure the inputs are functioning properly. A fault is created if any of the inputs fails the test. - AX Control Lead Technician
