IS230TBCIH1C

4.86 (14)
Click a star to rate this product

4.86 (14)
Click a star to rate this product

The IS230TBCIH1C is a Discrete Input Module that was manufactured by GE Energy for the Mark VIe Series

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TBCIH1C to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TBCIH1C
SKU: GBTC-58823

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TBCIH1C Technical Specifications

Part Number	IS230TBCIH1C
Product Type	Discrete Input Module
Manufacturer	GE Energy
Series	Mark VIe
Mark VIe/S Series Terminal Board	IS200TBCIH1C
Revision Rarity	Common Rev
PDIA I/O Packs	Up to three packs
V dc	125 V dc

About the IS230TBCIH1C

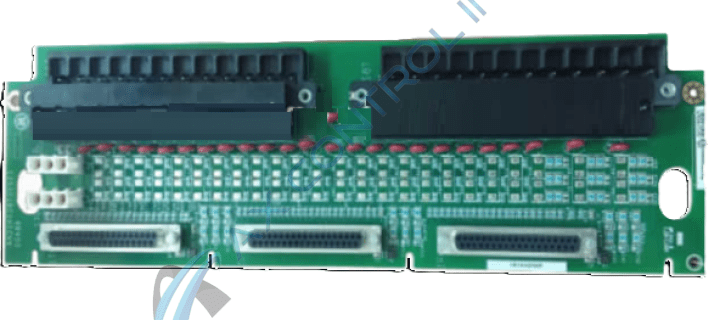

The IS230TBCIH1C is a Discrete Input Module from the Mark VIe Series. This module was manufactured by GE Energy. The IS230TBCIH1C is made up of the IS200TBCIH1C terminal board and the PDIA I/O pack. The IS230TBCIH1C can be used in simplex, dual, and TMR applications, which means that one, two, or three PDIA packs can be used with the module.

IS230TBCIH1C Specifications

The IS230TBCIH1C accepts 24 dry contact inputs that are wired to the two terminal blocks on the terminal board. The IS230TBCIH1C has a nominal excitation voltage of 125 V dc.

When applying the IS230TBCIH1C in a TMR system, the following connectors are used for the I/O pack:

JR1
JT1
JS1

There are no jumpers on the TBCI terminal board, which means that no configurations can be made to the module.

Frequently Asked Questions about IS230TBCIH1C

What type of current does the IS230TBCIH1C work with?

The IS230TBCIH1C works with Direct Current or DC voltages. The nominal voltage is 125 V dc, but the voltage range is 100 to 145 V dc.

Does the IS230TBCIH1C get the contact excitation from an external source?

Yes, the IS230TBCIH1C gets its power from an external power source.

Reviews For IS230TBCIH1C

Internal Review

(5.0)

The IS230TBCIH1C has filters that protect against high frequency noise and surges. This protects the contact inputs on the TBCI terminal board. Another important feature of the IS230TBCIH1C is the diagnostic features that the module has. This includes a test of the contacts inputs. - AX Control Lead Technician

Repair Services For IS230TBCIH1C

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	Ask	Get Quote

Our highly skilled technicians can repair your IS230TBCIH1C. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
