IS230TBAOH2C

4.94 (16)
Click a star to rate this product

4.94 (16)
Click a star to rate this product

The IS230TBAOH2C is an Analog Output Module from the Mark VIe Series manufactured by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TBAOH2C to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TBAOH2C
SKU: GBTC-58810

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TBAOH2C Technical Specifications

Part Number	IS230TBAOH2C
Product Type	Analog Output Module
Manufacturer	GE Energy
Series	Mark VIe
Mark Series Redundancy	Simplex I/O Redundancy
Revisions Made	C-Graded Functional Rev
I/O Pack	PAOC Pack
Terminal Board	TBAO Board

About the IS230TBAOH2C

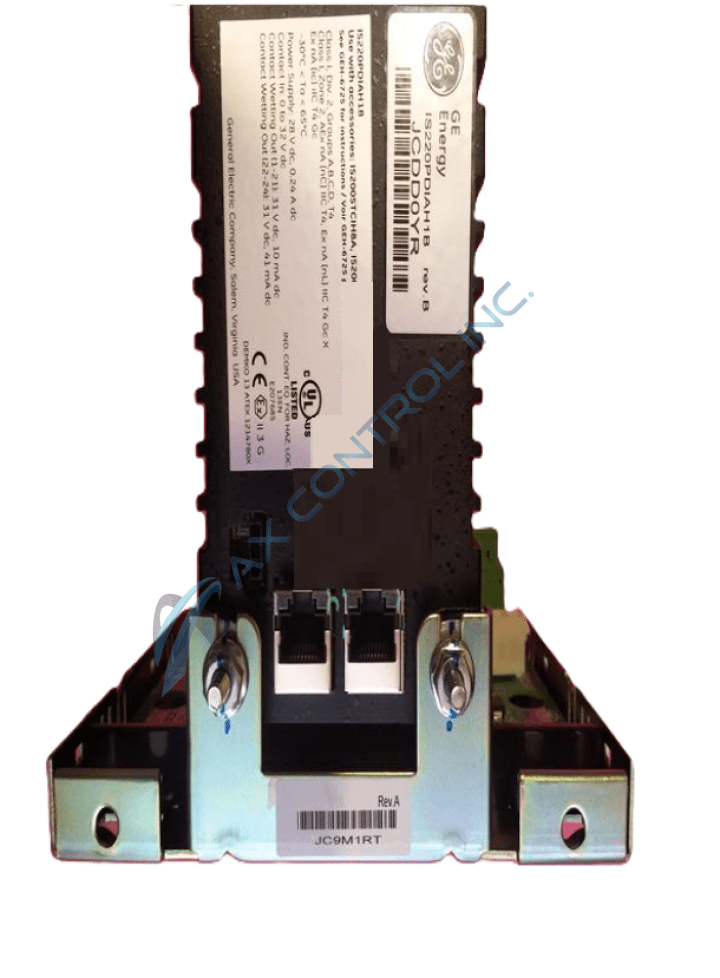

The IS230TBAOH2C is an Analog Output Module from the Mark VIe Series. This module was manufactured by GE Energy. The IS230TBAOH2C is made up of an IS200TBAO terminal board and the PAOC I/O Pack.

IS230TBAOH2C Limitations and I/Os

The IS230TBAOH2C supports 16 analog outputs that are located on the TBAO terminal board. These outputs have a current range of 0-20 mA. There are two terminal blocks on the IS230TBAOH2C that each have 24 terminals.

There are some limitations to the IS230TBAOH2C. These are:

Only used in simplex applications
Only accepts one PAOC Pack
No configuration available

Configurations are not available because there are no jumpers on the IS230TBAOH2C.

Frequently Asked Questions about IS230TBAOH2C

How is the output current of the IS230TBAOH2C measured?

The output current is measured by the voltage drop across a resistor on the terminal board, TBAO.

Does the IS230TBAOH2C have any noise suppression features?

Yes, the IS230TBAOH2C has filters that reduce high frequency noise and surges.

Reviews For IS230TBAOH2C

Internal Review

(4.0)

The IS230TBAOH2C cannot be used in TMR or dual systems, which limits the applications that this module can be used with. The IS230TBAOH2C does have 16 analog outputs that allows for a number of connections to be made. The IS230TBAOH2C has local control given the PAOC pack is attached to the module. - AX Control Lead Technician
