IS230TBAIH2C

4.92 (13)
Click a star to rate this product

4.92 (13)
Click a star to rate this product

The IS230TBAIH2C is an Analog I/O Module that was manufactured by GE Energy for use in the Mark VIe Series

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TBAIH2C to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TBAIH2C
SKU: GBTC-58800

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TBAIH2C Technical Specifications

Part Number	IS230TBAIH2C
Product Type	Analog I/O Module
Manufacturer	GE Energy
Series	Mark VIe
I/O Pack Redundancy Style	Simplex or TMR
Quantity of PAIC Packs	1 or 3 PAIC I/O Packs
I/O Signal Style	Analog
Typical Mark VIe/S Series Product Mounting	DIN Rail

About the IS230TBAIH2C

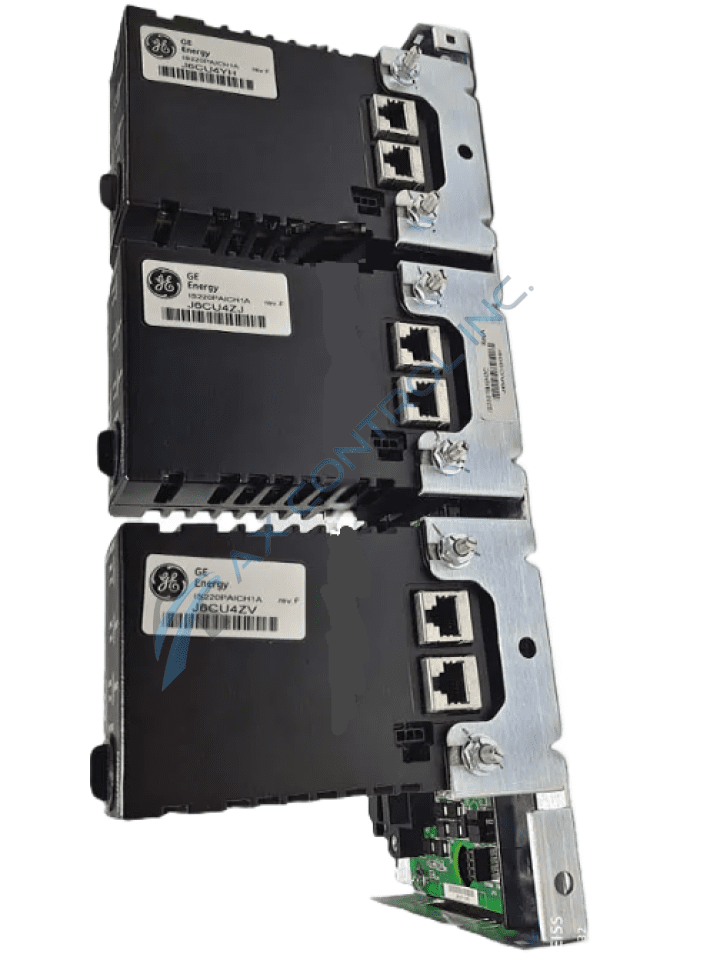

The IS230TBAIH2C is an Analog I/O Module that was manufactured by GE Energy. This module was designed to be used in the Mark VIe Series. The IS230TBAIH2C is comprised of an IS200TBAI terminal board and up to three PAIC I/O packs.

IS230TBAIH2C Specifications

The IS230TBAIH2C can be used in both simplex and TMR applications. When used in a TMR application, the IS230TBAIH2C will have three PAIC packs. The three packs plug into the following connectors on the IS230TBAIH2C:

JR1
JS1
JT1

The IS230TBAIH2C supports 10 analog inputs and 2 outputs.

The outputs can have one of two current ratings. These are 0-20 mA or 0-200 mA.

Frequently Asked Questions about IS230TBAIH2C

Are there any noise suppression features on the IS230TBAIH2C?

Yes, the inputs and outputs have noise suppression features to protect against surge and high frequency noise.

How many total channels does the IS230TBAIH2C have?

The IS230TBAIH2C has 12 total channels, with 10 inputs and 2 outputs.

Reviews For IS230TBAIH2C

Internal Review

(5.0)

The IS230TBAIH2C has several diagnostic features that are important to know. These features come from the PAIC I/O pack. The pack monitors the outputs to determine if the outputs go unhealthy. The pack also reads the onboard ID chip to determine compatibility with the terminal board. - AX Control Lead Technician
