What is the voltage range for the IS230STCIH6A?

The voltage range for the IS230STCIH6A is 100 to 140 V dc with the nominal voltage being 125 V dc.

How many terminal inputs on the IS230STCIH6A are available?

The IS230STCIH6A has 52 terminal inputs available.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home GE Boards & Turbine Control Mark VIe & Mark VIeS Control Systems IS230STCIH6A

❮

❯

About | Product Specifications | FAQs

IS230STCIH6A

4.92 (12)
Click a star to rate this product

4.92 (12)
Click a star to rate this product

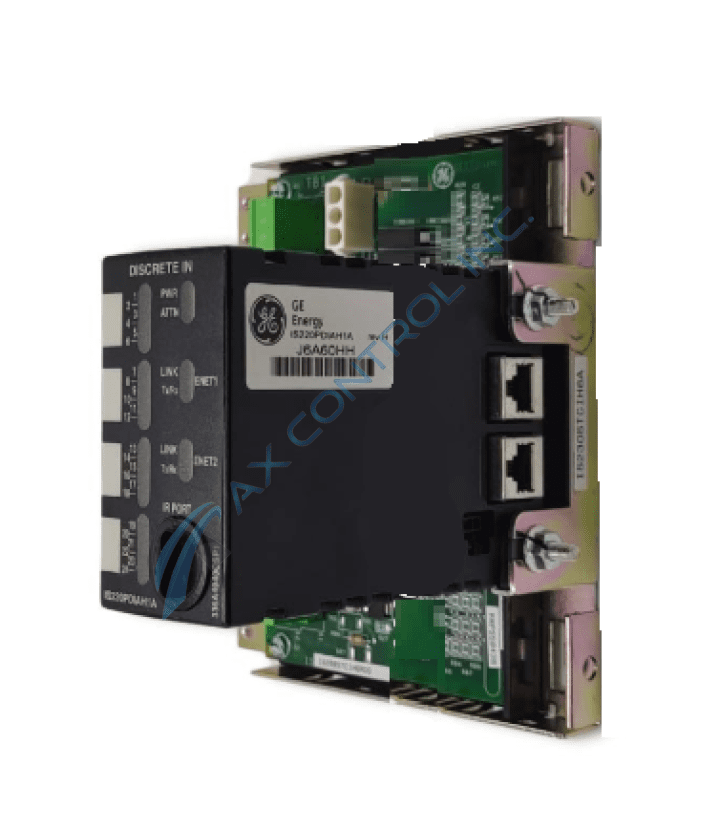

The IS230STCIH6A is a Discrete Input Module from the Mark VIe Series manufactured by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230STCIH6A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230STCIH6A
SKU: GBTC-58821

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230STCIH6A Technical Specifications

Part Number	IS230STCIH6A
Product Type	Discrete Input Module
Manufacturer	GE Energy
Series	Mark VIe
Functional Abbreviation	STCI
Cousin GE Mark Series Product	IS230SNCIH6A
Input Style	Discrete
Input and Output Device Redundancy	Simplex
Assembly Style	IS230 Standard Module

About the IS230STCIH6A

The IS230STCIH6A is a Discrete Input Module from the Mark VIe Series. This module was manufactured by GE Energy. The IS230STCIH6A is comprised of an STCI terminal board and a PDIA I/O pack.

IS230STCIH6A Specifications

The IS230STCIH6A accepts 24 contact inputs and has a nominal power excitation of 125 V dc. The threshold voltage is 50% of the excitation voltage. The inputs have noise suppression features to protect against surge and high frequency noise.

There are several faults that can be detected on the IS230STCIH6A. Some of these faults are:

Loss of communication with I/O board
Loss of contact input excitation voltage
Non responding contact input in test mode

The IS230STCIH6A is designed to be DIN rail mounted.

Reviews For IS230STCIH6A

Internal Review

(5.0)

The IS230STCIH6A includes an onboard ID chip that allows the I/O pack to identify the board for compatibility purposes. If a mismatch occurs, the I/O pack will create a hardware incompatibility fault. The contact inputs are equipped with filters for noise suppression. - AX Control Lead Technician
