The IS230STCIH2A is a Discrete Input Module from the Mark VIe Series manufactured by GE Energy

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230STCIH2A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230STCIH2A
SKU: GBTC-58815

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230STCIH2A Technical Specifications

Part Number	IS230STCIH2A
Product Type	Discrete Input Module
Manufacturer	GE Energy
Series	Mark VIe
I/O Product Redundancy	Simplex I/O Pack Redundancy
Signals Processed	Discrete Input Signals
Assembly Rarity	Common; IS230
V Dc Rating	24 V dc
IS230STCIH2A Unique Rev Table	One A-Rated Functional Revision
Mark VIe Grouping	Second Mark VIe Series Group

About the IS230STCIH2A

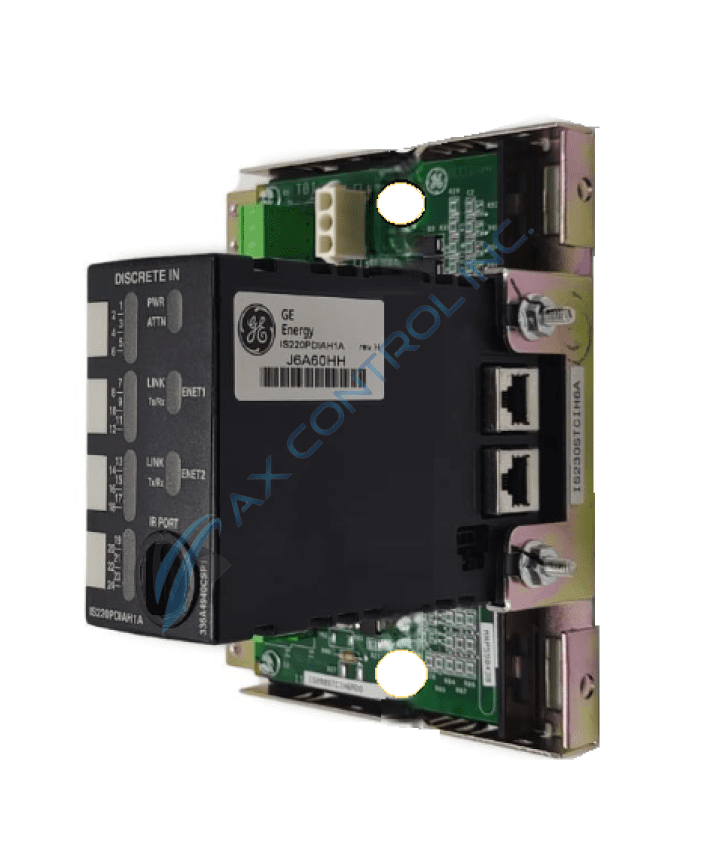

The IS230STCIH2A is a Discrete Input Module from the Mark VIe Series. This module was manufactured by GE Energy. The IS230STCIH2A is comprised of the STCI terminal board and the PDIA I/O pack.

IS230STCIH2A Specifications

The IS230STCIH2A accepts 24 contact inputs that are supplied with 24 V dc excitation from an external source. The IS230STCIH2A also has 52 terminals that are pluggable.

The IS230STCIH2A has several types of fault detection for the terminal board. These are:

Non-responding contact input in test mode
Loss of contact input excitation voltage
Unplugged cable or loss of communication with I/O board

Frequently Asked Questions about IS230STCIH2A

Does the IS230STCIH2A have filters for noise?

Yes, the IS230STCIH2A have filters to reduce high frequency noise and suppressing surge on each input near the point of signal entry.

Where does the I/O pack plug into on the IS230STCIH2A?

The I/O pack plugs into the D-type connector on the STCI terminal board to create the IS230STCIH2A module.

Reviews For IS230STCIH2A

Internal Review

(4.0)

The IS230STCIH2A has a nominal excitation voltage of 24 V dc, which is lower than some of the other STCI modules. The PDIA I/O pack does perform periodic tests on the contact inputs, which will help in determining if any of the inputs is failing. This is a test that happens in addition to the contact excitation voltage monitoring. - AX Control Lead Technician
