The IS230STAIH2A is an Analog I/O Module from the Mark VIe Series manufactured by GE Energy

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230STAIH2A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230STAIH2A
SKU: GBTC-58789

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230STAIH2A Technical Specifications

Manufacturer	GE Energy
Series	Mark VIe
Part Number	IS230STAIH2A
Product Type	Analog I/O Module
I/O Pack Redundancy	Simplex
Sister Module	IS230SNAIH2A
Primary Functional Revision	A-rated
I/O Packs Indicated	PAIC
Terminal Board	STAI

About the IS230STAIH2A

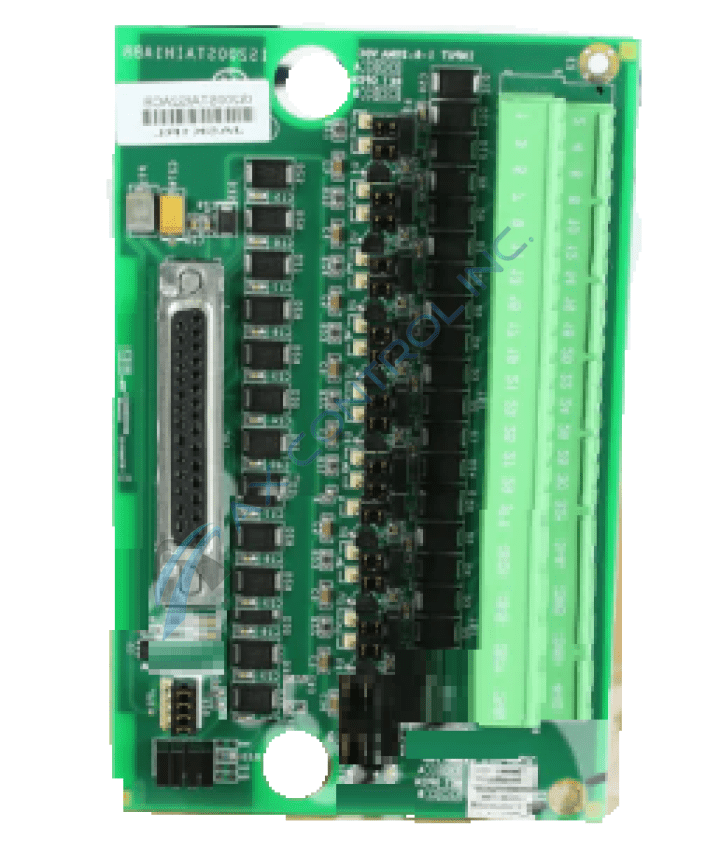

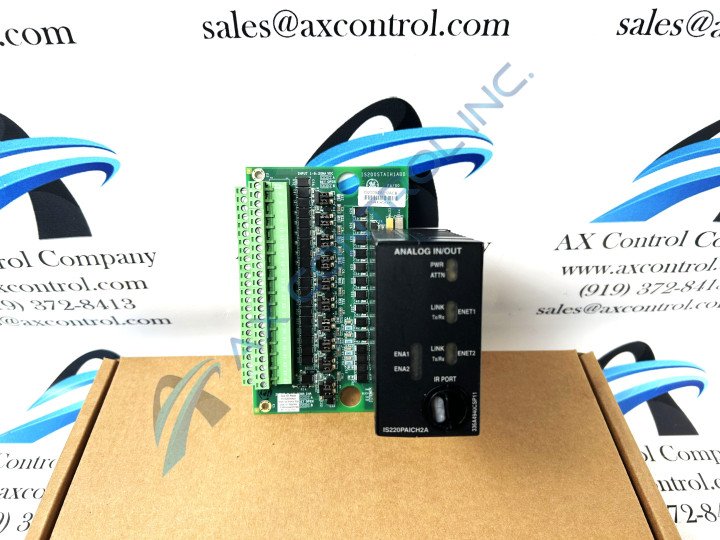

The IS230STAIH2A is an Analog I/O Module from the Mark VIe Series. This module was manufactured by GE Energy. The IS230STAIH2A is made up of the STAI terminal board and a PAIC I/O pack. The IS230STAIH2A accepts 10 analog inputs and 2 analog outputs.

IS230STAIH2A Specifications

The IS230STAIH2A has 48 terminals that are high density Euro style box terminal blocks. The inputs on the IS230STAIH2A have noise suppression circuitry. This circuitry protects the inputs from:

Surge
High frequency noise

The 2 analog outputs both have current ratings of 0-20 mA. When connected to the PAICH2, one of the analog outputs can be configured to 0-200 mA using a jumper. There is 24 V dc power available on the STAI terminal board.

Frequently Asked Questions about IS230STAIH2A

Is there a diagnostic test to determine if one of the outputs from the IS230STAIH2A goes unhealthy?

Yes, there is a diagnostic test for the outputs from the IS230STAIH2A. The PAIC pack will send a fault if any of the outputs goes bad.

How many total channels does the IS230STAIH2A have?

The IS230STAIH2A has 12 total channels, which are made up of 10 analog inputs and 2 analog outputs.

Reviews For IS230STAIH2A

Internal Review

(5.0)

The IS230STAIH2A allows for a connections to a number of types of transmitters. These transmitters include both 2 and 3 wire transmitters. The IS230STAIH2A can be configured using jumpers on the STAI terminal board. Some of these jumpers can allow for a selection of either current input or voltage input. - AX Control Lead Technician
