IS230SRLYH2A

4.50 (2)
Click a star to rate this product

4.50 (2)
Click a star to rate this product

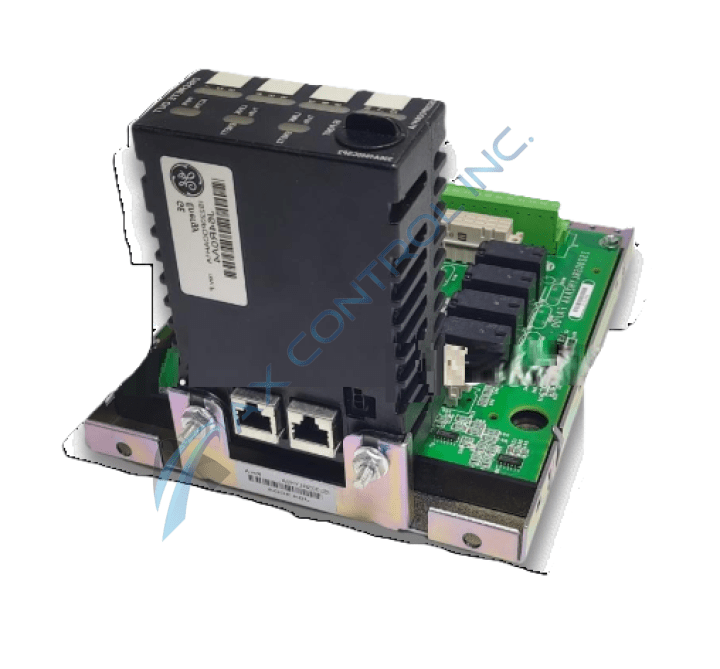

The IS230SRLYH2A is a Simplex Discrete Relay Output Module from the Mark VIe Series by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230SRLYH2A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230SRLYH2A
SKU: GBTC-58860

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230SRLYH2A Technical Specifications

Part Number	IS230SRLYH2A
Product Type	Discrete Output Module
Manufacturer	GE Energy
Series	Mark VIe
Functional Revision	A-Rated Functional Primary
Mark VIe/VIeS Grouping	Group Two
IS230SRLYH2A Mounting Hardware	Attached Bracket
IS230SRLYH2A I/O Redundancy	Simplex Redundancy
Personal I/O Pack Attached	One PDOA Pack

About the IS230SRLYH2A

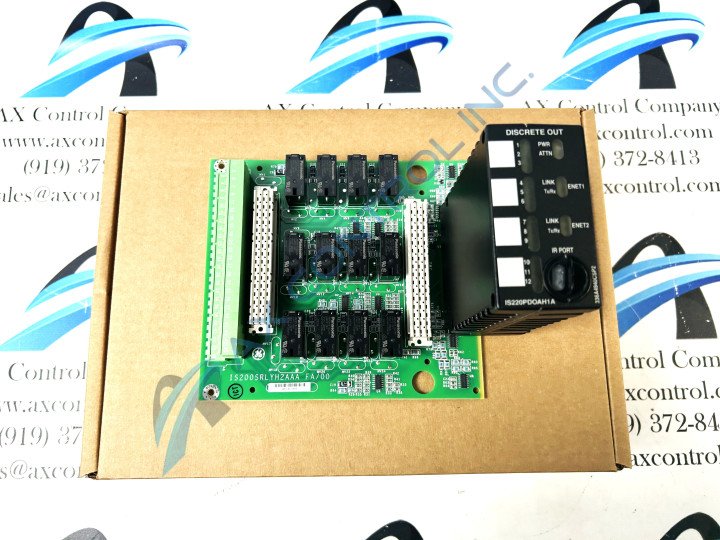

The IS230SRLYH2A is a Simplex Discrete Relay Output Module that was manufactured by GE Energy. This module was manufactured for use in the Mark VIe Series. The IS230SRLYH2A is comprised of the SRLY terminal board and the PDOA I/O pack.

IS230SRLYH2A Specifications

The IS230SRLYH2A has 12 form C relay output circuits. These output circuits are through 48 terminals. Each relay on the IS230SRLYH2A uses an isolated contact pair as position feedback to the PDOA pack.

The IS230SRLYH2A has two connectors that allow for option board connections. These connectors are:

JW1
JW2

The IS230SRLYH2A has pluggable Euro style box-type terminal blocks.

Frequently Asked Questions about IS230SRLYH2A

Which option boards does the IS230SRLYH2A work with?

The IS230SRLYH2A works with the WROB, WROG, WROG, and WROH option boards.

What version of the PDOA pack does the IS230SRLYH2A work with?

The IS230SRLYH2A works with all versions of the PDOA pack, as the IS200SRLY board is compatible with all versions.

Reviews For IS230SRLYH2A

Internal Review

(5.0)

The IS230SRLYH2A is compatible with several types of option boards, including the WROH board. The WROH board distributes power from an input connector to each relay through fuses on positive and return lines. This board can only be used if the IS230SRLYH2A is using the PDOAH1B I/O pack. - AX Control Lead Technician
