IS230SNRLH2A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
The IS230SNRLH2A is a Discrete Output Module from the Mark VIe Series manufactured by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a IS230SNRLH2A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS230SNRLH2A
  • SKU: GBTC-58861
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VIe & Mark VIeS Control Systems

IS230SNRLH2A Technical Specifications

Part Number IS230SNRLH2A
Product Type Discrete Output Module
Manufacturer GE Energy
Series Mark VIe
I/O Pack Redundancy Simplex Redundancy
I/O Packs Impacted PDOA Pack
Base Product Mounting DIN Rail
Warranty Protection Guaranteed
Terminal Board IS200SRLY
A-Rated Revision Functional Rev
Input Signal Style Discrete

About the IS230SNRLH2A

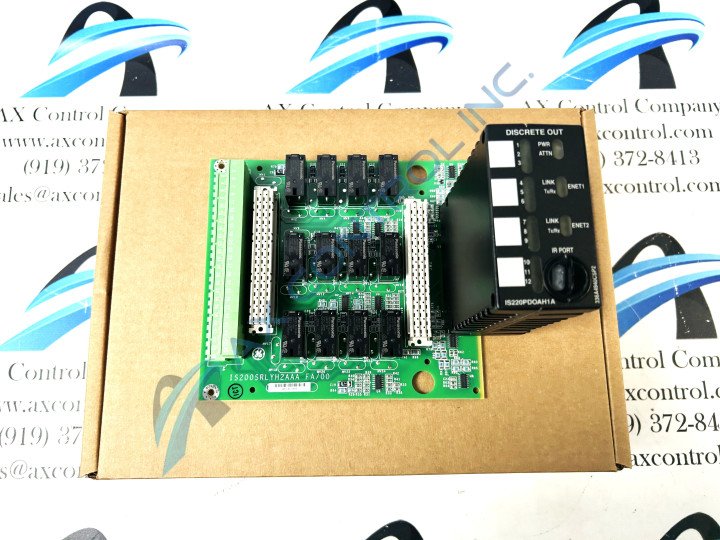

The IS230SNRLH2A is a Discrete Output Module from the Mark VIe Series. This module was manufactured by GE Energy. The IS230SNRLH2A is made up of IS200SRLY board and a PDOA I/O pack.

IS230SNRLH2A Specifications

The IS230SNRLH2A has 12 form C relay output circuits through its 48 terminals. The IS230SNRLH2A can be used with several types of option boards. These option boards are:

  • IS200WROB
  • IS200WROF
  • IS200WROG

These option boards provide different options for the IS230SNRLH2A. The WROF board puts a single fuse in series with each relay common connection. Fuse voltage feedback is also included.

The IS230SNRLH2A has pluggable type terminals and has connectors for the option board connections.

Frequently Asked Questions about IS230SNRLH2A

What does the WROG board do for the IS230SNRLH2A?

The WROG board distributes power from an input connector to each relay through a single fuse.

What is the incoming wetting voltage for the IS230SNRLH2A when using the option boards?

The incoming wetting voltage can either be ac or dc when using the option boards with the IS230SNRLH2A.

Reviews For IS230SNRLH2A

Internal Review
(5.0)

The IS230SNRLH2A is designed to be used with multiple types of option boards, which allow for more functionalities of the module. These boards are easy to attach onto the SRLY terminal board. The PDOA pack also attaches to the SRLY terminal board. - AX Control Lead Technician
