What is the threshold voltage of the excitation voltage for the IS230SNCIH6A?

The IS230SNCIH6A has a threshold voltage of 50% of the excitation voltage.

How many terminals does the IS230SNCIH6A have?

The IS230SNCIH6A has 52 terminals that allow for connections.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home GE Boards & Turbine Control Mark VIe & Mark VIeS Control Systems IS230SNCIH6A

❮

❯

About | Product Specifications | FAQs

IS230SNCIH6A

4.93 (15)
Click a star to rate this product

4.93 (15)
Click a star to rate this product

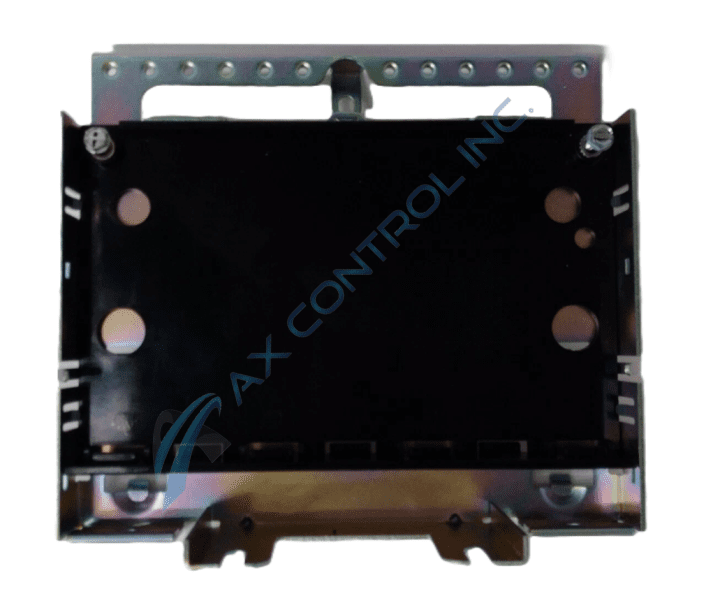

The IS230SNCIH6A is a Contact Input Module from the Mark VIe Series that was manufactured by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230SNCIH6A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230SNCIH6A
SKU: GBTC-58822

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230SNCIH6A Technical Specifications

Part Number	IS230SNCIH6A
Product Type	Contact Input Module
Manufacturer	GE Energy
Series	Mark VIe
Redundancy (I/O Pack)	Simplex
I/O Packs Included	PDIA
Input	Discrete Signals
IS230SNCIH6A V DC	125 V DC

About the IS230SNCIH6A

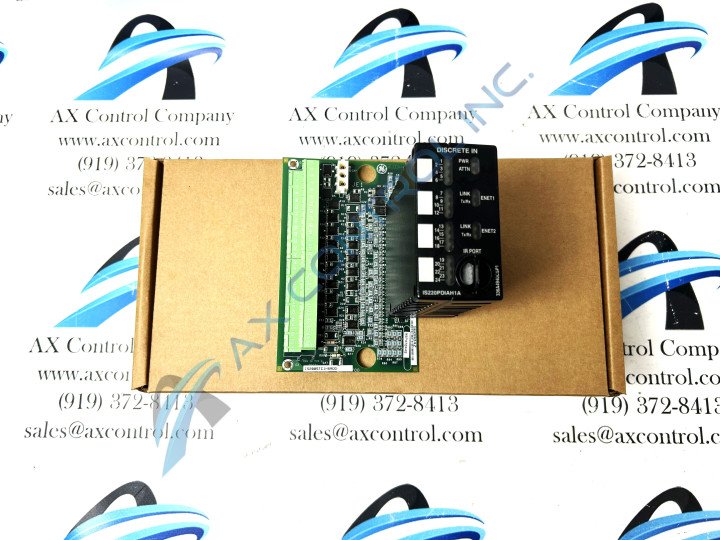

The IS230SNCIH6A is a Contact Input Module that was manufactured by GE Energy for use in the Mark VIe Series. The IS230SNCIH6A is made up of an IS200STCI terminal board and a PDIA I/O pack. The I/O pack connects to the board using the D-type connector.

IS230SNCIH6A Specifications

The IS230SNCIH6A accepts 24 contact inputs and has a nominal excitation rating of 125 V dc. This excitation is gained from an external source. The contact inputs have noise suppression features that allow for limitation of surge and high frequency noise.

The IS230SNCIH6A does have some limitations. Some of these are:

Its non configurable status
its possible use in Simplex systems only

The I/O pack does offer some diagnostic features, including an ID check to ensure the right terminal board is being used in the module.

Reviews For IS230SNCIH6A

Internal Review

(5.0)

The IS230SNCIH6A is a step up from the IS230SNCIH4A with its nominal excitation voltage being 125 V dc, rather than 48 V dc. The IS230SNCIH6A can accept the standard 24 inputs from the STCI terminal board. This module is compact, making installation easy for users. - AX Control Lead Technician
