About the IS230SNCIH4A

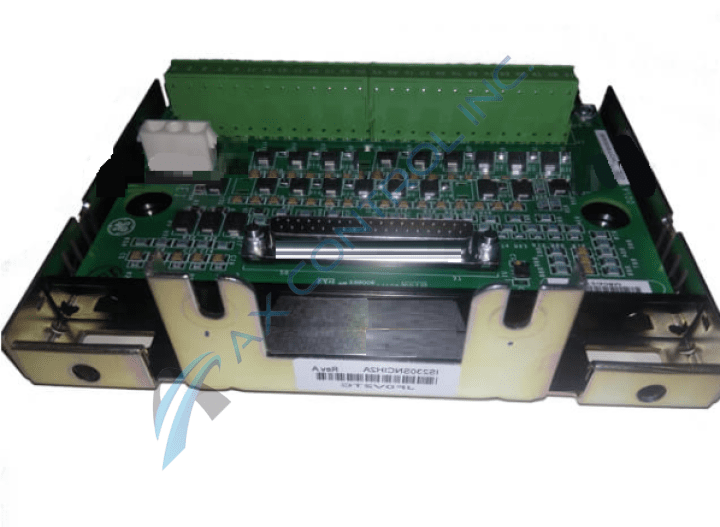

The IS230SNCIH4A is a Contact Input Module from the Mark VIe Series. This module was manufactured by GE Energy. The IS230SNCIH4A is made up of an STCI terminal board and a PDIA I/O pack.
IS230SNCIH4A Specifications
The IS230SNCIH4A supports 24 contact inputs from the IS200STCI board and has a nominal excitation rating of 48 V dc. The excitation range is from 32 V dc to 64 V dc. The IS230SNCIH4A has 52 terminals that are on pluggable terminal blocks.
The contact inputs have noise suppression which protects against two types of noise. These noises are:
- Surge noise
- High frequency noise
The I/O processor is able to provide several diagnostic tests for the module, which ensures users will know if the module has a fault or not.
