The IS230SAIIH2A is a Simplex Analog Input Module that was manufactured by GE Energy for the Mark VIe Series

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a IS230SAIIH2A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS230SAIIH2A
  • SKU: GBTC-58793
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VIe & Mark VIeS Control Systems

IS230SAIIH2A Technical Specifications

Part Number IS230SAIIH2A
Product Type Simplex Analog Input Module
Manufacturer GE Energy
Series Mark VIe
Personal Product I/O Pack Redundancy Simplex Redundancy
Mark Series Terminal Board Corresponding IS200SAII
Mark Mounting Strategy DIN Rail Surface Mounting
Revision Rarity Common

About the IS230SAIIH2A

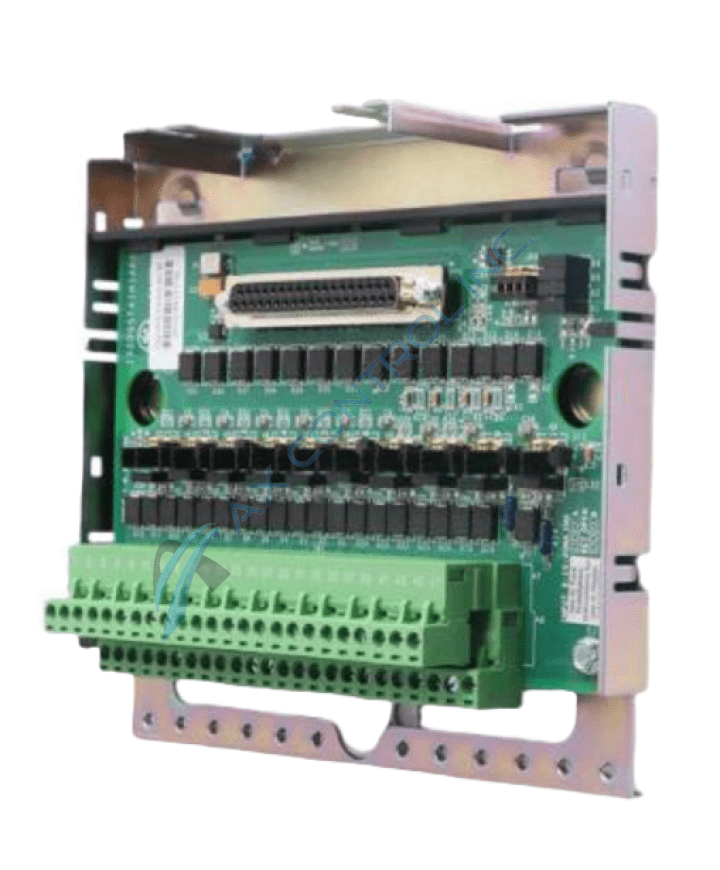

The IS230SAIIH2A is a Simplex Analog Input module that was manufactured by GE Energy for use in the Mark VIe Series of turbine controls. The IS230SAIIH2A is made up of the IS200SAII terminal board and a PAIC I/O pack.

IS230SAIIH2A Specifications

The terminal board offers 10 analog inputs and two analog outputs, while also allowing for a connection with the PAIC pack. The PAIC pack plugs into the D-type connector. This pack communicates with the controller over Ethernet.

The IS200SAII board can accommodate several types of transmitters using the analog inputs. These transmitters are:

  • 2-wire transmitters
  • 3-wire transmitters
  • 4-wire transmitters
  • externally powered transmitters

The IS230SAIIH2A is not compatible with the YAIC pack.

Frequently Asked Questions about IS230SAIIH2A

How many teminals does the IS230SAIIH2A have?

The IS230SAIIH2A has 48 terminals.

How many total channels does the IS230SAIIH2A offer?

The IS230SAIIH2A offers 12 total channels, with 10 analog inputs and 2 analog outputs.

Reviews For IS230SAIIH2A

Internal Review
(5.0)

The IS230SAIIH2A offers several diagnostic tests on its terminal board that allow for users to know the status of the board. One of these tests allows the I/O processor to have a diagnostic alarm if either of the two outputs is unhealthy. Each analog input has an isolator with a rating of 1500 V rms. - AX Control Lead Technician
