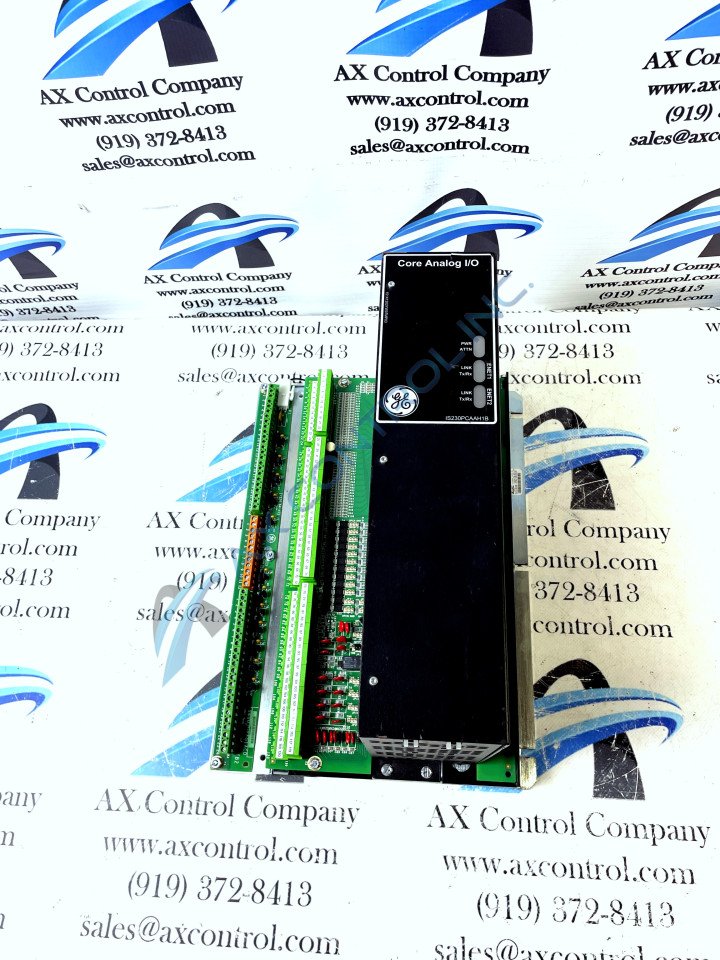

The IS230PCAAH1B is a Core Analog I/O Module from the Mark VIe Series manufactured by GE Energy

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230PCAAH1B to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230PCAAH1B
SKU: GBTC-58813

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230PCAAH1B Technical Specifications

Part Number	IS230PCAAH1B
Product Type	Core Analog Module
Manufacturer	GE Energy
Series	Mark VIe
Primary Functional Revision	B-rated
Front-Facing LEDs	3 LEDs
Chassis Type	Vented Chassis Style
Signals Accepted	Analog Input and Output Signals
Warranty Status	Protected
Analog Function	Core Analog
Thermocouple Types	E, J, K, T, S

About the IS230PCAAH1B

The IS230PCAAH1B is a Core Analog I/O Module that was manufactured by GE Energy. This module is part of the Mark VIe Series of Gas Turbine Controls. The IS230PCAAH1B makes up a large portion of the analog signal inputs and outputs required to operation a gas turbine. The IS230PCAAH1B contains a BPPC processor board, along with two application I/O boards, and a TCAS terminal board. There is also an optional TCAT terminal board that can be used.

Input to the IS230PCAAH1B is through dual RJ-45 Ethernet connectors, in addition to a 28 V dc power connector. There are 120 Euro style box type terminal blocks that allow for field device I/O. These terminal blocks are found on the edge of the IS230PCAAH1B.

The IS230PCAAH1B has a variety of terminals. Some of the terminals are:

Analog 4-20 mA outputs
LVDT Excitation outputs
TTL pulse inputs + power

Signals on the IS230PCAAH1B are separated into two different groups. Signal inputs that can be fanned from a single input into a simplex or TMR application are routed through the TCAT terminal board. Signals that are designed for a single PCAA module are wired to the terminals on the PCAA.

Frequently Asked Questions about IS230PCAAH1B

What does the optional TCAT board provide for the IS230PCAAH1B?

The optional TCAT board will provide extra signal types for the IS230PCAAH1B. Some of these are fanned seismic inputs, fanned analog 4-20 mA inputs, and fanned LVDT feedback.

What are the application boards used in the IS230PCAAH1B?

The BCAA and BCAB are used in the IS230PCAAH1B as analog application boards.

Reviews For IS230PCAAH1B

Internal Review

(5.0)

The IS230PCAAH1B has self diagnostic tests, which allow for users to know the status of the module when needed. One of these tests includes a power-up self test that checks the RAM, flash memory, Ethernet ports, and much of the processor board hardware. The IS230PCAAH1B also has continuous monitoring of the internal power supplies. - AX Control Lead Technician
