IS230PCAAH1A

4.92 (13)
Click a star to rate this product

4.92 (13)
Click a star to rate this product

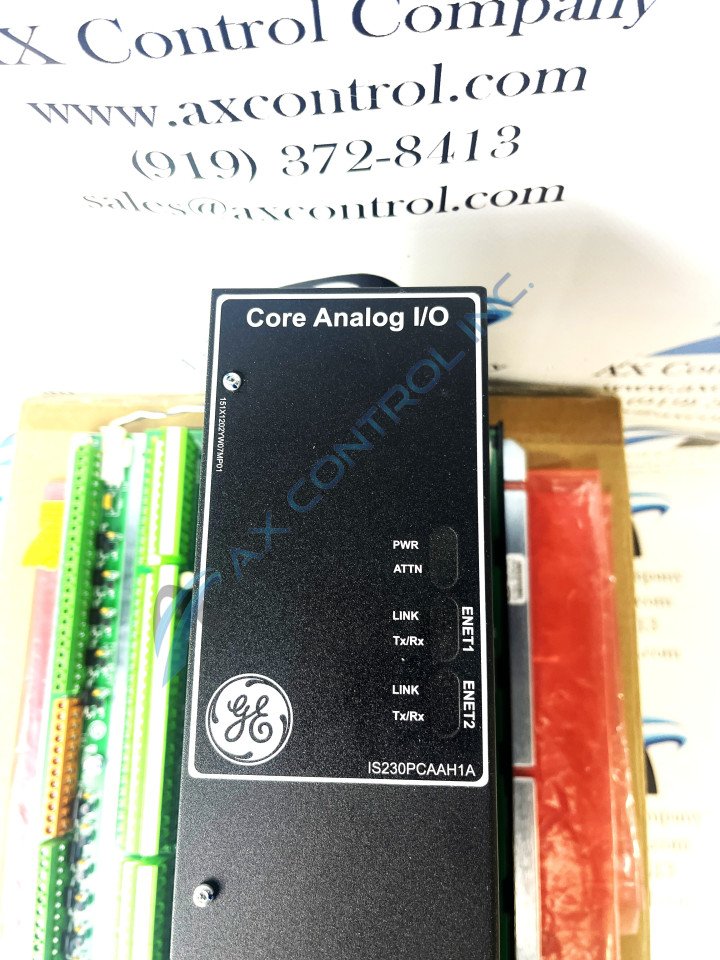

The IS230PCAAH1A is a Core Analog Module from the Mark VIe Series by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230PCAAH1A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230PCAAH1A
SKU: GBTC-58812

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230PCAAH1A Technical Specifications

Part Number	IS230PCAAH1A
Product Type	Core Analog Module
Manufacturer	GE Energy
Series	Mark VIe
DIN Rail Installation Hardware	NOT Included
Mounting Strategy	Non DIN-Rail Modular
Terminal Board	TCAS
Signal Type	Input and Output Signals

About the IS230PCAAH1A

The IS230PCAAH1A is a Core Analog Module from the Mark VIe Series that was manufactured by GE Energy. The IS230PCAAH1A is designed to provide a large portion of the analog signal I/O required to operate a gas turbine. There are optional terminal boards associated with the IS230PCAAH1A. These are the TCAT terminal boards.

The PCAA module contains several boards that are necessary for proper functioning. The IS230PCAAH1A contains a BPPB processor board, two application I/O boards, and a TCAS terminal board.

The IS230PCAAH1A has a variety of signal types. Some of these are:

Thermocouples
Analog 4-20 mA inputs
+/- 12 V power output
Servo coil driver outputs

The IS230PCAAH1A can be used in simplex or TMR applications.

Frequently Asked Questions about IS230PCAAH1A

How does the IS230PCAAH1A get input?

Input to the IS230PCAAH1A is through dual RJ-45 Ethernet connectors and a 28 V dc power connector.

Is the TCAT board optional for simplex applications when used with the IS230PCAAH1A?

Yes, the TCAT board is an optional addition for the IS230PCAAH1A module when in a simplex application.

Reviews For IS230PCAAH1A

Internal Review

(5.0)

The IS230PCAAH1A supports a number of thermocouples, which are the E, J, K, T, and S thermocouples. These thermocouples can also be used in wide temperature ranges, which allows a greater amount of flexibility for use. There is one cold junction provided with the IS230PCAAH1A. - AX Control Lead Technician
