The IS230JPDGH1B is a Core Power Distribution Module from the Mark VIe Series manufactured by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230JPDGH1B to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230JPDGH1B
SKU: GBTC-58878

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230JPDGH1B Technical Specifications

Part Number	IS230JPDGH1B
Product Type	Core Power Distribution Module
Manufacturer	GE Energy
Series	Mark VIe
Power Current	Direct Current
I/O Packs Involved	PPDA Pack
Power Supplies	Dual DC Supplies
Revision Table	Sole B-Rated

About the IS230JPDGH1B

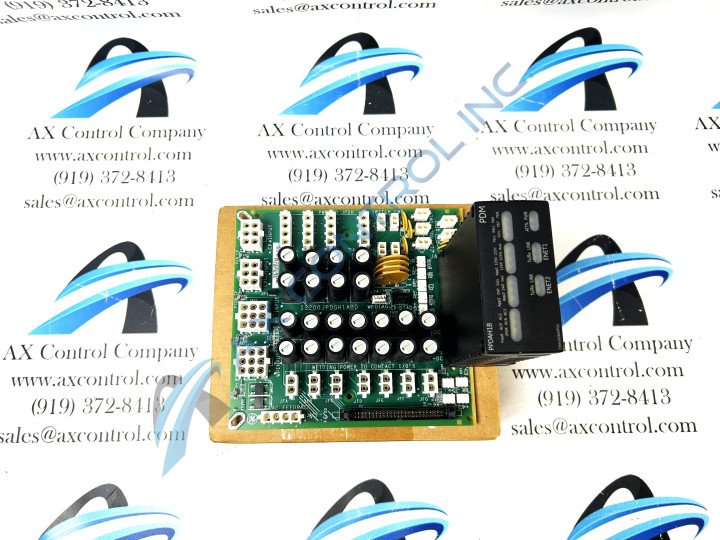

The IS230JPDGH1B is a Core Power Distribution Module from the Mark VIe Series. This module was manufactured by GE Energy. The IS230JPDGH1B is made up of an IS200JPDG Power Distribution Board, a PPDA I/O pack, and a metal bracket for mounting.

IS230JPDGH1B Specifications

The IS230JPDGH1B is designed to provide power distribution of 28 V dc control power and 48 V dc/ 24 V dc wetting power to boards within the control system. The module also provide sensing circuitry for two channels of ac distribution. The 28 V dc section can accept two separate power supply inputs through external diodes.

The PPDA pack mounts onto the IS200JPDG board. The addition of the PPDA pack allows the IS230JPDGH1B to be integrated into the PDM system feedback. Because the PPDA pack is mounted onto the module, diagnostic signals from the JPDG do not need to be transmitted to other power distribution boards.

The module supports a number of auxiliary boards. These boards are:

JPDB1
JPDF1/2
JPDE1

Frequently Asked Questions about IS230JPDGH1B

Can more than one JPDE board be used with the IS230JPDGH1B?

No, only one JPDE can be used with the JPDG. Two of these boards are not allowed with the JPDG in the power distribution scheme.

Does the IS230JPDGH1B provide voltage feedback?

Yes, the IS230JPDGH1B provides voltage feedback through the PPDA pack to detect system ground faults.

Reviews For IS230JPDGH1B

Internal Review

(5.0)

The IS230JPDGH1B is an important power distribution system that provides power to a number of auxiliary boards. The IS200JPDG board on the IS230JPDGH1B provides sensing and diagnostics for two ac signals, which are distributed outside the board. This is an important addition to the module. - AX Control Lead Technician
