The IS230JPDGH1A is a Core Power Distribution Module from the Mark VIe Series manufactured by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230JPDGH1A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230JPDGH1A
SKU: GBTC-58877

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230JPDGH1A Technical Specifications

Part Number	IS230JPDGH1A
Product Type	Core Power Distribution Module
Manufacturer	GE Energy
Series	Mark VIe
Compatible Board	IS200JPDG
Compatible I/O Pack	PPDA Pack
Control Power Distribution	28 V dc
Assembly Type	IS230 Modular

About the IS230JPDGH1A

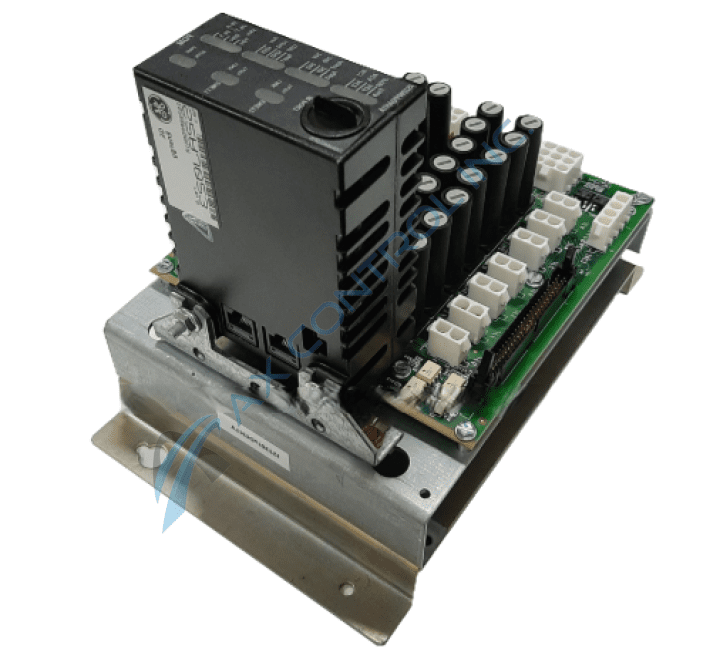

The IS230JPDGH1A is a Core Power Distribution Module that was manufactured by GE Energy. This module was designed for the Mark VIe Series. The IS230JPDGH1A is made up of an IS200JPDG board, a PPDA I/O pack, and a metal bracket for mounting.

IS230JPDGH1A Specifications

The IS230JPDGH1A module can distribute 28 V dc of control power and 48 V/ 24 V dc of wetting power to boards within the control system. The IS230JPDGH1A also provides sensing circuitry for two channels of AC distribution.

The IS200JPDG board on the IS230JPDGH1A allows for diagnostic feedback signals to be received from up to three other distribution boards. These signals can be routed to the PPDA I/O pack.

There are a number of distribution boards the IS230JPDGH1A can receive signals from. These are:

JPDE1
JPDF1
JPDF2
JPDB1

Frequently Asked Questions about IS230JPDGH1A

What does the PPDA I/O Pack provide for the IS230JPDGH1A?

With the addition of the PPDA pack, the IS230JPDGH1A is integrated into the PDM system feedback.

Can the IS230JPDGH1A accept two separate power supply inputs?

Yes, the IS230JPDGH1A can accept two separate power supply inputs when the module is used with the IS200JPDG 28 V dc distribution section. This is done through external diodes.

Reviews For IS230JPDGH1A

Internal Review

(5.0)

The IS230JPDGH1A is made up of several components that work as a power distribution system. One of the best features of the IS230JPDGH1A is the set of external diodes that have power supplies for the IS200JPDG board. The board also distributes this dc power to terminal boards and other system loads. - AX Control Lead Technician
