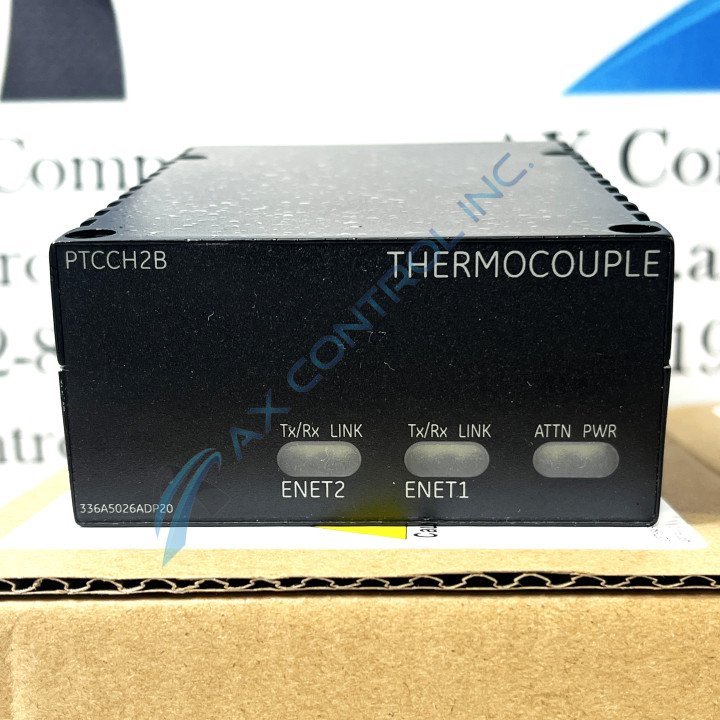

The IS220PTCCH2B is a Thermocouple Input Module from the Mark VIe Series by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS220PTCCH2B to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS220PTCCH2B
SKU: GBTC-58781

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS220PTCCH2B Technical Specifications

Part Number	IS220PTCCH2B
Product Type	Thermocouple Input Module
Manufacturer	GE Energy
Series	Mark VIe
Thermocouple Types	Dual Thermocouple Styles
General Industry Inputs	12
Cold Junction Input	1 Input
External Power Requirement	28 V dc

About the IS220PTCCH2B

The IS220PTCCH2B is a Thermocouple Input module from the Mark VIe series. This module was manufactured by GE Energy. This pack is designed to act as an electrical interface between up to two I/O Ethernet networks and a thermocouple input terminal board.

The IS220PTCCH2B has multiple components related to its thermocouple product type. These are:

12 Input Thermocouples
1 Cold Junction Thermocouple

IS220PTCCH2B Specifications

The IS220PTCCH2B has a processor board that is common to all I/O packs from the Mark VIe Series. A more specialized acquisition board is also found in the IS220PTCCH2B. This board is specific to the thermocouple input function.

The IS220PTCCH2B supports a variety of standard thermocouple and mV inputs. These are:

Thermocouple E
Thermocouple J
Thermocouple K
Thermocouple S
Thermocouple T
Thermocouple B
Thermocouple N
Thermocouple R

The IS220PTCCH2B has an mV span of -20mV to +95mV.

Frequently Asked Questions about IS220PTCCH2B

Can the IS220PTCCH2B have more 12 inputs?

Yes, the IS220PTCCH2B can have more than 12 inputs when paired with another PTCC pack. With two PTCC packs, there can be a total of 24 inputs.

What terminal boards can the IS220PTCCH2B work with?

The IS220PTCCH2B can work with the TBTC and STTC thermocouple input terminal boards.
