Does the IS220PTCCH1B perform self diagnostic tests?

Yes, the IS220PTCCH1B performs self diagnostic tests, including a power-up self test. This tests the RAM, flash memory, and Ethernet ports.

What is the mV span of the IS220PTCCH1B?

The mV span of the IS220PTCCH1B is -8mV to +45mV.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home GE Boards & Turbine Control Mark VIe & Mark VIeS Control Systems IS220PTCCH1B

❮

❯

About | Product Specifications | FAQs

IS220PTCCH1B

4.93 (14)
Click a star to rate this product

4.93 (14)
Click a star to rate this product

The IS220PTCCH1B is a Thermocouple Input Module from GE Energy for the Mark VIe Series

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS220PTCCH1B to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS220PTCCH1B
SKU: GBTC-58779

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS220PTCCH1B Technical Specifications

Part Number	IS220PTCCH1B
Product Type	Thermocouple Input Module
Manufacturer	GE Energy
Series	Mark VIe Series
Product Status	Pack Assembly
Total Accessory Boards	Four Boards
Accessory Boards	IS200STTCH1A, IS200STTCH2A IS200TBTCH1B, IS200TBTCH1C
Assembly Type	IS220 Typical Modular

About the IS220PTCCH1B

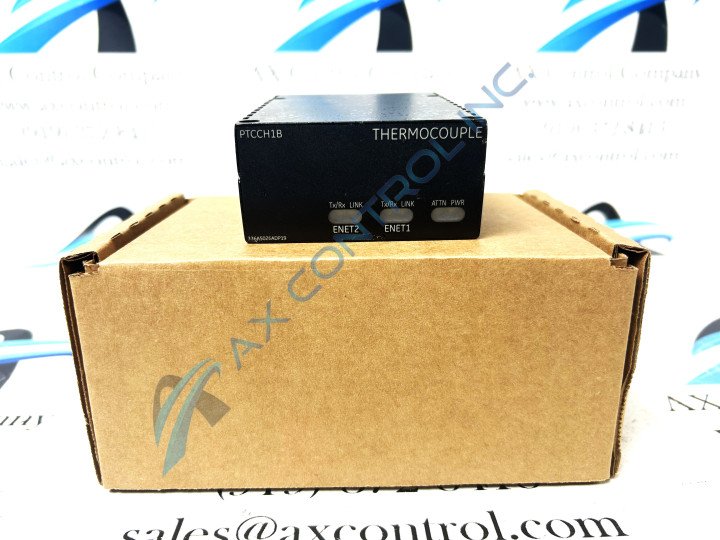

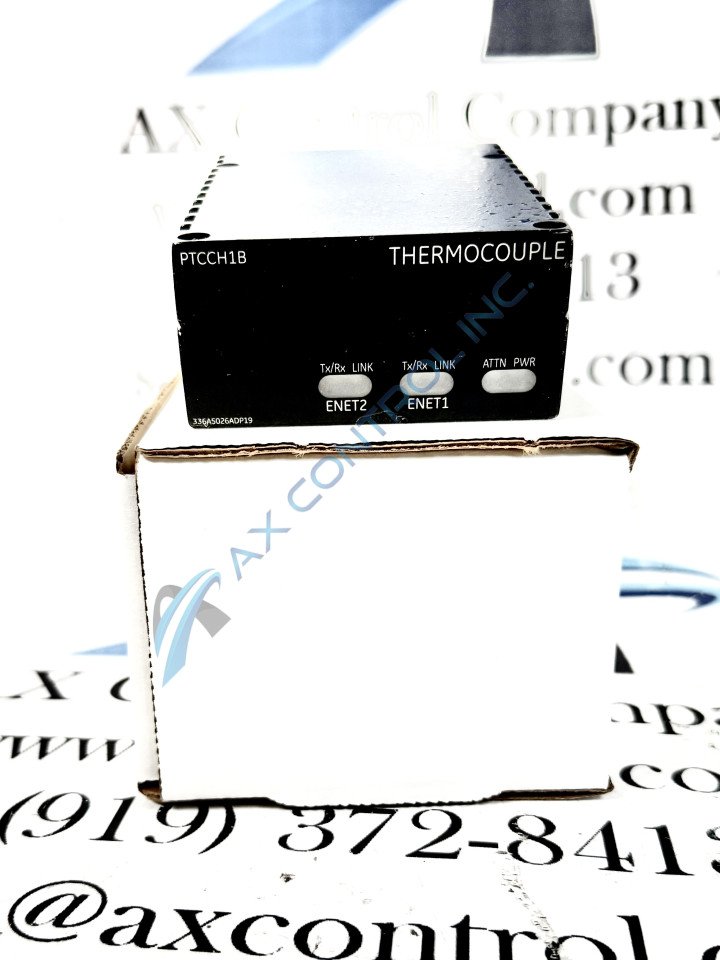

The IS220PTCCH1B is a Thermocouple Input Module that was manufactured by GE Energy for use in the Mark VIe Series. The IS220PTCCH1B acts as an electrical interface between up to two I/O Ethernet networks and a thermocouple input terminal board.

IS220PTCCH1B Specifications

The IS220PTCCH1B is capable of handling up to 12 thermocouple inputs, but there are options to accept more inputs. Two packs can be connected to the TBTCH1C to allow for 24 inputs, which happens in a dual configuration. There can also be a TMR mode, but only 12 inputs are accepted in this mode.

The IS220PTCCH1B is compatible with the TBTC thermocouple input terminal board. The pack is also compatible with the STTC board.

The IS220PTCCH1B works with a variety of thermocouples. These are:

Thermocouple E
Thermocouple J
Thermocouple K
Thermocouple S
Thermocouple T

Reviews For IS220PTCCH1B

Internal Review

(5.0)

The IS220PTCCH1B can have grounded or ungrounded thermocouple inputs that make this a flexible pack. The IS220PTCCH1B can be used in simplex, dual, and TMR operating modes. This allows users to have their choice of the number of packs used and the number of inputs accepted. - AX Control Lead Technician
