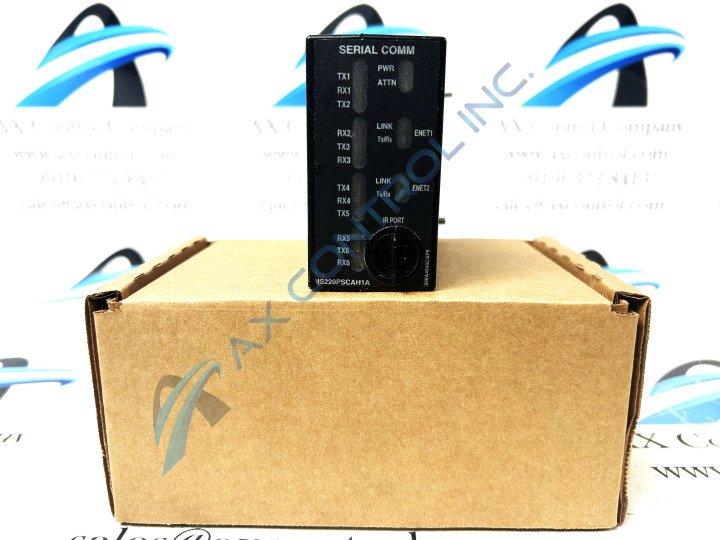

General Electric Serial Modbus Communication Interface Pack IS220PSCAH1A is an I/O pack that has six configurable serial channels which support several ports. The ports that are used with the IS220PSCAH1A pack are the RS422, RS485 half-duplex, and RS232 ports.

New Surplus Factory Package
SKU: 39MVMVCS1
3 Year Warranty
New Surplus AX Control Package
SKU: 39MVMVCS2
3 Year Warranty
Reconditioned
SKU: 39MVMVCS3
3 Year Warranty
Repair
$1815
SKU: 39MVMVCS4
3 Year Warranty

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

Product Description

The IS220PSCAH1A I/O pack is used for Serial Modbus Communication. The pack was designed for the Mark VIeS control system by General Electric. When this pack is being used it can provide interfacing between up to two input-output Ethernet networks and a serial communications board. This board has six individually configurable serial transceiver channels which can be used with RS485 half-duplex, RS232, and RS422 standards. The input needed to provide power to the PSCA pack is sent through a three-pin power input and dual RJ45 Ethernet connectors.

There is a Serial Modbus Master Service on the IS220PSCAH1A pack that has a number of different features, some of which are as follows:

  • RTU

  • Data Bits: seven, eight

  • 32-bit data Word ordering

  • Parity: even, none, odd

  • Station addresses

These features are used for the six configurable ports on the PSCA pack. The configurations can be done at the port level. With the PSCA the two Ethernet ports on the pack can be used to help support Ethernet Modbus Master Protocols; please note that this configuration can only occur when being used on a simplex network.

The IS220PSCAH1A pack has the ability to perform self-diagnostic tests, one of which is monitoring the analog inputs which monitor position and pressure to check the configurable high and low levels. The limits are used for enabling and disabling functions, latching/non-latching, and as well as generate alarms. Some of the alarms that could potentially come up are 32-67, 114-119, 108-113, and 72-107. All of these alarms indicate different errors.

The best manuals to use with this pack are the two volumes of the GEH-6855 manual as well as the GEH-66725 Mark VIe and VIeS Controls Equipment HazLoc manual. All of these manuals provide extensive information on the IS220PSCAH1A pack.

IS220PSCAH1A Technical Specifications

Technology Surface-Mount
Power 24/28 VDC
Part Number IS220PSCAH1A
Model Type Serial Modbus Communication I/O Pack
Model Number IS220PSCAH1A
Manufacturer GE Industrial
Ambient Temperature Range -40 to 158 ºF
Functional Acronym/Abbreviation PSCA
Dimensions H 3.25" in x W 1.65 in x D 4.78 in
Cable Distance for RS232 Mode 50 ft (15 m)
Baud Rate for Master Service 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, and 115200
