IS220PPDAH1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.93 (14)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.93 (14)
  • Click a star to rate this product

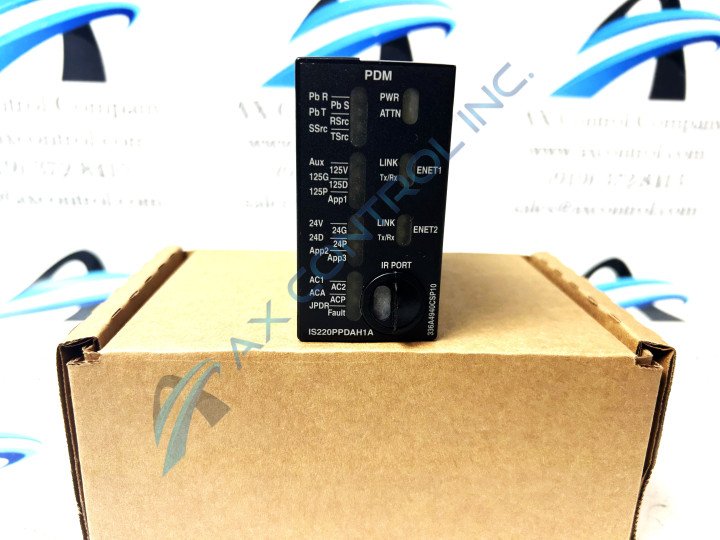

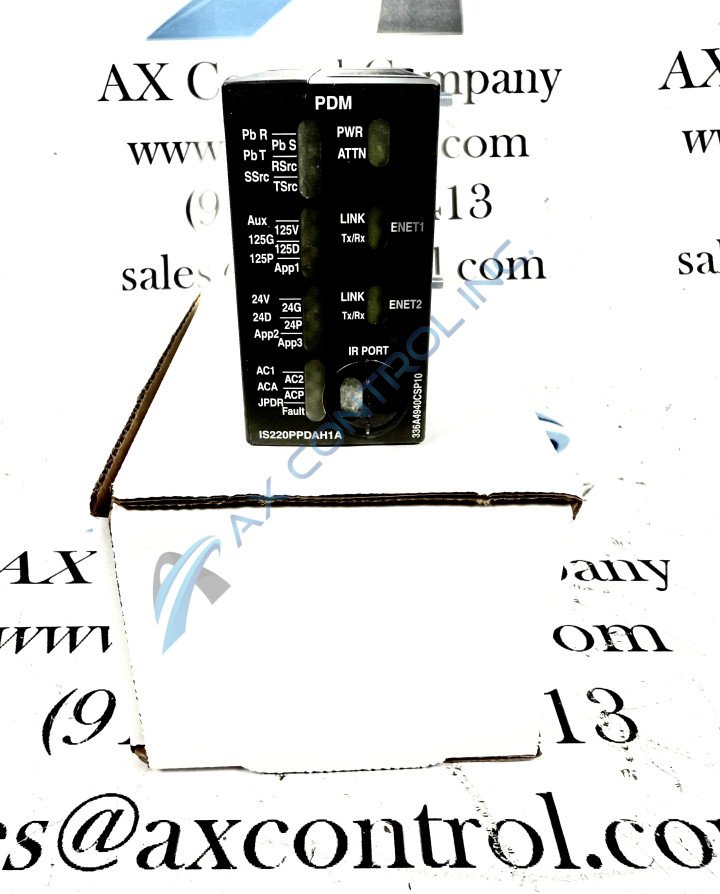

The IS220PPDAH1A Power Distribution System Feedback Unit

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS220PPDAH1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS220PPDAH1A
  • SKU: GBTC-54223
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VIe & Mark VIeS Control Systems

IS220PPDAH1A Technical Specifications

Location Power Distribution Module
Quantity of Analog Inputs Five
Part Number IS220PPDAH1A
Manual GEH-6721L
LED Quantity Eight
Functional Acronym/Abbreviation PPDA
Direct Protective Actions None
Board Description Power Distribution Feedback System Pack
Feedback Type System Feedback
PCB Circuit Coating Conformal
Assembly Type IS220 Standard Module

About the IS220PPDAH1A

While lauded for its potential wind turbine setting usages, the Mark VIe Series that this IS220PPDAH1A Power Distribution System Feedback Unit belongs to is also considered an attractive option on the greater general automated industrial marketplace as it is one of the last-developed GE Mark product series to incorporate the patented Speedtronic control system technology across a range of its various product iterations, including this IS220PPDAH1A Power Distribution System Feedback Unit featured here.


Hardware Tips and Specifications

This board is part of the Power Distribution Modules and when in this configuration it will provide feedback for ground fault detection, bulk power supply health, power bus voltages, and branch circuit statuses. This model is able to have complete system feedback and monitoring which separates it from standard methods of power distribution. Please note that although this model provides feedback for branch circuits, the branch circuits do not directly connect to the PPDA pack.

Another key feature of the IS220PPDAH1A board is that it allows for corrective action to occur by sending and reporting information but it cannot take directive protection action. This board supports system maintenance by sending timely information to the PDM. The PPDA board can receive feedback from up to six PDM components, most of these components are JPDx boards and will host the PPDA I/O pack.


IS220PPDAH1A Device Fault Diagnosis

The IS220PPDAH1A board uses electronic IDs to determine power distribution information, the information will then be used to populate the IONet outputs and provide the correct information and feedback to the conjoining boards. Please note that when the IS220PPDAH1A board is used in applications reading two hundred forty volts of alternating current it should not cross-connect with the volts of direct current; when this occurs the peak voltage will exceed the MOV rating and cause a failure. Failures occur as most of the alternating current supplies must operate on a grounded neutral.

As outlined in the various instructional manual materials embedded in the manuals tab above for your convenience of research, this IS220PPDAH1A product does not take direct protective actions when faced with a functional fault or failure; it instead opts to report diagnostic information to respective Mark VIe Series system controllers where the true corrective action should have been pre-programmed.


Frequently Asked Questions about IS220PPDAH1A

How many total power distribution boards input into this IS220PPDAH1A product?

This IS220PPDAH1A device can accept inputs from up to six unique Mark VIe Series power distribution boards.

How does this IS220PPDAH1A module mount in the greater respective Mark VIe Series installation assembly?

This IS220PPDAH1A device is mounted through use of the two screw installation standoffs included on its special modular assembly's exterior.

Reviews For IS220PPDAH1A

Internal Review
(5.0)

The IS220PPDAH1A pack is an optional power diagnostic I/O pack with the Power Distribution Module system. When the pack is used it will mount on a JPDS or JPDG board. While this IS220PPDAH1A device's IS220PPDAH1A functional product number makes a reference to an uncommon conformal style of PCB coating, it is likely that this is merely a reference to this IS220PPDAH1A device' exterior protective chassis, which is only permeated in a few locations through connector ports such as its two recognizable ethernet-style female ports. - AX Control Lead Technician
