IS200SPROS1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.92 (13)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.92 (13)
  • Click a star to rate this product

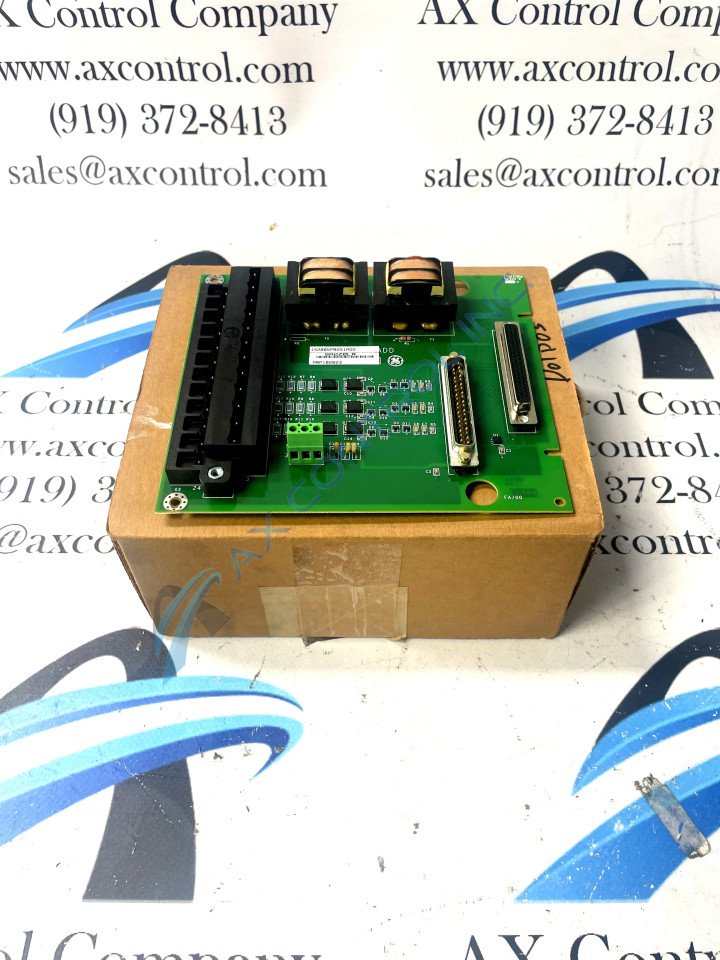

The IS200SPROS1A Terminal Board was manufactured as a member of the Mark VIe Series of turbine control system products. This PCB is modified through its inclusion of a singular, A-rated functional product revision.

AVAILABILITY:

IN STOCK
SHIPS IN 5-7 DAYS

Sell Surplus: Have a IS200SPROS1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200SPROS1A
  • SKU: IS200SPROS1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VIe & Mark VIeS Control Systems

IS200SPROS1A Technical Specifications

Manufacturer GE Energy
Series Mark VIe
Part Number IS200SPROS1A
Functional Acronym SPRO
Functional Description Terminal Board
PCB Coating S-style PCB coating
Functional Revision 1 A

About the IS200SPROS1A

As mentioned above, the IS200SPROS1A Terminal Board was originally designed for production by General Electric, as a member of their Mark VIe Series. This IS200SPROS1A model printed circuit board or PCB for short is actually more specifically definable as a modified version of a pre-existing Mark VIe Series component product; altering the IS200SPROS1 parent printed circuit board through its inclusion of a single functional product revision rated at an A grade. Given this IS200SPROS1A PCB's attribution to the specialized Mark VIe Series; it was likely manufactured by one of General Electrics' subsidiary manufacturers, which include GE Energy, GE Industrial Systems, and more.

Hardware Tips and Specifications

Before examining the individual hardware components that make up the greater assembly of this IS200SPROS1A model Mark VIe Series Terminal Board, it is important to first gain some context with an evaluation of this SPRO-abbreviated printed circuit boards' intended function. Based on originally-developed instructional manual documentation detailing the IS200SPROS1A product; this PCB's primary intended function can be defined in its backup or emergency Turbine Protection application.

With the intended function of the IS200SPROS1A board in mind, it becomes possible to contextualize some of its many intentional hardware selections. A crucial element to this IS200SPROS1A circuit board's emergency turbine protection is inputs and outputs, which quite obviously allow it to act as a terminal board. This IS200SPROS1A PCB makes use of seven total contact inputs and three speed inputs. In terms of this IS200SPROS1A Mark VIe Series printed circuit board's outputs, the SPRO offers three total monitored trip relay output options. All of these inputs and outputs interface with the base circuit board of the IS200SPROS1A PCB through use of its removable, barrier-type terminal blocks. The barrier-type terminal blocks specific to this IS200SPROS1A Terminal Board were discovered upon interpretation of the S1 series grouping tag present in the IS200SPROS1A functional product number.

The IS200SPROS1A functional product number yields an elevated amount of product-specific identificatory information beyond just this model's barrier-type terminal blocks, beginning with its IS200 series tag. This IS200 portion has dual naming conventions for the IS200SPROS1A circuit board; displaying its status as a normal-assembly printed circuit board manufactured in the Salem, Virginia factory location of GE Energy and GE Industrial Systems. Moving past the IS200 Series tag in the IS200SPROS1A product number, the knowledgeable Mark VIe product researcher will notice an inclusion of the SPRO functional acronym; which was developed with the intention as existing as a convenient promotional and conversational shorthand for the lengthy IS200SPROS1A product number. This SPRO acronym itself is followed in the IS200SPROS1A product number, by an inclusion of aforementioned S1 series grouping tag, which also reveals this product's special style of printed circuit board coating. The final alphanumeric digit in the IS200SPROS1A product number relates its singular, A-rated functional revision.

Frequently Asked Questions about IS200SPROS1A

Why is this IS200SPROS1A printed circuit board's A-rated revision classified as functional?

The IS200SPROS1A board's singular, A-rated revision is classified as functional as it makes stark improvements to the overall functionality of the PCB, without sacrificing for aesthetic or durability purposes.

How are this IS200SPROS1A printed circuit board's barrier-type terminal blocks attached to its base circuit board?

The IS200SPROS1A Terminal Board's two terminal blocks are attached to its base circuit board through the use of four total screw connectors; two per each pluggable terminal block.

Is this IS200SPROS1A GE printed Terminal Board available for repair at AX Control?

Yes. Here at AX Control, we recognize the continued importance of offering a complete stock of new and refurbished General Electric printed circuit board stocks for both repair and replacement, including this IS200SPROS1A PCB. This PCB has a standard lead time of one to two weeks upon repair purchase, although this may be affected by the board's generally limited market availability.

Reviews For IS200SPROS1A

Internal Review
(5.0)

This specialized and important IS200SPROS1A General Electric printed circuit board is a strong option to suit you automated industrial needs. To start off, this IS200SPROS1A Mark VIe Series Terminal board features a special S-designated style of printed circuit board protective coating, which should reinforce all of the hardware elements present in this IS200SPROS1A board's normal-style assembly, spare the barrier-type terminal blocks present in this once-revised Terminal Board product offering; given the fact that these pluggable terminal blocks were likely removed or detached prior to coating. This IS200SPROS1A Terminal Board ships protected by AX Control's guaranteed three-year warranty upon purchase. - AX Control Lead Technician

Repair Services For IS200SPROS1A

Type Lead Time Price Action
Repair Service 1-2 weeks $1980

Our highly skilled technicians can repair your IS200SPROS1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

IS200SPROS1A Manuals, White Papers, Data Sheets, and Troubleshooting
