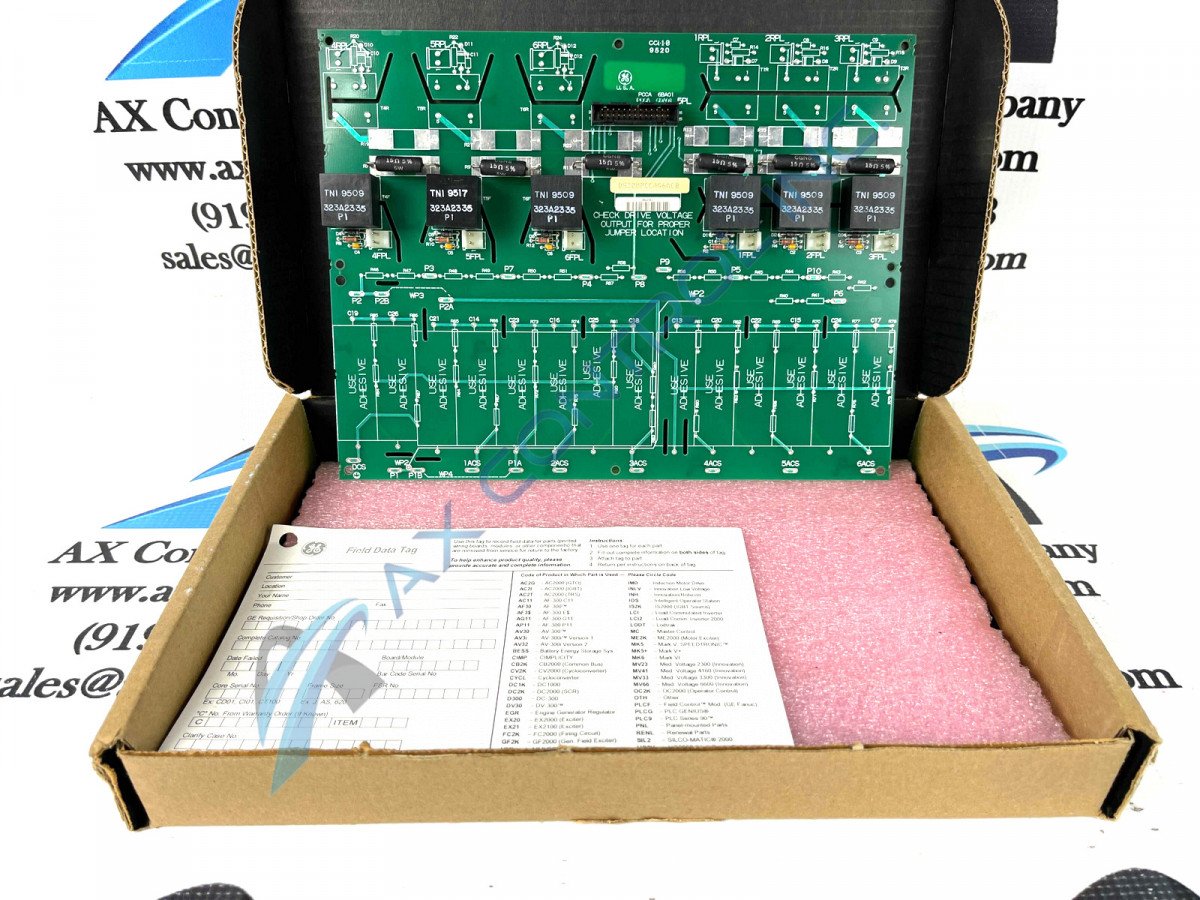

This General Electric DS200PCCAG6A Power Connect Board was manufactured for use in the Mark V Series of turbine control systems.



Sell Surplus: Have a DS200PCCAG6A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200PCCAG6A
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200PCCAG6A Technical Specifications

Manufacturer General Electric
Series Mark V
Part Number DS200PCCAG6A
Functional Acronym PCCA
Functional Description Power Coupling Board
PCB Coating Normal Coating
Functional Revision 1 A

Product Description

The DS200PCCAG6A is one of several versions of power connect cards available from GE Industrial Control Systems for use within Mark V turbine control systems. These kinds of boards are typically also compatible with GE exciters and drives. This Mark V Series is a legacy series given its eventual discontinuation of manufacturing in the many years after its initial General Electric release, although it additionally exists as one of the final General Electric product series to make use of the company's patented Speedtronic control system technology. The Mark V Turbine Control System Series' DS200PCCAG6A printed circuit board, while definable as a Power Connect Card, is not the originally-designed product of that specific functionality to exist within the Mark V Series; that would be the DS200PCCAG6 parent Power Connect Card missing this DS200PCCAG6A product offering's A-rated functional product revision.

Hardware Tips and Specifications

Like any GE PCB offered in our new and reconditioned inventory; this DS200PCCAG6A PCB makes use of several notable hardware component inclusions and specifications to gain its true intended Mark V Series functional role. PCCA boards are populated with pulse transformers that are used for gate drive functions to the SCR bridge. Some of these boards also provide snubber circuits for the dampening of power spikes across gate drivers, dc bus and ac lines. Higher horsepower controllers like the G6A typically have these functions located elsewhere in the system. The DS200PCCAG6A fits within J, K, and M frames within its greater Mark V Series automated drive assembly. It is compatible with a DCFB power supply board and uses leg fuses and reactors. The board has six transformers located in one line, with locations marked on the board for six other transformers that are located on other versions of the board. This version of the board also lacks jumpers, which most other versions include. Other DS200PCCAG6A board components include multiple plug connectors that typically line up with the previously mentioned transformers. This DS200PCCAG6A product offering's unique group six Mark V Series product grouping is responsible for many of this DS200PCCAG6A PCB's hardware specifications; revealing this DS200PCCAG6A product offering's:

  • Absence of any snubber component
  • Compatibility with the DCFB Power Supply Board
  • Maximum Ac voltage of 1500 V rms
  • Separate or Common accepted styles of bus transformers

The aforementioned DCFB Power Supply Board in the assembly of this DS200PCCAG6A product offering is additionally available here at AX Control for both purchases and repairs. The DS200PCCAG6A does not have any replaceable components, and instead should be replaced as a complete unit. When installing a replacement, users should keep in mind that the PCCA has potentially lethal voltages present on its surface when the unit is powered. Make sure the unit is powered down before touching the board or any connected circuits. AX Control maintains millions of dollars of on-hand inventory to better meet the needs of our customers.  We ship orders multiple times each day from our North Carolina facility.  Local customers are welcome to pick up their purchases, but please call ahead so we can have your part pulled and ready for you. Before making any final purchase decision on this DS200PCCAG6A Power Connect Card, it is crucial to realize that it has been edited from its originally-introduced performance specifications and dimensions through an application of its sole A-rated functional product revision.

Frequently Asked Questions about DS200PCCAG6A

What does this DS200PCCAG6A PCB's A-rated functional product revision involve?

The A-rated functional product revision made to the assembly of this DS200PCCAG6A PCB enhances its basic performance specifications and general functionality, without focusing on aesthetics or durability.

Would this DS200PCCAG6A PCB be protected by any warranty upon my original purchase?

Yes. Immediately following your original purchase from AX Control, this DS200PCCAG6A printed circuit board and may others would be considered protected by our guaranteed three-year PCB warranty.

Reviews For DS200PCCAG6A

Internal Review

This DS200PCCAG6A Power Connect Card was originally manufactured for placement in General Electric's Mark V Turbine Control System Series, as explained above. This DS200PCCAG6A PCB is something of an anomaly within this legacy GE product series however; as it belongs to the seldom-seen Mark V Series group six product grouping and is further changed by its singular A-rated significant functional product revision. - AX Control Lead Technician
