DS200GLAAG1ACC

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures 4.88 (16) Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.88 (16)
  • Click a star to rate this product

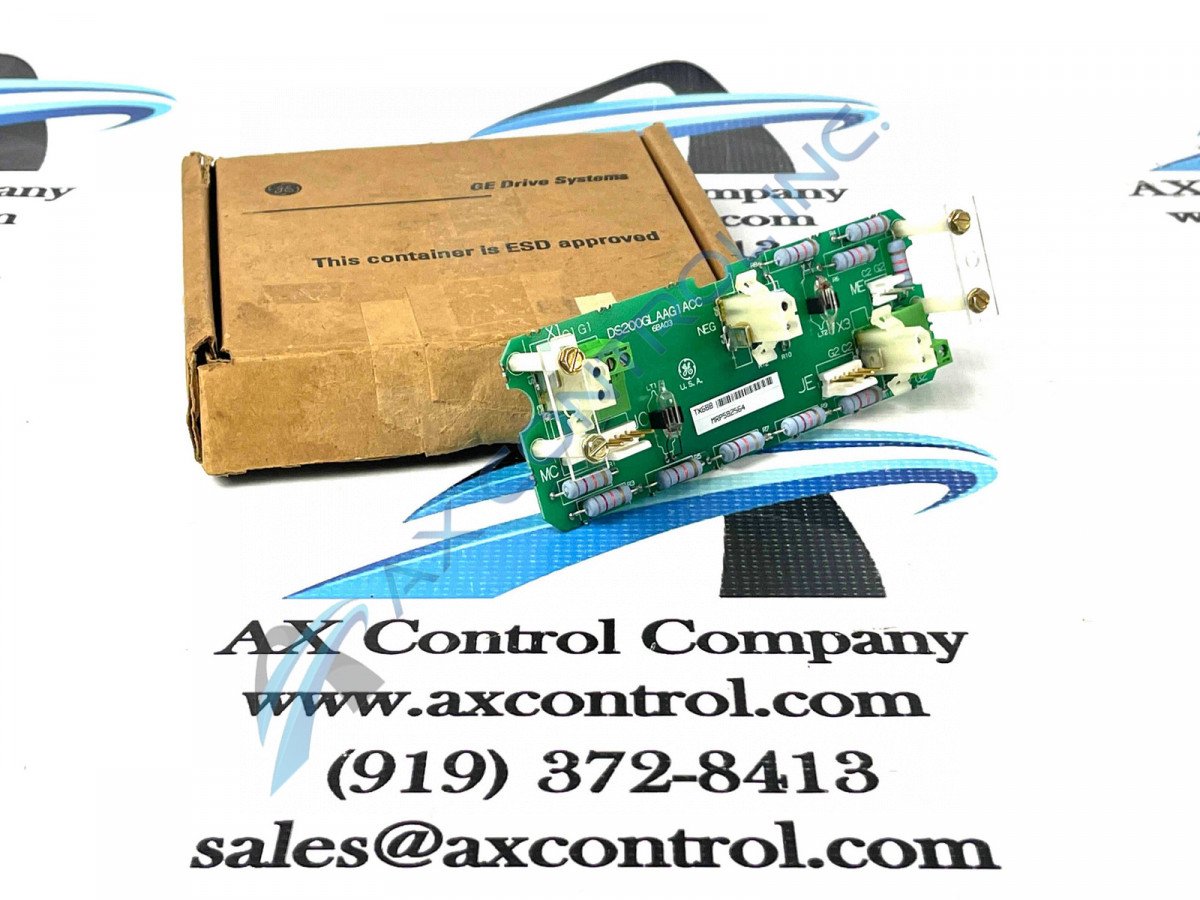

This DS200GLAAG1ACC Gate Lead Adapter Card from General Electric was manufactured for the Mark V Turbine Control System Series.

Repair
$565
SKU: 196MVD1
3 Year Warranty:

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the DS200GLAAG1ACC

Greater Product Series Information

This DS200GLAAG1ACC printed circuit board from General Electric is better-classifiable as a Gate Lead Adapter Assembly, as based on its functional description in Mark V Turbine Control System Series instructional manuals. With this being true, this particular DS200GLAAG1ACC printed circuit board or PCB for short is:

  • not actually the first model of Gate Lead Adapter Board manufactured by the GE industrial giant for their Mark V Series
    • that would be the unrevised parent DS200GLAAG1 PCB
  • offering specific applications in the control and management systems of compatible and popular wind, steam and gas turbine automated drive assemblies
  • considered obsolete, as it is truthfully a General Electric Legacy product series that was discontinued in one of the many years following its original Mark product series release
  • desirable given its specific turbine applications
  • and due to its status as one of the finally-developed General Electric product series to make use of the company's patented Speedtronic control system technology

Hardware Tips and Specifications

Now that some of the basic series identification information and functionality for this DS200GLAAG1ACC Gate Lead Adapter Assembly has been explored, it is possible to contextualize its various hardware inclusions and specifications. The GE Gate Lead Adapter Board DS200GLAAG1ACC features:

  • two terminal blocks with a maximum of 6 wires
  • two 2-pin connectors
  • two 4-pin connectors
  • 2 LEDs
    • these diagnostic LEDs on the side of the board indicate processing activity and status and provide a quick, visual indicator of the activity/status of the board
    • if you open the cabinet door and locate the board in the drive and notice that the LEDs are flashing or are lit continuously, it indicates that the board is healthy and is processing as designed
    • if the LEDs are off, it indicates that the board is not working

If possible refer to the written material that came with your original DS200GLAAG1ACC board to read a description of the LEDs and what the various states of activity indicate. While the LEDs in the assembly of this DS200GLAAG1ACC Mark V Series product are certainly important, their drawn-out inclusion on this DS200GLAAG1ACC personalized product page is more of a result of this DS200GLAAG1ACC PCB's lack of pertinent, originally-printed instructional manual materials online for research purposes.


DS200GLAAG1ACC Functional Product Number Breakdown

The DS200GLAAG1ACC functional product number itself can act as a primary source of DS200GLAAG1ACC Board hardware information; coding for specific details in a series of consecutive and functional naming chunks. For instance, the DS200GLAAG1ACC functional product number begins with the DS200 series tag delegating this DS200GLAAG1ACC PCB's normal Mark V Series assembly version and domestic original manufacture location. Some of the other relevant details revealed in this DS200GLAAG1ACC product offering's functional product number includes its:

  • GLAA functional product abbreviation
  • Normal PCB coating style
  • Group one Mark V Series product grouping
  • A-rated primary functional revision
  • C-rated secondary functional revision
  • C-rated artwork configuration revision

DS200GLAAG1ACC Diagnosis and Troubleshooting

If more troubleshooting is required because you suspect that the DS200GLAAG1ACC board is not functioning properly, you can access the diagnostic tools on the drive to examine all the components in the drive and thereby gain a full report on the health of the drive.

You can use the information to replace boards or other components and improve the performance of the drive. You must use the control panel located on the side of the drive to access the diagnostic tools; the menu-driven user interface on the control panel contains selections you can use to initiate the diagnostics. The control panel also features:

  • keys to enable you to scroll through the selections, including the selection to start the diagnostic tools
  • a standard normal-style coating of PCB protection

DS200GLAAG1ACC Technical Specifications

Part Number DS200GLAAG1ACC
Series Mark V
Manufacturer GE General Electric
Functional Acronym/Abbreviation GLAA
Product Type Gate Lead Adapter Card
Weight Less than 1 pound
Assembly Type Normal Assembly

Frequently Asked Questions about DS200GLAAG1ACC

What are the approximate dimensions of the DS200GLAAG1ACC model

The approximate dimensions of the DS200GLAAG1ACC model are two inches wide by six inches tall. This board is small and will also weigh under a pound.

What other components make up the DS200GLAAG1ACC card?

Some of the other components on the DS200GLAAG1ACC board are LEDs and four pin connectors. The LEDs on this model are used to indicate the activity and status of the model. There are two different types of pin connectors, two are described as two-pin connectors, and the remaining are described as four-pin connectors.

How many resistors are on DS200GLAAG1ACC?

There are three resistors located along the DS200GLAAG1ACC card. They are labeled as X1, X2, and X3. The X2 resistor is labeled as a negative resistor. The X1 and X2 connectors are located toward the top of the board, the X1 connector is located in the upper left-hand corner, and the X2 connector is in the middle. The X3 connector is located in the bottom right-hand corner of the board.
