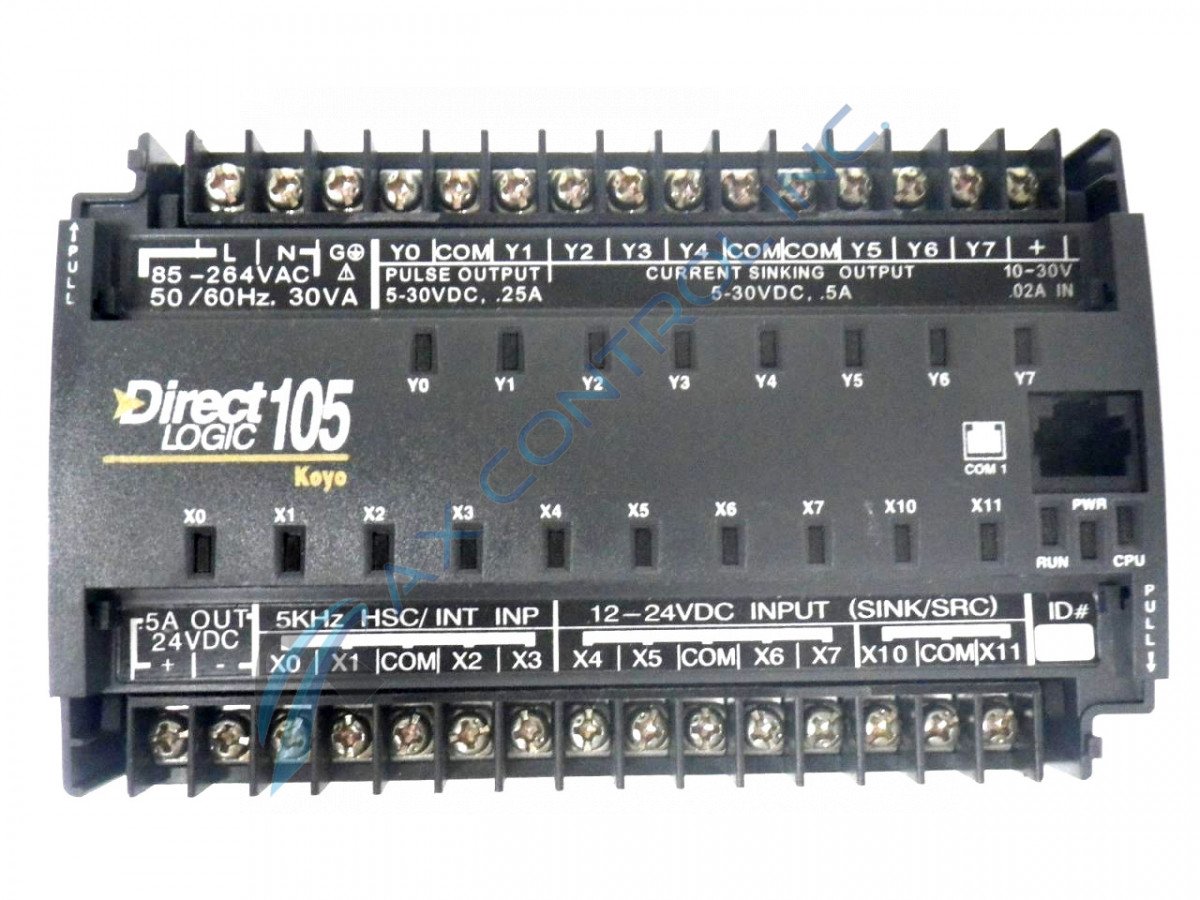

The F1-130DD is a Programmable Logic Controller that was manufactured by Facts Engineering

New Surplus Factory Package
SKU: 6DI1
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

New Surplus AX Control Package
SKU: 6DI2
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned
$500
SKU: 6DI3
3 Year Warranty:
Order Before 3PM EST
Rush Available
1 in Stock
Repair
$238
SKU: 6DI4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

  Shipping Weight: 8.0 lbs.

  Shipping Dimensions: 18" x 12" x 12"

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the F1-130DD

The F1-130DD is a Facts Engineering Programmable Logic Controller that was designed for the DirectLogic 105 series. This product is a collaboration with the companies Koyo, PLC Direct, and Facts Engineering. There are diagnostics that allow the user to understand the problem of the system, should an error occur. There is also a protective NEMA casing that blocks some noise pollution. The ambient temperature that best works for the module is between -20 and 70 degrees Celsius.

The F1-130DD has a number of electrical specifications to be aware of. Some of these are:

  • 3 isolated input commons and 3 internally connected output commons
  • 2 amp inrush current with a maximum running current of 1.7 amps
  • Input voltage range spans from 94 to 240 VAC
  • Output voltage range is between 100-240 VDC

The F1-130DD has a ladder memory structure that allows for the individual manipulation of data. The module has a 2.4K retentive memory space for storing data. The RS-232C port that transfers module data has a rate of 9600 baud. For programming the system, the module works with the DirectSOFT programming language. The system has features like forced I/O, timer/event drum sequencing, and RLL diagram-style programming.

F1-130DD Manuals, White Papers, Data Sheets, and Troubleshooting

F1-130DD Technical Specifications

Part Number F1-130DD
Series DirectLogic 105
Manufacturer Facts Engineering
Product Type Programmable Logic Controller
Input Type DC
Output Type DC
Number of Inputs 10 (sinking or source)
Number of Outputs 8 (sinking)
Peak Voltage 60 VDC
Fuses None (External Recommended)

Frequently Asked Questions about F1-130DD

What are some fatal errors that could occur to the F1-130DD?

Two fatal errors that could occur to this module are a power supply failure or a CPU malfunction. These are not the only fatal errors that can occur.

Does the F1-130DD have LED indicators?

Yes, the F1-130DD has several LED indicators. These include Power and CPU LEDs.

Reviews For F1-130DD

Internal Review
(5.0)

The F1-130DD provides users with a compact CPU that has a range of beneficial features. The module has an RS-232C communication port that allows data transfer and exchange with other devices. The module can be programmed using DirectSOFT programming software via Windows. The F1-130DD can also be programmed using a Handheld Programmer, the D2-HPP. This allows users to program the module with a movable device. - AX Control Lead Technician
