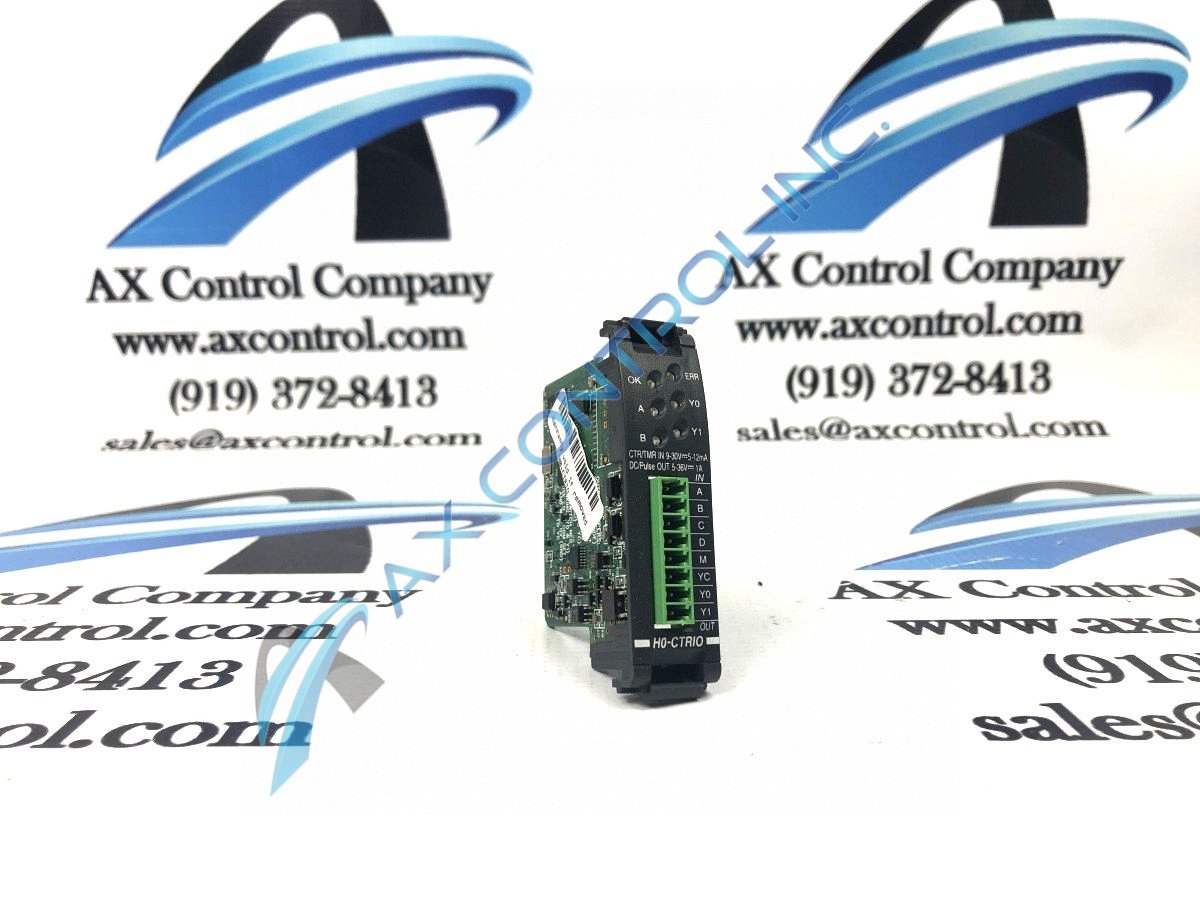

The H0-CTRIO is a High Speed Counter Interface Module with an input voltage range of 9-30 VDC that was manufactured by Host Automation

New Surplus Factory Package
SKU: 23DI1
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

New Surplus AX Control Package
$620
SKU: 23DI2
3 Year Warranty:
Order Before 3PM EST
Rush Available
1 in Stock
Reconditioned
$515
SKU: 23DI3
3 Year Warranty:
Order Before 3PM EST
Rush Available
2 in Stock
Repair
$130
SKU: 23DI4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

  Shipping Weight: 2.0 lbs.

  Shipping Dimensions: 6" x 6" x 6"

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the H0-CTRIO

The H0-CTRIO is a High Speed Counter Interface by Host Automation. This module is used to accept high speed pulse type input signals for counting or timing applications. The H0-CTRIO is also designed to send high speed pulse type output signals for stepper/servo motor control, monitoring, alarm, and other discrete control functions.

The H0-CTRIO provides 2500 V I/O-to-logic isolation, 1000 V among input channels and all outputs. The H0-CTRIO High Speed Counter Interface features 4 DC sink/source inputs at 100 kHz maximum. The input voltage range is 9-30 VDC and the maximum voltage is 30 VDC.

The H0-CTRIO features 2 points, isolated, either both current sourcing or both current sinking field-effect transistors (FET) outputs. The voltage range is 5 VDC-36 VDC and the maximum voltage is 36 VDC. The maximum load current is 1 A per point. The pulse output control range is 20 Hz to 25 Hz.

The H0-CTRIO features 5 LED indicators on the front of the device:

  • OK Model OK
  • ERR User program error
  • A Channel 1 function 1 resource state
  • B Channel 1 function 2 resource state
  • Y0 and Y1 Output status

The CTRIO Workbench tool is used to configure the H0-CTRIO. You must perform the configuration with the PLC in RUN mode. Use the H0-CTRIO Workbench to assign the input and output points, map the CPU to memory, and configure other functions  Be sure to configure the H0-CTRIO in program mode. Also, be sure to map the memory before starting the program.

H0-CTRIO Manuals, White Papers, Data Sheets, and Troubleshooting

H0-CTRIO Technical Specifications

Part Number H0-CTRIO
Card Type High Speed Counter Interface
Manufacturer Host Automation
Series DL06
Input Voltage 9-30 VDC
Maximum Input Voltage 30 VDC
Inputs 4 pts
Outputs 2 pts
Overcurrent Protection 15A max
Output Voltage Range 5-36 VDC

Frequently Asked Questions about H0-CTRIO

What are some common applications for the H0-CTRIO?

The H0-CTRIO can be used for high speed cut to length operations using an encoder input, indexing functions for controlling a stepper/servo drive, or accurate frequency counting for speed control with onboard scaling. These are just some of the applications that the H0-CTRIO can be used for.

Does the H0-CTRIO only work with the Direct Logic 06 series?

No, the H0-CTRIO can also be used with the Direct Logic 05 series. This provides a greater amount of flexiblity to users.

Reviews For H0-CTRIO

Internal Review
(5.0)

The H0-CTRIO is a reliable option card that can be used in a variety of applications. The H0-CTRIO provides price counting and timing, which allows users to accurately monitor data. The H0-CTRIO has its own microprocessor and runs asynchronously to the PLC or controller. The H0-CTRIO operates in real time rather than waiting for data to sync from the PLC. - AX Control Lead Technician
