F0-04DAH-2

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures 4.63 (8) Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.63 (8)
  • Click a star to rate this product


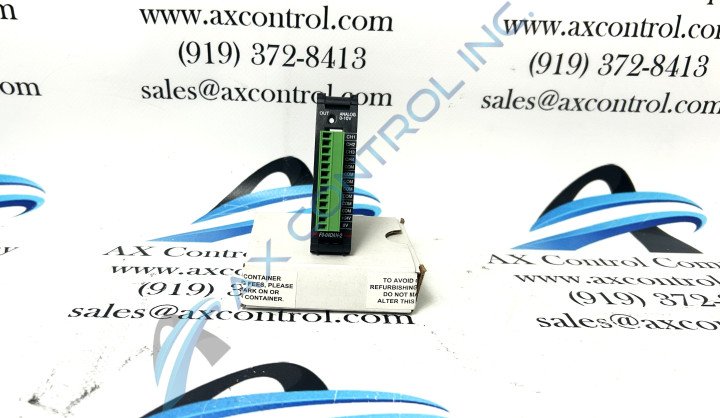

The F0-04DAH-2 is a 4 channel Analog Output Module with 16-bit resolution that was manufactured by Automation Direct and Facts Engineering

New Surplus Factory Package
$895
SKU: 13DI1
3 Year Warranty:
Order Before 3PM EST
Rush Available
1 in Stock
New Surplus AX Control Package
SKU: 13DI2
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned
SKU: 13DI3
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Repair
$177
SKU: 13DI4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

  Shipping Weight: 2.0 lbs.

  Shipping Dimensions: 6" x 6" x 6"

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the F0-04DAH-2

The Automation Direct and Facts Engineering module F0-04DAH-2 is a high definition analog option output module. This four channel module is compatible with both DirectLogic 05 and DirectLogic 06 series programmable logic controllers. A number of modules are available for DL05/06 expansion, allowing the controller to function in a wide variety of work environments.

This device works to convert the DL05/06’s digital output signal to an analog voltage signal. All four channels on the module are updated on each scan of the PLC’s internal computer. Designed for easy and quick access, the terminal block can be easily removed from the controller without having to rewire the entire unit.

The F0-04DAH-2 has a number of useful features. Some of these are:

  • Full 16 bit resolution
  • Easy to remove module and terminal block
  • 24 VDC Peak Output Voltage protection

The full 16-bit resolution offers high definition data signals to ensure precise and clear measurements. Specific software requirements must be met by the PLC for F0-04DAH-2 to run correctly. If the module is installed in a DL05 controller, firmware version 5.20 (or later) and DirectSOFT32 version 3.0c (or later) is necessary for proper operation. Should it be installed in a DL06 controller, firmware version 2.30 (or later) and DirectSOFT32 version V4.0 build 16 (or later) is required for it to run.

F0-04DAH-2 Manuals, White Papers, Data Sheets, and Troubleshooting

F0-04DAH-2 Technical Specifications

Part Number F0-04DAH-2
Manufacturer Automation Direct/Facts Engineering
Series DirectLOGIC 06
Option Card Type Analog Output Module
Number of Output Channels 4
External Power Requirement 24 VDC
Output Range 0-10 VDC
Resolution 16 bit
Country of Origin Taiwan
Data Types BCD or binary

Frequently Asked Questions about F0-04DAH-2

Can the F0-04DAH-2 act as a power supply for field devices?

No, the F0-04DAH-2 can not to be used a power supply for field devices. Users will need to find a power source for transmitters that is separate from the PLC.

What does the V-memory do for the F0-04DAH-2?

The V-memory tells the output module how many channels to scan, which can be up to 4 channels for this module. The memory will also determine the type of data for the module, which can be either binary or BCD.

Reviews For F0-04DAH-2

Internal Review
(5.0)

The F0-04DAH-2 has a pointer in the V-memory system, which points to the user memory location where the analog output data is stored by the user program until it is sent to the output module. For the F0-04DAH-2, this pointer is the system memory location V7702. Other system memory locations will refer to other functions for the F0-04DAH-2. For example, the V7700 is used to set the data format and the number of channels that will be scanned. - AX Control Lead Technician

F0-04DAH-2 Technical Specifications

Part Number F0-04DAH-2
Manufacturer Automation Direct/Facts Engineering
Series DirectLOGIC 06
Option Card Type Analog Output Module
Number of Output Channels 4
External Power Requirement 24 VDC
Output Range 0-10 VDC
Resolution 16 bit
Country of Origin Taiwan
Data Types BCD or binary

About the F0-04DAH-2

The Automation Direct and Facts Engineering module F0-04DAH-2 is a high definition analog option output module. This four channel module is compatible with both DirectLogic 05 and DirectLogic 06 series programmable logic controllers. A number of modules are available for DL05/06 expansion, allowing the controller to function in a wide variety of work environments.

This device works to convert the DL05/06’s digital output signal to an analog voltage signal. All four channels on the module are updated on each scan of the PLC’s internal computer. Designed for easy and quick access, the terminal block can be easily removed from the controller without having to rewire the entire unit.

The F0-04DAH-2 has a number of useful features. Some of these are:

  • Full 16 bit resolution
  • Easy to remove module and terminal block
  • 24 VDC Peak Output Voltage protection

The full 16-bit resolution offers high definition data signals to ensure precise and clear measurements. Specific software requirements must be met by the PLC for F0-04DAH-2 to run correctly. If the module is installed in a DL05 controller, firmware version 5.20 (or later) and DirectSOFT32 version 3.0c (or later) is necessary for proper operation. Should it be installed in a DL06 controller, firmware version 2.30 (or later) and DirectSOFT32 version V4.0 build 16 (or later) is required for it to run.

F0-04DAH-2 Manuals, White Papers, Data Sheets, and Troubleshooting

Frequently Asked Questions about F0-04DAH-2

Can the F0-04DAH-2 act as a power supply for field devices?

No, the F0-04DAH-2 can not to be used a power supply for field devices. Users will need to find a power source for transmitters that is separate from the PLC.

What does the V-memory do for the F0-04DAH-2?

The V-memory tells the output module how many channels to scan, which can be up to 4 channels for this module. The memory will also determine the type of data for the module, which can be either binary or BCD.

Reviews For F0-04DAH-2

Internal Review
(5.0)

The F0-04DAH-2 has a pointer in the V-memory system, which points to the user memory location where the analog output data is stored by the user program until it is sent to the output module. For the F0-04DAH-2, this pointer is the system memory location V7702. Other system memory locations will refer to other functions for the F0-04DAH-2. For example, the V7700 is used to set the data format and the number of channels that will be scanned. - AX Control Lead Technician
