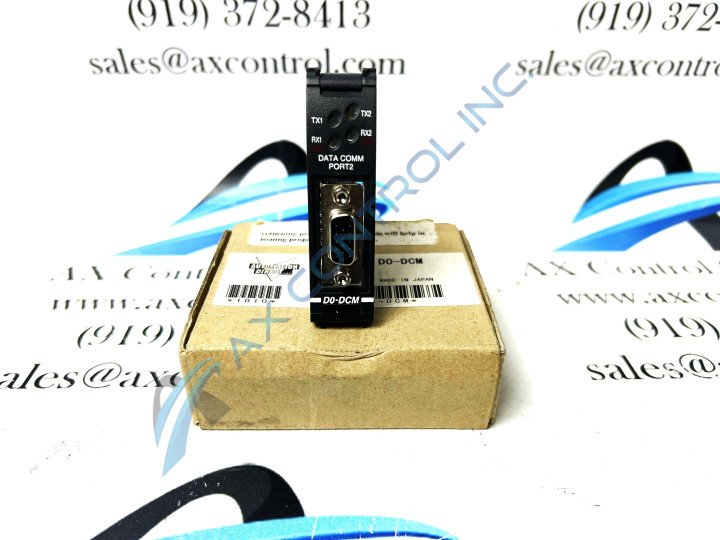

The D0-DCM is a Data Communications Module with an RS-232 port and an RS-232/422/485 port that was manufactured by Automation Direct and Koyo Electronics

New Surplus Factory Package
SKU: 10DI1
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

New Surplus AX Control Package
SKU: 10DI2
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned
$350
SKU: 10DI3
3 Year Warranty:
Order Before 3PM EST
Rush Available
1 in Stock
Repair
$171
SKU: 10DI4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

  Shipping Weight: 2.0 lbs.

  Shipping Dimensions: 6" x 6" x 6"

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the D0-DCM

Use the D0-DCM Data Communications module as a communications interface for the DL05 Micro PLC series devices and DL06 Micro PLC series devices. You can populate any slot in a DL05 or DL06 PLC with the D0-DCM Data Communication module. The D0-DCM contains one RS-232 communications port (RJ12) and one RS-232/422/485 communications port (15-pin female high-density D-shell).

The D0-DCM Data Communication module provides the following functions:

  • Additional communications for operator interfaces, laptops, and desktop computers above what is available on the PLC.
  • Network interface for applications that require data to be shared between PLCs, or between PLCs and other devices such as laptops, desktops, or operator interfaces.
  • Network interface to connect your DL05 or DL06 system to a Modbus RTU network.

The front of the D0-DCM provides status indicators.

TX1: When green, port 1 is transmitting data.

RX1: When green, port 1 is receiving data. Red indicates a port 1 timeout, negative acknowledgment (NAK), or exception response.

TX2: When green, port 2 is transmitting data.

RX2: When green, port 2 is receiving data. Red indicates a port 2 timeout, negative acknowledgment (NAK), or exception response.

The D0-DCM communication port parameters are configured using either the DirectSOFT5 (or later version) setup dialog box or ladder logic programming for DirectSOFT32 users (no DIP switch settings). If port 1, port 2, or both ports default parameters are acceptable for your application, no setup is required. You must configure port 2, if you plan to use it as a network master.

D0-DCM Manuals, White Papers, Data Sheets, and Troubleshooting

D0-DCM Technical Specifications

Part Number D0-DCM
Series DL06
Manufacturer Automation Direct/ Koyo Electronics
Product Type Data Communications Module
Ports RS-232; RS-232/422/485
Port Speed Up to 115.2k baud
Manual Number D0-DCM-M
Software DirectSOFT
Internal Power Consumption 250mA max at 5 VDC
Operating Temperature 0 to 60 degrees Celsius

Frequently Asked Questions about D0-DCM

Does the D0-DCM work with any of the DL06 PLCs?

Yes, the D0-DCM can be connected to any of the Direct Logic 06 PLCs.

What are some protocols that the D0-DCM can meet?

The D0-DCM can interface with both Modbus RTU and DirectNET networks.

Reviews For D0-DCM

Internal Review
(5.0)

The D0-DCM allows for a greater number of connections to be made by adding two additional ports to the DL06 PLCs. These ports can support multiple communications protocols, which gives users more flexibility for communication. The D0-DCM can be used to connect to a PC or operator interface, as well. The D0-DCM uses the same programming software as the PLCs in the Direct Logic 06 series. - AX Control Lead Technician
