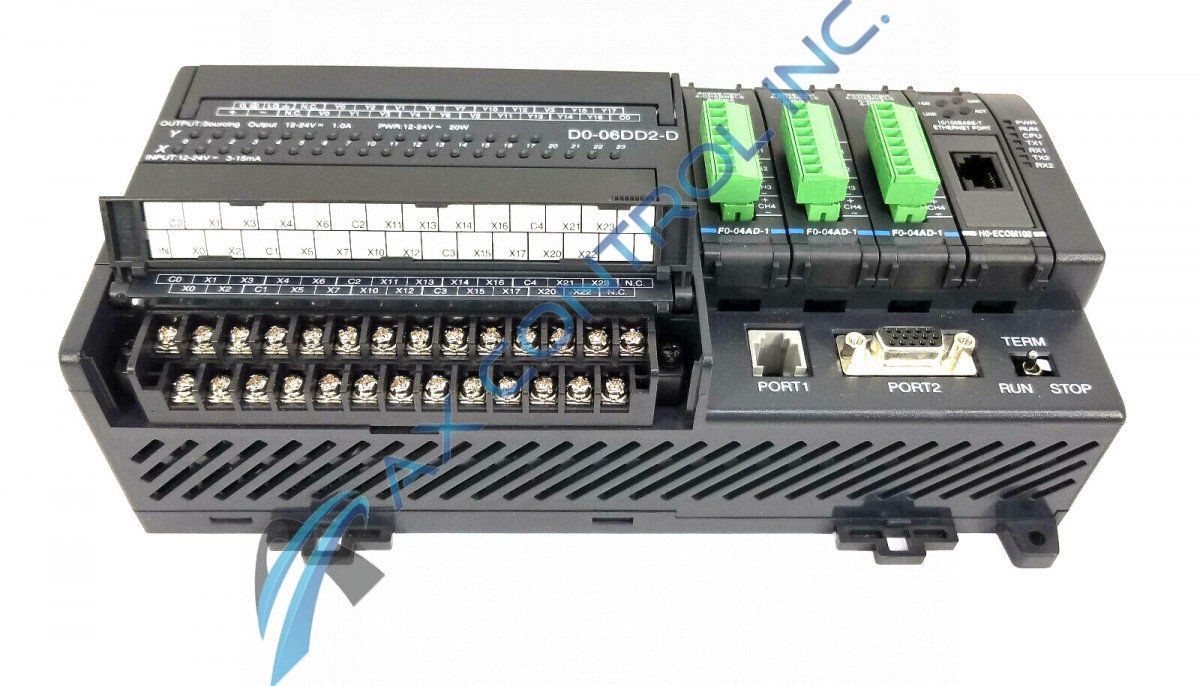

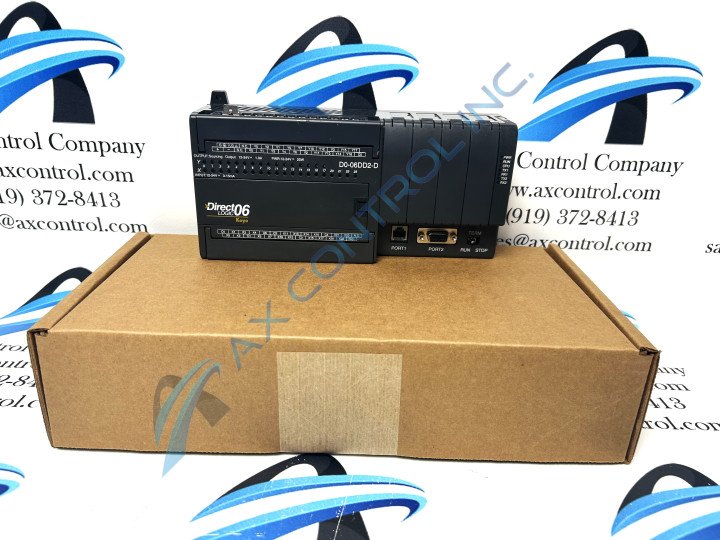

The D0-06DD2-D is a 12-24 VDC power PLC with 20 Discrete Inputs and 16 Discrete Outputs that was manufactured by Automation Direct

New Surplus Factory Package
SKU: 7DI1
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

New Surplus AX Control Package
SKU: 7DI2
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned
$695
SKU: 7DI3
3 Year Warranty:
Order Before 3PM EST
Rush Available
4 in Stock
Repair
$212
SKU: 7DI4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

  Shipping Weight: 5.0 lbs.

  Shipping Dimensions: 12" x 12" x 12"

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the D0-06DD2-D

The D0-06DD2-D is a DL06 base unit within the Direct Logic 06 series by Automation Direct. This model operates with a DC power supply, supporting a voltage range of 12-24 Volts DC or 20 Watts. The D0-06DD2-D can help control and monitor industrial devices. The unit can be programmed using DirectSoft software or a handheld programmer from the DL06 series.

Input Specifications
  • Features 20 sink/source DC input points with 5 isolated commons
  • Input Voltage Range: 12 to 24 Volts DC
  • Input Impedance:
    • 1.8K at 12-24 VDC (X0-X3)
    • 2.8K at 12-24 VDC (X4-423)
  • On Current: 5mA (at 10 VDC or higher)
  • Off Current: 0.5mA (at 2 VDC or lower)
  • Response Time:
    • Typical off-to-on and on-to-off: 4mS
    • Range: 2 to 8mS
Output Specifications
  • Includes 16 sourcing DC output points with 4 isolated commons
  • Rated Output Voltage Range: 12 to 24 Volts DC (peak voltage of 30 VDC)
  • Maximum Frequency (Points Y0 and Y1): 10kHz
  • On Voltage Drop:
    • 0.5 VDC at 1 Amp (Points Y0 and Y1)
    • 1.2 VDC at 1 Amp (Points Y2-Y17)
  • Maximum Output Current: Varies by point, either 0.5A or 1.0A (refer to specific point specifications)
  • Maximum Leakage Current: 15 µA at 30 VDC
  • Status Indicators: Located on the logic side of the unit

D0-06DD2-D Manuals, White Papers, Data Sheets, and Troubleshooting

D0-06DD2-D Technical Specifications

Part Number D0-06DD2-D
Product Type Programmable Logic Controller
Manufacturer Automation Direct
Series DirectLogic 06
Weight 1.7 lbs
Manual Number D0-06USER-M
Total Memory 14.8k words
External Power Requirement 12-24 VDC
Discrete Input Points 20
Discrete Output Points 16

Frequently Asked Questions about D0-06DD2-D

Does the D0-06DD2-D only interface with DC voltages?

Yes, the D0-06DD2-D does not accept AC voltages. Both inputs and outputs need DC voltage in order for the D0-06DD2-D to function.

What are some of the protocols that the D0-06DD2-D supports with its ports?

The D0-06DD2-D supports DirectNET, Modbus RTU, and ASCII, among other protocols.

Reviews For D0-06DD2-D

Internal Review
(4.0)

The Automation Direct D0-06DD2-D is a versatile DL06 base unit powered by 12-24 VDC. It offers comprehensive I/O capabilities with 20 sink/source DC input points and 16 sourcing DC output points, both featuring isolated commons. Key highlights include a fast typical 4mS response time for inputs and support for up to 10kHz frequency on high-speed outputs (Y0/Y1). Output current capacity varies by point (0.5A or 1.0A), with a low 15 µA maximum leakage current. Crucially, external fuses are recommended as the unit lacks internal protection. This makes the D0-06DD2-D a flexible and responsive option for DC control systems, provided proper external fusing is implemented. – AX Control Lead Technician

D0-06DD2-D Technical Specifications

Part Number D0-06DD2-D
Product Type Programmable Logic Controller
Manufacturer Automation Direct
Series DirectLogic 06
Weight 1.7 lbs
Manual Number D0-06USER-M
Total Memory 14.8k words
External Power Requirement 12-24 VDC
Discrete Input Points 20
Discrete Output Points 16

About the D0-06DD2-D

The D0-06DD2-D is a DL06 base unit within the Direct Logic 06 series by Automation Direct. This model operates with a DC power supply, supporting a voltage range of 12-24 Volts DC or 20 Watts. The D0-06DD2-D can help control and monitor industrial devices. The unit can be programmed using DirectSoft software or a handheld programmer from the DL06 series.

Input Specifications
  • Features 20 sink/source DC input points with 5 isolated commons
  • Input Voltage Range: 12 to 24 Volts DC
  • Input Impedance:
    • 1.8K at 12-24 VDC (X0-X3)
    • 2.8K at 12-24 VDC (X4-423)
  • On Current: 5mA (at 10 VDC or higher)
  • Off Current: 0.5mA (at 2 VDC or lower)
  • Response Time:
    • Typical off-to-on and on-to-off: 4mS
    • Range: 2 to 8mS
Output Specifications
  • Includes 16 sourcing DC output points with 4 isolated commons
  • Rated Output Voltage Range: 12 to 24 Volts DC (peak voltage of 30 VDC)
  • Maximum Frequency (Points Y0 and Y1): 10kHz
  • On Voltage Drop:
    • 0.5 VDC at 1 Amp (Points Y0 and Y1)
    • 1.2 VDC at 1 Amp (Points Y2-Y17)
  • Maximum Output Current: Varies by point, either 0.5A or 1.0A (refer to specific point specifications)
  • Maximum Leakage Current: 15 µA at 30 VDC
  • Status Indicators: Located on the logic side of the unit

D0-06DD2-D Manuals, White Papers, Data Sheets, and Troubleshooting

Frequently Asked Questions about D0-06DD2-D

Does the D0-06DD2-D only interface with DC voltages?

Yes, the D0-06DD2-D does not accept AC voltages. Both inputs and outputs need DC voltage in order for the D0-06DD2-D to function.

What are some of the protocols that the D0-06DD2-D supports with its ports?

The D0-06DD2-D supports DirectNET, Modbus RTU, and ASCII, among other protocols.
