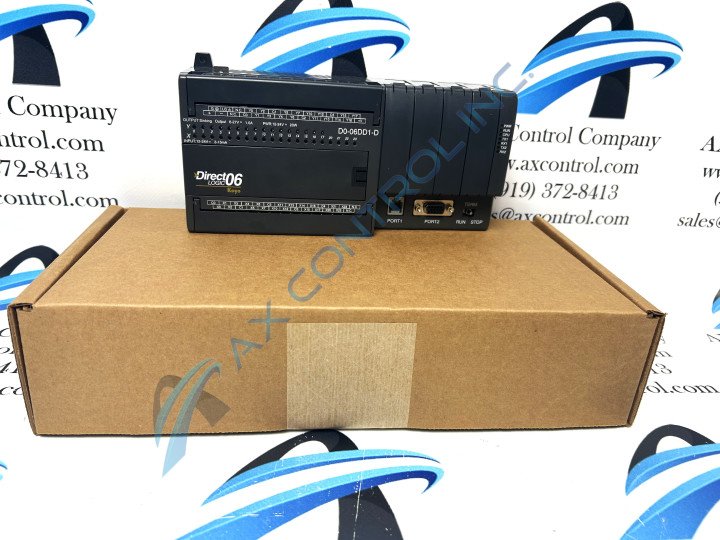

D0-06DD1-D

About the D0-06DD1-D

The D0-06DD1-D is a PLC that can be used for control and monitoring of industrial applications and devices. A PLC is a Programmable Logic Controller, which is able to be programmed to control these applications.

For program testing, the DL06 Micro PLC Model D0-06DD1-D has operating modes that are available from a switch on the device. The DirectSOFT 5 package also provides access to the modes. The D0-06DD1-D also has V-memory in 16-bit registers for storage and diagnostics.

Specifications of the D0-06DD1-D to consider are listed below.

• 12-24 VDC, 20 W is the top rating for external power of the D0-06DD1-D

• Between 10.8 and 26.4 VDC is the external range for input power (standard/high-speed)

• 12-24 VDC (standard inputs or high-speed inputs) is the voltage range for operation

• Five banks are provided with four inputs in each bank

• Isolated common terminal is on each bank (sinking or sourcing inputs)

• Output voltage: 5 VDC at a minimum and 30 VDC at a maximum

• Operating voltage range must be 6 through 27 VDC (standard outputs and pulse outputs)

• The 16 sinking DC outputs use the same common

The ports are described in the following list:

• Port ​1​: ​RS-232C​ ​communication​ ​port​

• ​Port 2: ​RS-232C/RS-422/RS-485​ ​port​ for multi-function

• 20 sinking or sourcing DC inputs

• 16 sinking DC outputs

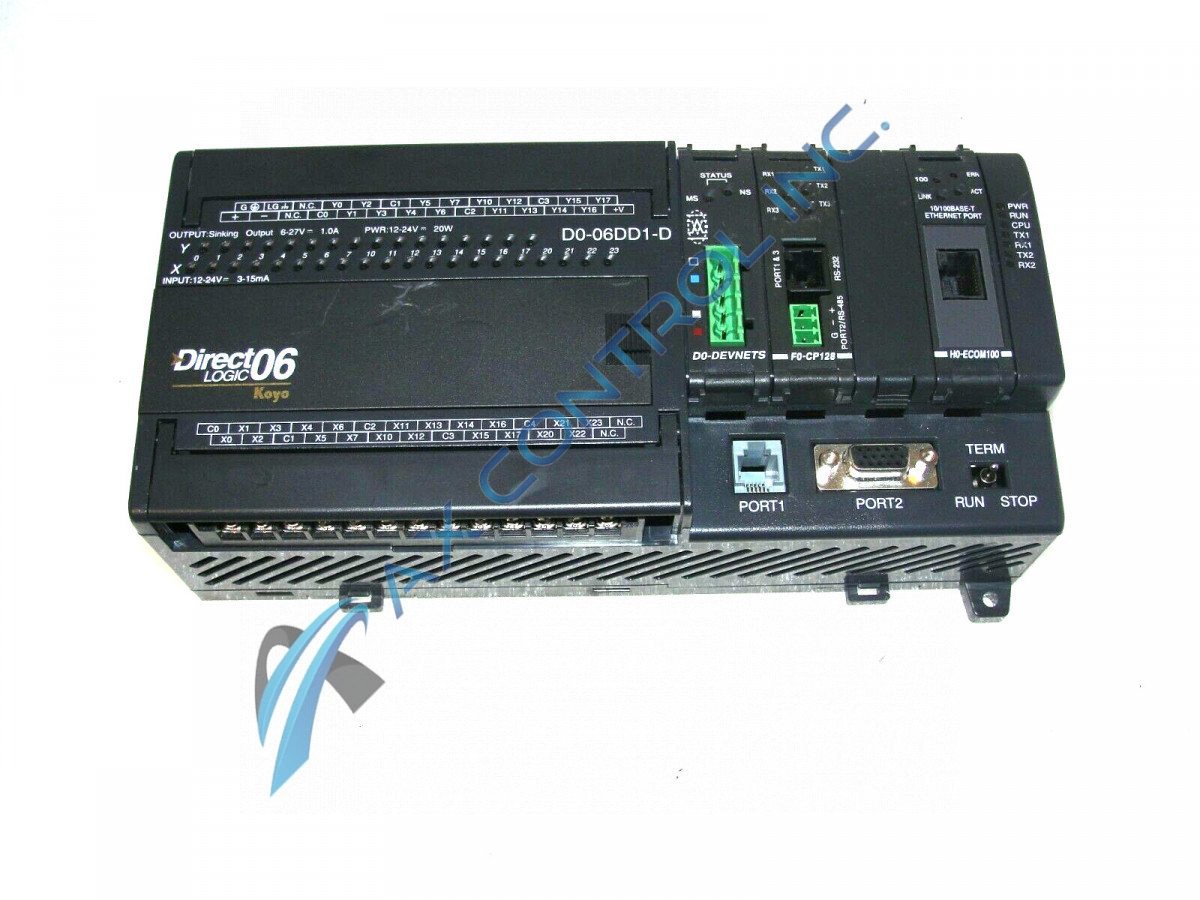

Port​ ​1​ ​and​ ​Port​ ​2​ ​on​ ​the​ ​D0-06DD1-D​ ​can​ ​be​ ​connected​ ​to​ ​a​ ​laptop that is running ​​DirectSOFT​ ​5.  Port​ ​1​ ​on​ ​the​ ​D0-06DD1-D ​is​ ​a​ ​6-pin​ ​modular​ ​connector.​ ​Port​ ​2​ ​is​ ​a​ ​15-pin​ ​HD-sub connector.
