The D0-06AR is a 20 Point Discrete Input 16 Point Discrete Output DL06 PLC with a 120-240 VAC requirement that was manufactured by Automation Direct

New Surplus Factory Package
SKU: 2DI1
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

New Surplus AX Control Package
SKU: 2DI2
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned
$456
SKU: 2DI3
3 Year Warranty:
Order Before 3PM EST
Rush Available
1 in Stock
Repair
$222
SKU: 2DI4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

  Shipping Weight: 1.8 lbs.

  Shipping Dimensions: 16" x 16" x 16"

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

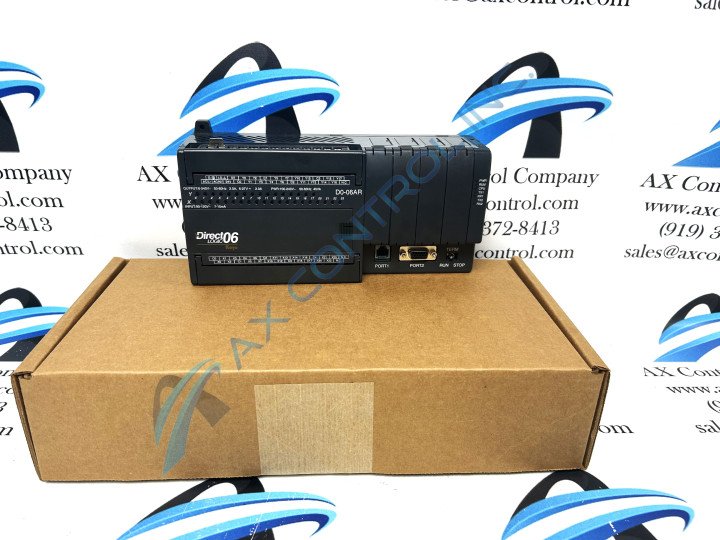

About the D0-06AR

The D0-06AR is a Programmable Logic Controller (PLC) from the DirectLOGIC 06 series by Automation Direct. The D0-06AR is designed as a 120-240 VAC unit with a number of discrete inputs and outputs. The module also has several ports on its face that allow for different connections to external devices.

The D0-06AR features operating modes that are accessed through a switch on the device or are available from a handheld programming device or optional DirectSOFT 5 programming software. The modes enable programming functions.

The external power requirement is 100-240 VAC/50-60 Hz, 40 VA maximum. The input voltage range is 80-132 VAC, 47-63 Hz. The operating voltage range is 90-120 VAC, 47-63 Hz. Inputs are organized into five banks of four. Each bank has a common terminal.

The relay output voltage range is 5-264 VAC (47-63 Hz), 5-30 VDC and the operating voltage range is 6-240 VAC (47-63 Hz), 6-27 VDC. Outputs are organized into four banks of four normally-open relay contacts. Each bank has a common terminal.

Port 1 and Port 2 on the D0-06AR can be connected to a variety of different devices, including:

  • a handheld programming device
  • an operator interface
  • another device containing optional programming software, such as DirectSOFT 5

Port 1 on the D0-06AR is a 6-pin modular connector. Port 2 is a 15-pin HD-sub connector.

The DL05 Micro PLC D0-06AR offers data storage in V-memory in 16-bit registers and advanced internal diagnostics.

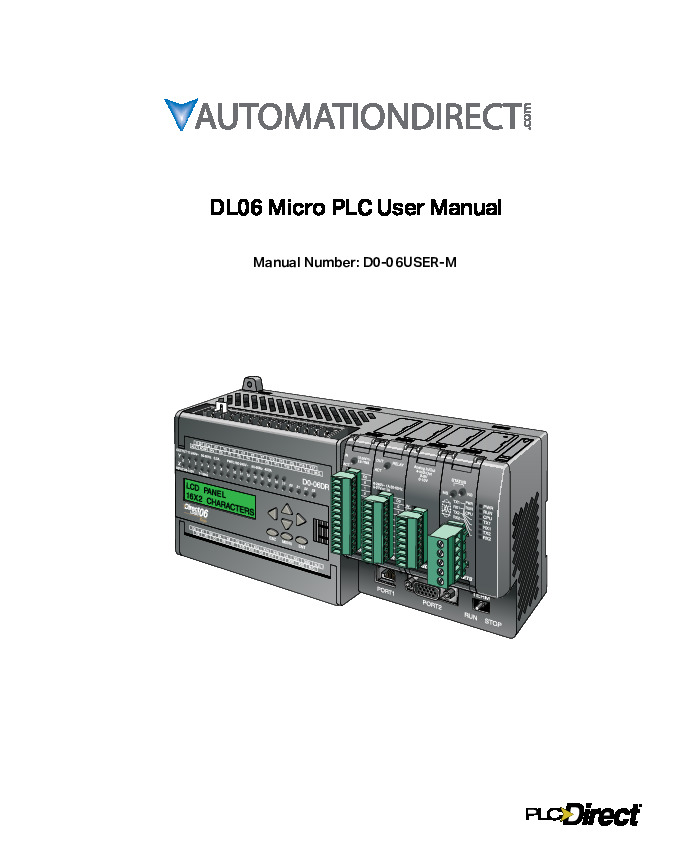

D0-06AR Manuals, White Papers, Data Sheets, and Troubleshooting

D0-06AR Technical Specifications

Part Number D0-06AR
Manufacturer Automation Direct
Series DirectLOGIC 06
Product Type PLC
Power Requirement 120-240 VAC
Discrete Output Type Relay
Discrete Input Type AC
Software DirectSOFT
Country of Manufacturer China
Manual Number D0-06USER-M

Frequently Asked Questions about D0-06AR

What kind of option cards are available for the D0-06AR?

There are many types of options cards available for the DL06 modules. Some of these are Combination I/O cards and Analog I/O cards.

What communication ports does the D0-06AR have?

The D0-06AR has two ports: one RS-232C port and a configurable RS-232C/RS-422/RS-485 port.

Reviews For D0-06AR

Internal Review
(4.0)

Because the D0-06AR is an AC module, this unit does not have the High Speed Input or Pulse Output like some of the DC modules have. Despite this, the D0-06AR remains a useful option for users needing a PLC. The module allows for a number of connections, which includes a PC. The D0-06AR also has expandable I/O ports. - AX Control Lead Technician
