The CM5-T7W C-more CM5 Series Touch Panels from Automation Direct

New Sealed Factory Package
$975
SKU: 7CCSTP1
3 Year Warranty:
Order Before 3PM EST
Rush Available
1 in Stock
New Surplus Factory Package
SKU: 7CCSTP2
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

New Surplus AX Control Package
SKU: 7CCSTP3
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned
SKU: 7CCSTP4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Repair
$465
SKU: 7CCSTP5
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the CM5-T7W

The CM5-T7W comes from the C-more CM5 Series Touch Panels by Automation Direct. This HMI has a 7 inch widescreen display that has a color Liquid Crystal Display and an LED backlight. This unit weighs 1.36 pounds and has a display viewing area size of 6.07 inches x 3.38 inches. This unit can be used as a comparable replacement for the EA9-T7CL(-R) and EA9-T6CL(-R).

The CM5-T7W has 45MB of project memory, which can allow for up to 999 screens. The CM5-T7W also has retentive memory, which can keen an internal log buffer for trends, alarms, and messages with up to 198KB of storage. This memory system also has 32KB of Retentive Tags and 79KB of alarm counts and history.

There are environmental specifications that the CM5-T7W must follow. Some of these are:

  • Operating temperature range of 0 to 50 degrees Celsius
  • Indoor use only
  • Non-corrosive atmosphere
  • NEMA 4/4X rated environment

If the CM5-T7W is not kept within these conditions, damage could be done to the HMI. For more information on the environment that this unit needs to be kept in, refer to the manual for the unit. This can be found under the "Manuals" tab on this product page.

CM5-T7W Technical Specifications

Part Number CM5-T7W
Manufacturer Automation Direct
Series C-more CM5 Series Touch Panels
Display Size 7.0 inches
Display Resolution 800 x 480 (WVGA)
Internal Fuse Rating 4A
Color Scale 16.7 M
Power Consumption 10.0 W
USB Type USB Type A and Type B
Storage Temperature -20 to 60 degrees Celsius
Replaces EA9-T7CL(-R) and EA9-T6CL(-R)
Constant Torque Rating Japan

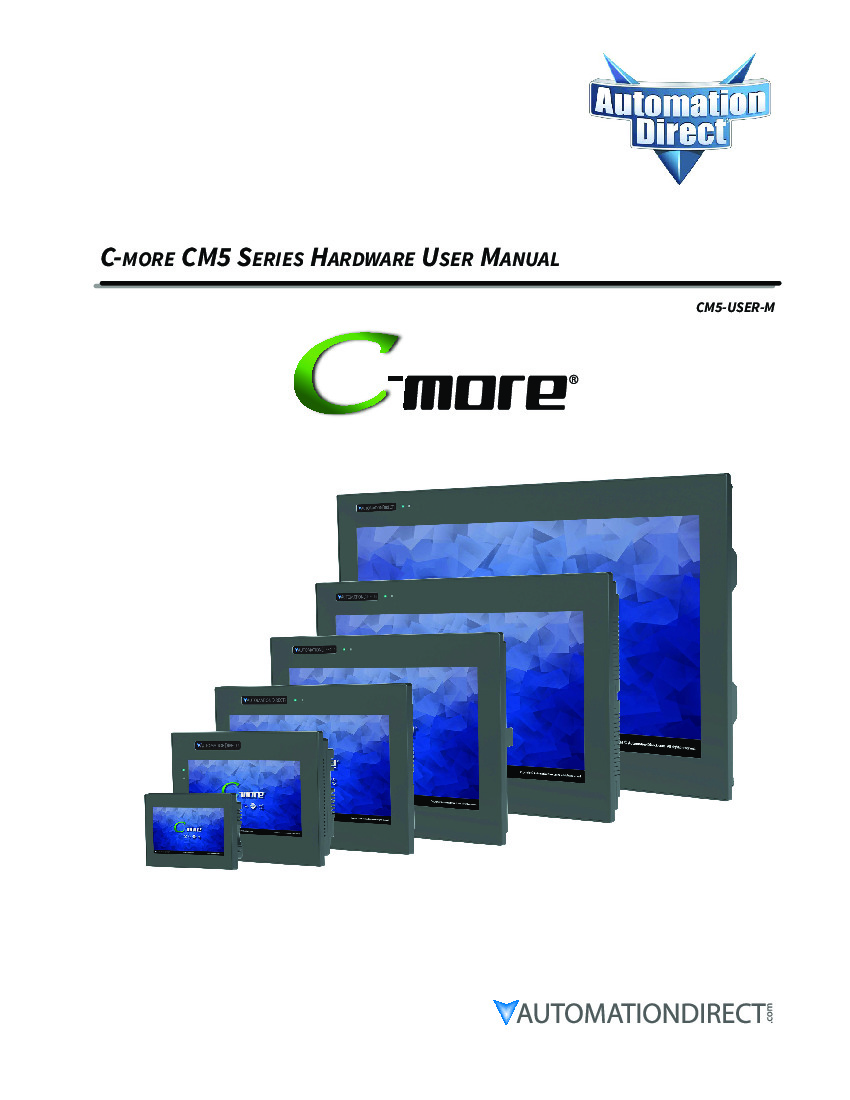

Manual Number CM5_UMW

Frequently Asked Questions about CM5-T7W

Does the CM5-T7W have serial ports?

Yes, the CM5-T7W has two serial ports. There is a 15-pin D-sub female port that supports RS-232C and RS-422/485 communication standards. There is also an RJ-12 modular jack that also supports the RS-232C standard.

How long is the backlight average lifetime for the CM5-T7W?

The backlight average lifetime is 50,000 hours at 25 degrees Celsius.

Reviews For CM5-T7W

Internal Review
(5.0)

The CM5-T7W is a 7 inch unit from the C-more CM5 Series Touch Panels. This HMI can record data for users and transfer that data to other devices through the variety of communications ports it has. These ports include an SD Card slot, two USB ports, an Ethernet port, and two serial ports. Both the Ethernet port and the USB Type B port allow for the CM5-T7W to be programmed. - AX Control Lead Technician
