About the CM5-T15W

The CM5-T15W is a Touch Panel from the C-more CM5 Series by Automation Direct. This HMI is designed to allow easy access to data, as well as an easier way to transfer data to and from a PLC. The CM5-T15W is a 15 inch HMI, making this unit the second largest in the series. The unit only weighs 5.51 pounds, which helps when it comes to mounting and installing.

The CM5-T15W has a color scale of over 16 million colors, allowing users to easily view data. The CM5-T15W comes equipped with an LED backlight. This unit can also display up to 999 screen, depending on the project memory. The CM5-T15W has 90 MB of project memory, which gives users plenty of storage for their projects.

The CM5-T15W has a number of ports that are important for connections with external devices. Three of these ports include serial ports. The CM5-T15W has the following types of serial ports:

3-wire terminal block (RS-485)
RJ-12 modular jack (RS-232C)
15-pin D-sub female port (RS232C, RS-422/485)

There are also four USB ports. Three of these ports are USB Type A, and one is a USB Type B. The Type A allow for USB device options to be connected to the CM5-T15W, while the Type B port allows for programming and downloading on the CM5-T15W.

CM5-T15W Technical Specifications

Part Number	CM5-T15W
Manufacturer	Automation Direct
Series	C-more CM5 Series Touch Panels
Display Size	15.6 inches
Weight	5.51 pounds
Display Resolution	1366 x 768 (HD)
Project Memory	90 MB
Operating Temperature	0 to 50 degrees Celsius
Storage Temperature	-20 to 60 degrees Celsius
Number of Serial Ports	3 Serial Ports
Country of Manufacturer	Japan
Manual Number	CM5_UMW

Frequently Asked Questions about CM5-T15W

What is the external power requirement for the CM5-T15W?

The CM5-T15W accepts 12-24 VDC. The unit also has a maximum wattage of 35.0 W.

What type of environment does the CM5-T15W need to be in?

The CM5-T15W can be used in Pollution Degree II environments, but it cannot be exposed to corrosive gases. The CM5-T15W can also be used in altitudes up to 2000m.

Reviews For CM5-T15W

Internal Review

(5.0)

The CM5-T15W can be used with PLCs to allows users to see graphical data from their components. This unit has a color display, which helps in differentiating certain aspects of the data. The CM5-T15W has a NEMA 4/4X case that is designed for indoor use only. The CM5-T15W must follow all environmental specifications, otherwise damage could occur to the unit. - AX Control Lead Technician

CM5-T15W Technical Specifications

Part Number	CM5-T15W
Manufacturer	Automation Direct
Series	C-more CM5 Series Touch Panels
Display Size	15.6 inches
Weight	5.51 pounds
Display Resolution	1366 x 768 (HD)
Project Memory	90 MB
Operating Temperature	0 to 50 degrees Celsius
Storage Temperature	-20 to 60 degrees Celsius
Number of Serial Ports	3 Serial Ports
Country of Manufacturer	Japan
Manual Number	CM5_UMW

About the CM5-T15W

The CM5-T15W is a Touch Panel from the C-more CM5 Series by Automation Direct. This HMI is designed to allow easy access to data, as well as an easier way to transfer data to and from a PLC. The CM5-T15W is a 15 inch HMI, making this unit the second largest in the series. The unit only weighs 5.51 pounds, which helps when it comes to mounting and installing.

The CM5-T15W has a color scale of over 16 million colors, allowing users to easily view data. The CM5-T15W comes equipped with an LED backlight. This unit can also display up to 999 screen, depending on the project memory. The CM5-T15W has 90 MB of project memory, which gives users plenty of storage for their projects.

The CM5-T15W has a number of ports that are important for connections with external devices. Three of these ports include serial ports. The CM5-T15W has the following types of serial ports:

3-wire terminal block (RS-485)
RJ-12 modular jack (RS-232C)
15-pin D-sub female port (RS232C, RS-422/485)

There are also four USB ports. Three of these ports are USB Type A, and one is a USB Type B. The Type A allow for USB device options to be connected to the CM5-T15W, while the Type B port allows for programming and downloading on the CM5-T15W.

Frequently Asked Questions about CM5-T15W

What is the external power requirement for the CM5-T15W?

The CM5-T15W accepts 12-24 VDC. The unit also has a maximum wattage of 35.0 W.

What type of environment does the CM5-T15W need to be in?

The CM5-T15W can be used in Pollution Degree II environments, but it cannot be exposed to corrosive gases. The CM5-T15W can also be used in altitudes up to 2000m.

Reviews For CM5-T15W

Internal Review

(5.0)

The CM5-T15W can be used with PLCs to allows users to see graphical data from their components. This unit has a color display, which helps in differentiating certain aspects of the data. The CM5-T15W has a NEMA 4/4X case that is designed for indoor use only. The CM5-T15W must follow all environmental specifications, otherwise damage could occur to the unit. - AX Control Lead Technician

CM5-T15W

The CM5-T15W C-more CM5 Series Touch Panel by Automation Direct

Product Conditions

About the CM5-T15W

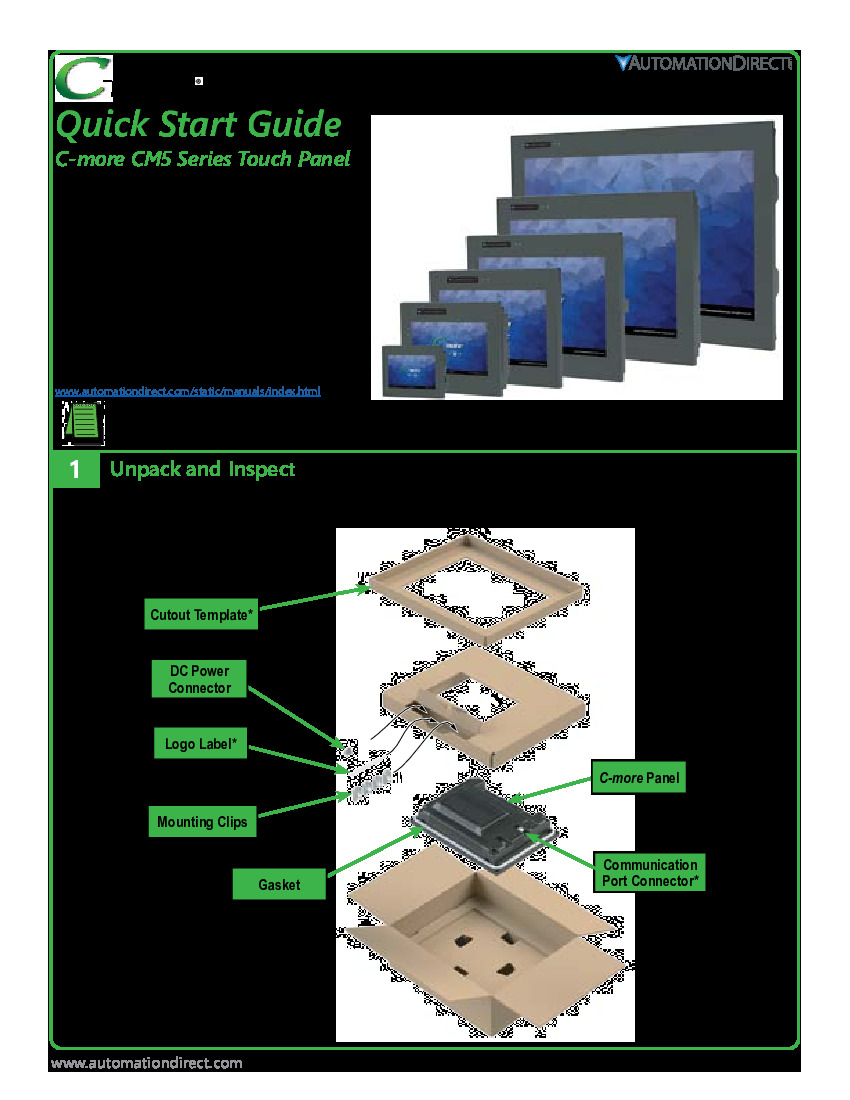

CM5-T15W Manuals, White Papers, Data Sheets, and Troubleshooting
