The C-more CM5 Series Touch Panels CM5-T10W by Automation Direct

New Sealed Factory Package
$1295
SKU: 2CCSTP1
3 Year Warranty:
Order Before 3PM EST
Rush Available
2 in Stock
New Surplus Factory Package
SKU: 2CCSTP2
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

New Surplus AX Control Package
SKU: 2CCSTP3
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned
SKU: 2CCSTP4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Repair
$695
SKU: 2CCSTP5
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the CM5-T10W

The CM5-T10W is a 10.1 inch C-more CM5 Series Touch Panel that was manufactured by Automation Direct. The CM5-T10W has a display resolution of 1024 x 600 pixels (WSVGA). This HMI weighs 2.29 pounds, making it easy to install and mount in a cutout. The cutout dimensions for the CM5-T10W are 9.25" x 7.07".

The CM5-T10W should be used with external power from 12-24 VDC. The nominal power consumption for the CM5-T10W is:

  • 1.75A @ 12 VDC
  • 0.88A @ 24 VDC

The CM5-T10W has 3 USB Type A ports, in addition to one USB Type B port. The USB ports run at USB 2.0 High Speed, which is 480 Mbps. The Type A ports allow for USB devices to be connected, while the Type B port allows for downloading and programming. The USB ports are just one example of the many ways users can receive or send data from the touch panel.

The CM5-T10W is designed to respond to a single touch. If multiple touches occur at the same time, an unexpected or unwanted object or application might be activated. The CM5-T10W can display or interchange data from a PLC with ease. There are also LED status indicators on both the front and back of the panel that help users ensure the CM5-T10W is functioning properly.

CM5-T10W Technical Specifications

Part Number CM5-T10W
Series C-more CM5 Series Touch Panels
Manufacturer Automation Direct
Screen Size 10.1"
Display Viewing Area 8.77" x 4.93"
Display Brightness 315 nits
Project Memory 90 MB
Pollution Degree Pollution Degree II; no corrosive gases
Power Consumption 21.0 W
Internal Fuse Rating 12.0 A
Replacement unit for EA9-T8CL and EA9-T10WCL
Country of Origin Japan

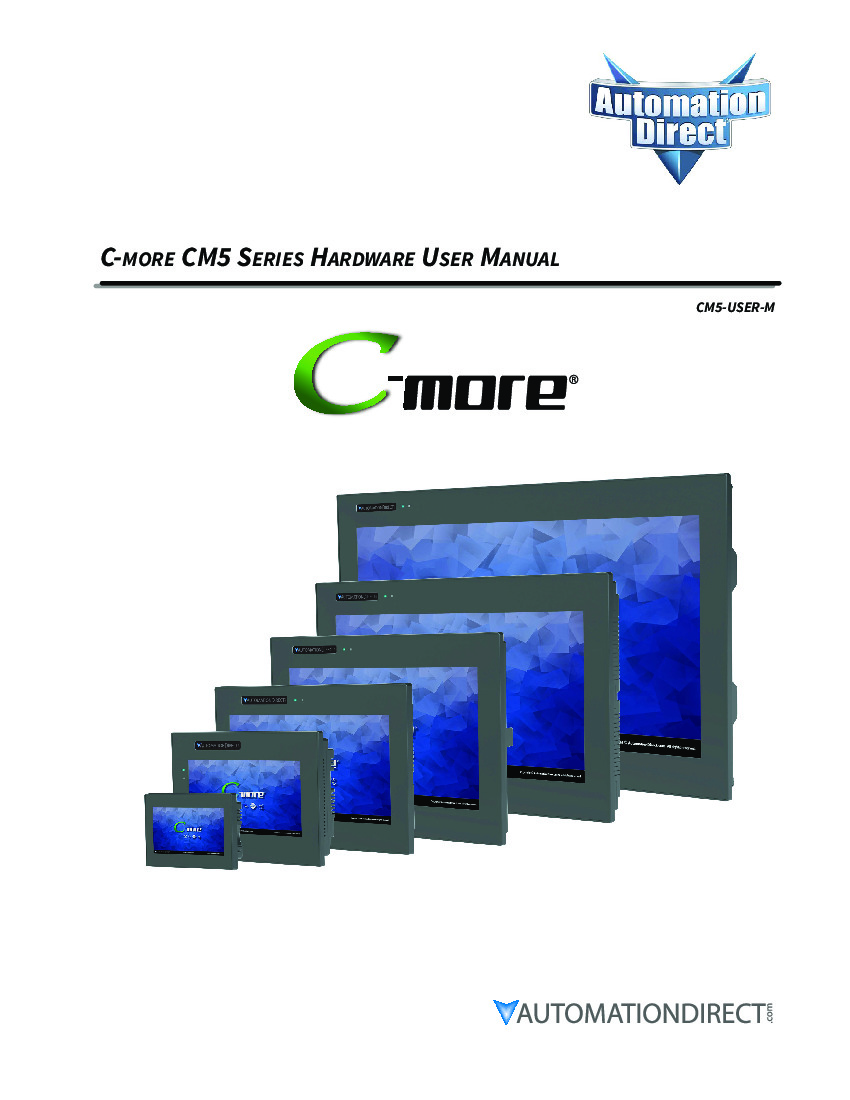

Manual Number CM5_UMW

Frequently Asked Questions about CM5-T10W

Does the CM5-T10W have one Ethernet port?

No, the CM5-T10W has two Ethernet ports that support Ethernet 10/100 Base-T.

What are the temperature ranges that the CM5-T10W needs to be kept in?

The CM5-T10W should be operated from 0 to 50 degrees Celsius. The unit can be stored from -20 to 60 degrees Celsius.

Reviews For CM5-T10W

Internal Review
(5.0)

The CM5-T10W is a 10 inch unit from the C-more CM5 series of touch panels. This unit has expanded capabilities compared to the smaller units. The project memory for the CM5-T10W is 90 MB, which allows for more data to be stored on the HMI. The CM5-T10W can have up to 999 screens, unless limited by the project memory. There are also retentive memory capabilities that the CM5-T10W has. - AX Control Lead Technician
