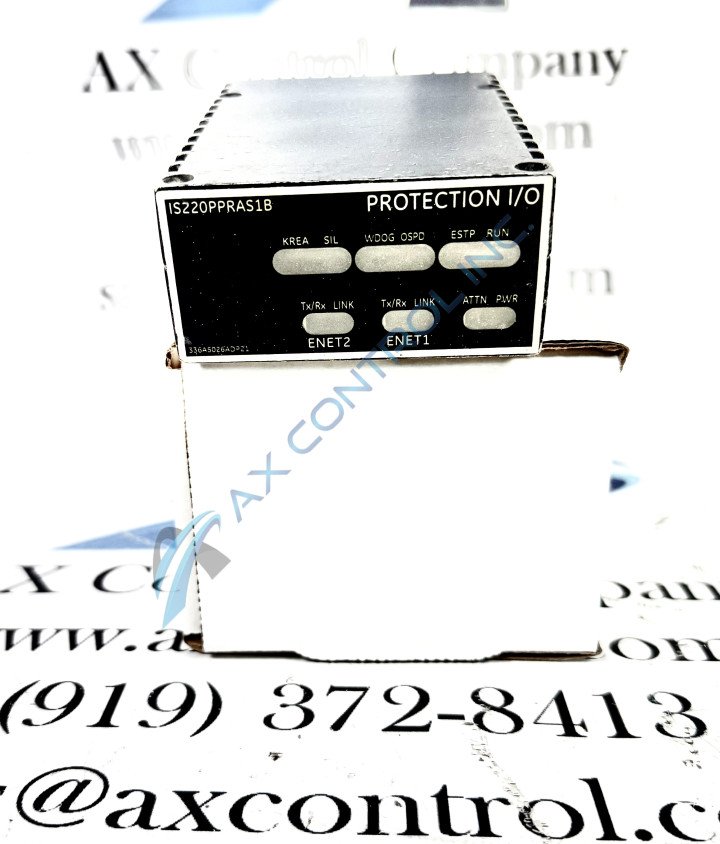

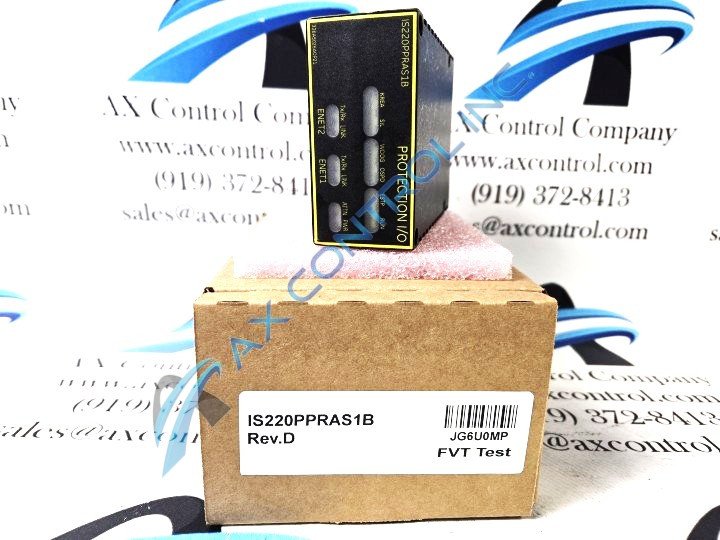

The IS220PPRAS1B is an Emergency Turbine Protection I/O Module from the Mark VIe Series by GE Energy

New Surplus Factory Package
SKU: 71MVMVCS1
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

New Surplus AX Control Package
SKU: 71MVMVCS2
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned
SKU: 71MVMVCS3
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Repair
$2880
SKU: 71MVMVCS4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the IS220PPRAS1B

The IS220PPRAS1B is an Emergency Turbine Protection I/O module that was manufactured by GE Energy. This pack is designed to be used in the Mark VIe Series, along with a TREA terminal board and two other PPRA protection packs. The purpose of the IS220PPRAS1B is to provide an independent backup overspeed protection system. The IS220PPRAS1B also has watchdog function for the primary control and isolated trip contact inputs.

The IS220PPRAS1B contains a BPPC processor board, which is a more advanced board than other protection packs have. The IS220PPRAS1B supports up to six speed inputs that can be configured in two ways. These configurations are:

  • Three speed sensors on two shafts
  • Two speed sensors on three shafts

The six speed signals can be protected against firmware overspeed, acceleration, deceleration, and a hardware implemented overspeed protection. The system monitors the operation of the primary control and of the TREA terminal board. If an issue is detected, the IS220PPRAS1B will trip the backup trip relays on the TREA board, which activates a trip on the primary control.

IS220PPRAS1B Technical Specifications

Part Number IS220PPRAS1B
Description Emergency Turbine Protection I/O Module
Manufacturer GE Energy
Series Mark VIe
Terminal Board IS200TREAS1A
Daughter Board IS200WREAS1A
System Configuration Triple Modular Redundant
Processor Board BPPC processor board
HazLoc Certification Certified

Frequently Asked Questions about IS220PPRAS1B

Does the IS220PPRAS1B need the TREA board to work?

Yes, the IS220PPRAS1B needs the TREA board as its host. The module also needs the WREA option board in order to work.

Does the IS220PPRAS1B mount directly on the TREA board?

Yes, the IS220PPRAS1B mounts directly onto the TREA board.

Reviews For IS220PPRAS1B

Internal Review
(4.0)

The IS220PPRAS1B is a useful backup protection system, but it requires two other PPRA packs and two boards in order to make the protection system. This makes the IS220PPRAS1B a four star part, given the number of elements needed. The IS220PPRAS1B is fully independent of the primary turbine protection system, which allows this system to keep working even if an error occurs to the primary protection system. - AX Control Lead Technician
