IS220PHRAH1A

4.50 (2)

Click a star to rate this product

4.50 (2)
Click a star to rate this product

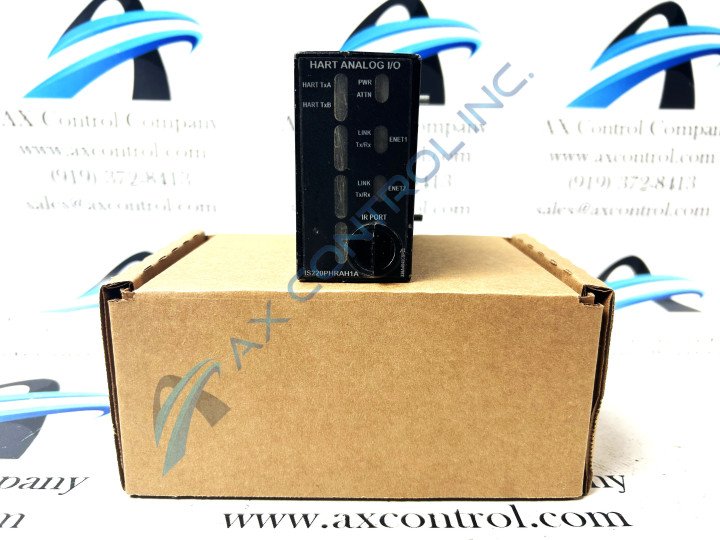

The IS220PHRAH1A is a Hart Analog I/O Pack manufactured by GE Energy for the Mark VIe series

New Surplus Factory Package

SKU: 65MVMVCS1

3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

New Surplus AX Control Package

SKU: 65MVMVCS2

3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned

$4645

SKU: 65MVMVCS3

3 Year Warranty:

Order Before 3PM EST

Rush Available

2 in Stock

Repair

$2270

SKU: 65MVMVCS4

3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the IS220PHRAH1A

The IS220PHRAH1A is a Highway Addressable Remote Transducer (HART) Enabled Analog I/O pack. The IS220PHRAH1A was manufactured by GE Energy for use in the Mark VIe series of turbine controls. The IS220PHRAH1A is designed as an electrical interface between one or two I/O Ethernet networks and an analog input/output terminal board.

The IS220PHRAH1A can support up to 10 analog inputs, with the first eight able to be configured as +/- 5 V inputs or 4-20mA current loop inputs. The final two inputs can be configured as +/-1 V or 4-20 mA current inputs. The IS220PHRAH1A also supports two 4-20 mA current loop outputs.

The IS220PHRAH1A is made up of a BPPB processor board and an acquisition board. The IS220PHRAH1A can be mounted on a terminal board. There are several terminal boards that the IS220PHRAH1A works with. These are:

SHRAH1A, S1A
SHRAH2A, S2A

The IS220PHRAH1A is only available for a simplex configuration.

IS220PHRAH1A Technical Specifications

Personal Model Number	IS220PHRAH1A
Product Type	Hart Analog I/O Pack
Product Line	Mark VIe Turbine Control Systems
OEM / Manufacturer	GE Energy
Important Specifications	10 AI and 2 AO (0-20 mA out)
Revision	A
Functional Acronym	PHRA
Shipping Dimensions	12x12x12 inches
Shipping Weight	5 lbs
Country of Origin	United States
Number of Channels	12 channels

Frequently Asked Questions about IS220PHRAH1A

Can the IS220PHRAH1A relay HART messages?

Yes, the IS220PHRAH1A can relay HART messages between HART enabled field devices and an Asset Management System. This can only happen when the IS220PHRAH1A is in 4-20 mA mode.

How does the IS220PHRAH1A get input?

Input is through dual RJ45 Ethernet ports and a 3-pin power input.

Reviews For IS220PHRAH1A

Internal Review

(5.0)

The IS220PHRAH1A is equipped with LEDs that allow users to know the status of the module. There are two yellows LEDs, labeled HART TxA and HART TxB, that light up when a HART message is sent from the IS220PHRAH1A to a field device. - AX Control Lead Technician
