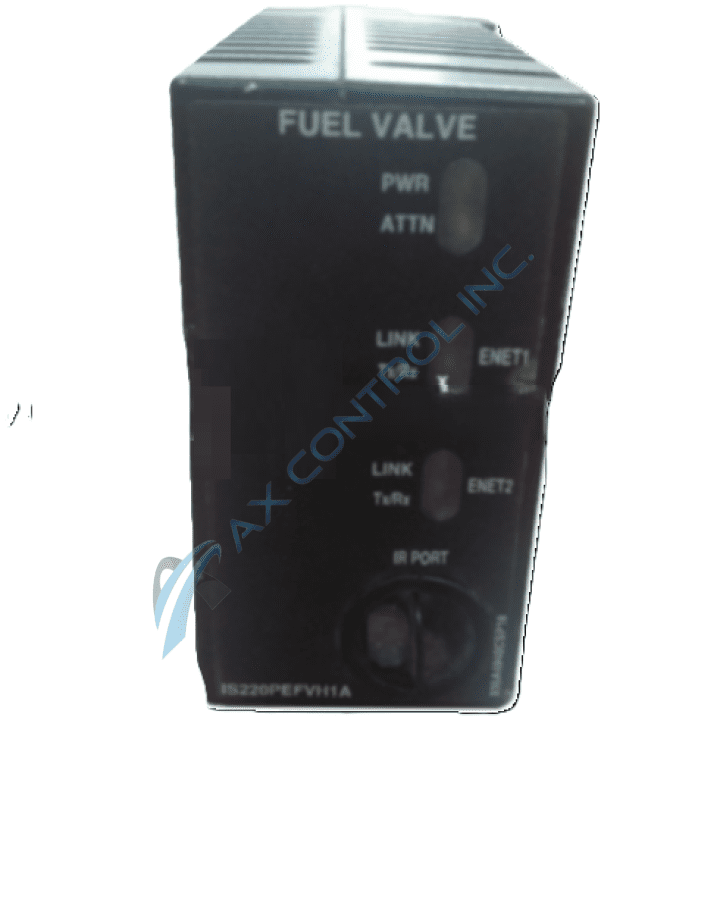

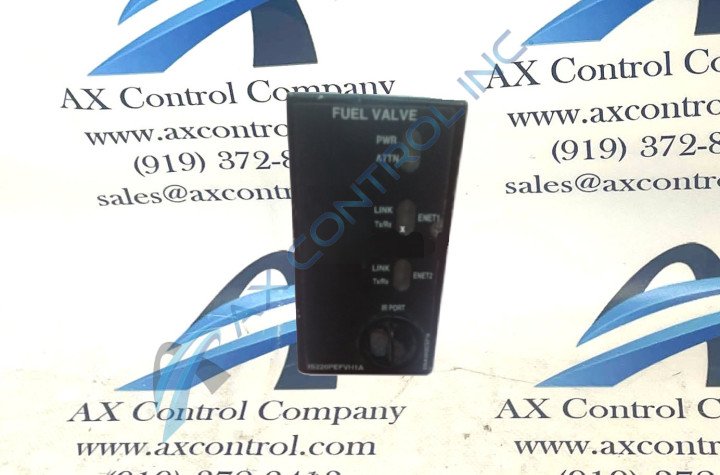

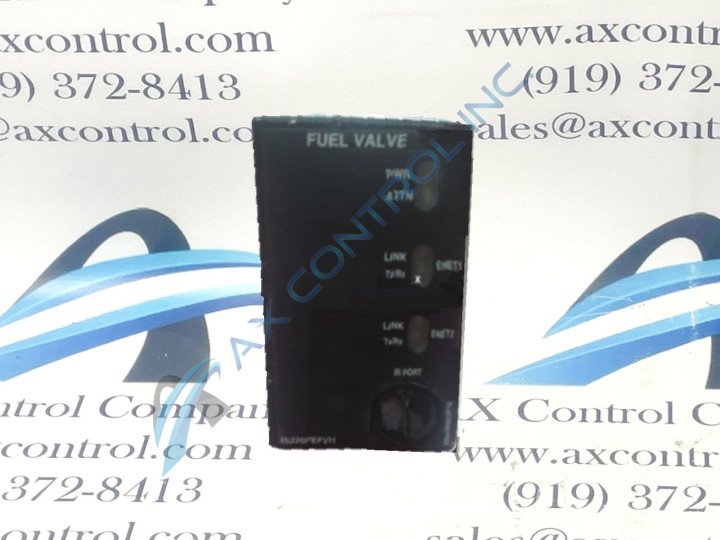

The IS220PEFVH1A is an Electric Fuel Valve Gateway Module from the Mark VIe series manufactured by GE Energy
* Learn More About Product Conditions
* Posted pricing available for website purchases only.
Product Conditions
New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.
New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.
Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.
About the IS220PEFVH1A
The IS220PEFVH1A is an Electric Fuel Valve Gateway Module that was manufactured by GE Energy. The module was designed for the Mark VIe series. The IS220PEFVH1A acts as an Ethernet gateway between the Mark VIe control I/O Ethernet network and an electric fuel valve interface module. This electric fuel valve interface module is called a Digital Valve Positioner (DVP). This valve was manufactured by Woodward Controls.
IS220PEFVH1A Specifications
The IS220PEFVH1A has a processor board that is common to all I/O packs in the Mark VIe series. The IS220PEFVH1A also uses a terminal board, the TEFVH1A. This pack can be configured to simplex, dual, and TMR systems.
The IS220PEFVH1A has two RJ-45 Ethernet connectors. These connectors have different purposes.
- One RJ-45 connector connects to the I/O Ethernet network
- The other RJ-45 connector connects to the DVP
There is also has a 3-pin connector that supplies power to the I/O pack. The infrared port on the IS220PEFVH1A is not used.
IS220PEFVH1A Technical Specifications
| Functional Part Number | IS220PEFVH1A |
| Part Type | Electric Fuel Valve Gateway Module |
| Manufacturer | GE Energy |
| Series | Mark VIe |
| Transition Status | Not Transitioned |
| Versatility | Input/Output |
| No Price Impact Replacement # | Not Available |
| Interfacing | Woodward Products |
| Personal Functional Acronym | PEFV |
Frequently Asked Questions about IS220PEFVH1A
Is the terminal board used for any I/O connections?
How are diagnostics monitored on the IS220PEFVH1A?
Reviews For IS220PEFVH1A
Internal Review
(5.0)The IS220PEFVH1A is used as an Ethernet gateway between the Mark VIe series and Woodward Controls Digital Valve Positioner, which makes this a five star pack. This pack allows for connections between two different manufacturers. The IS220PEFVH1A contains the same processor board as other Mark VIe packs, which makes this pack another flexible option from the Mark VIe series. - AX Control Lead Technician
