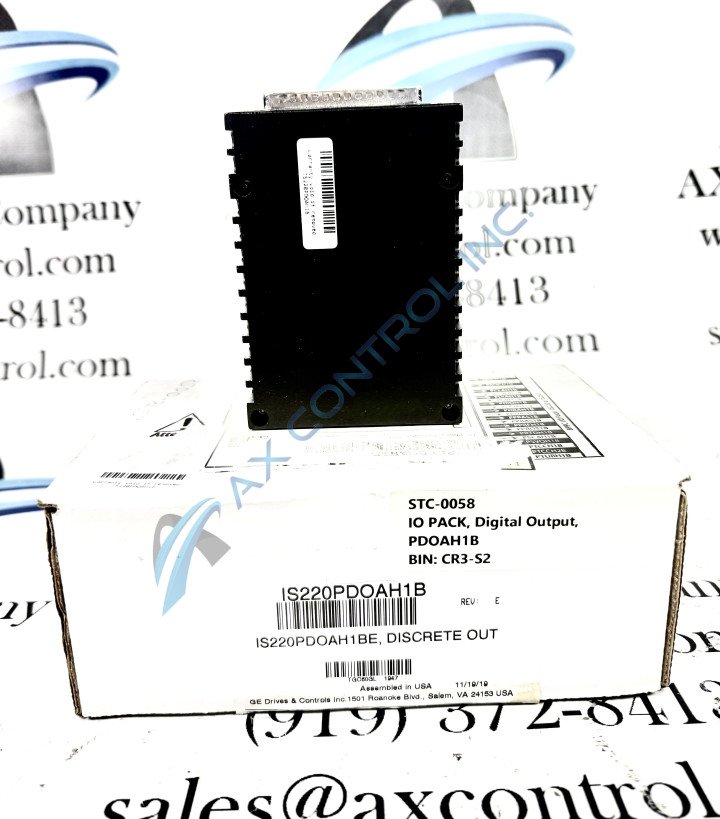

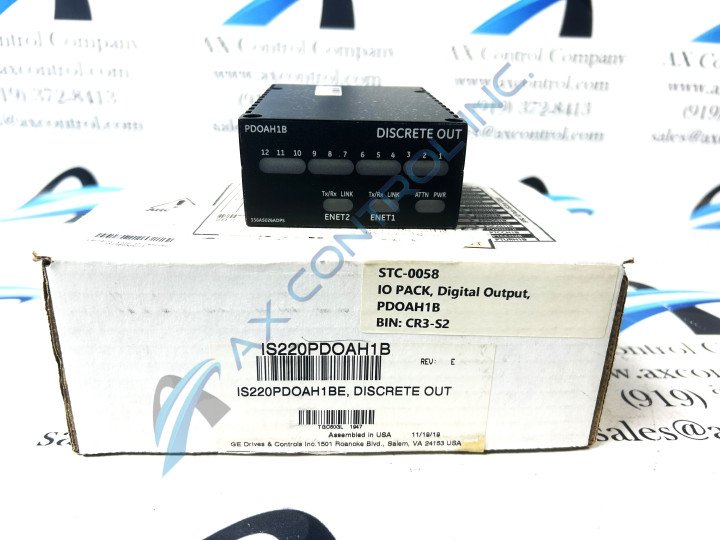

The IS220PDOAH1B is a Discrete Output Module from the Mark VIe series manufactured by GE Energy

New Surplus Factory Package
$6485
SKU: 63MVMVCS1
3 Year Warranty:
Order Before 3PM EST
Rush Available
1 in Stock
New Surplus AX Control Package
$6265
SKU: 63MVMVCS2
3 Year Warranty:
Order Before 3PM EST
Rush Available
1 in Stock
Reconditioned
SKU: 63MVMVCS3
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Repair
$2145
SKU: 63MVMVCS4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the IS220PDOAH1B

The IS220PDOAH1B is a Discrete Output Module that was manufactured for the Mark VIe Turbine Control System Series. This module was manufactured by GE Energy. The purpose of the IS220PDOAH1B is to provide an electrical interface between one or two I/O Ethernet networks and a discrete output terminal board.

IS220PDOAH1B Specifications

The IS220PDOAH1B has a BPPC processor board and an acquisition board that is specific to the discrete output module. The IS220PDOAH1B is also compatible with a number of discrete output terminal board, which includes the TRLY and SRLY boards.

The IS220PDOAH1B can control up to 12 relays and also accepts terminal board specific feedback. There are two types of relays available. These are:

  • Electromagnetic relays (with TRLYH1B, C, D, and F boards)
  • Solid-state relays (with TRLYH#E boards)

The IS220PDOAH1B is capable of both simplex and TMR connections.

IS220PDOAH1B Technical Specifications

Part Number IS220PDOAH1B
Product Type Discrete Output Module
Manufacturer GE Energy
Series Mark VIe
Chassis Type Vented
External Power Requirement 28 V dc
Input and Output Pack Redundancy Discrete
Terminal Boards TRLY, SRLY, WROB, WROF, WROG, WROH

Frequently Asked Questions about IS220PDOAH1B

What is the DC-37 pin connector for?

This connector acts as an interface for the terminal board.

Is the IS220PDOAH1B compatible with the DRLY boards?

No, the IS220PDOAH1B is not compatible with DRLY boards.

Reviews For IS220PDOAH1B

Internal Review
(5.0)

The IS220PDOAH1B has multiple types of relays available depending on which terminal board is being used. This allows for a greater amount of flexibility and for users to configure the relay type if needed. Both simplex and TMR connections are accepted. - AX Control Lead Technician
