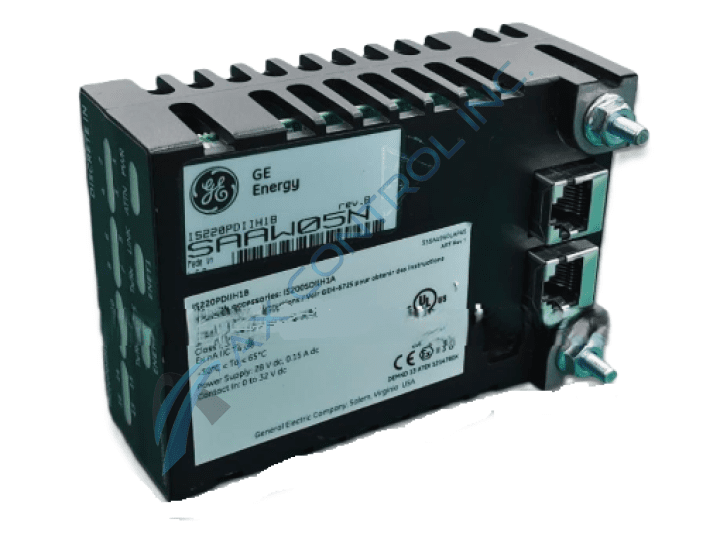

The IS220PDIIH1A is an Isolated Discrete Input Module manufactured by GE Energy for the Mark VIe series
* Learn More About Product Conditions
* Posted pricing available for website purchases only.
Product Conditions
New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.
New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.
Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.
About the IS220PDIIH1A
The IS220PDIIH1A is an Isolated Discrete Input Module that was manufactured by GE Energy for the Mark VIe series. The IS220PDIIH1A provides an electrical interface between a point/group isolated discrete input terminal board and one or two I/O Ethernet networks.
IS220PDIIH1A Specifications
The IS220PDIIH1A has a BPPB processor board and an SDII terminal board. The module also has an optional board that it can be used with, the WDII. There are three version of the WDII that can be used with the module. These are:
- WDIIH1
- WDIIH2
- WDIIH3
The IS220PDIIH1A can accept up to 16 isolated contact inputs that can either be pointed isolated, group isolated, or a mix depending on the terminal and optional board configurations. The channels have different voltage levels. These voltage levels are:
- 24 V dc
- 48 V dc
- 125 V dc
- 250 V dc
- 115 V ac rms
- 230 V ac rms
IS220PDIIH1A Technical Specifications
| Part Number | IS220PDIIH1A |
| Description | Isolated Contact Input Module |
| Manufacturer | GE Energy |
| Series | Mark VIe |
| A-Rated Rev | Primary Functional Rev |
| IS220PDIIH1A Acronym | PDII |
| Manual | GEH-6721 |
Frequently Asked Questions about IS220PDIIH1A
How does the IS220PDIIH1A get its system input?
Does the IS220PDIIH1A have self diagnostic tests?
Reviews For IS220PDIIH1A
Internal Review
(5.0)The IS220PDIIH1A can accept a variety of voltage levels, depending on the optional board that is connected to the pack. This gives users the options to switch voltage levels. In addition to the self diagnostic testing, the pack also has user-administrated diagnostic tests for contact excitation voltage and field line monitoring. - AX Control Lead Technician
