The IS215UCCAE03 Mark VIe Controller Compute Engine was made by GE Energy for the Mark VIe Speedtronic system control series. This model features the special "E"-type protective PCB coating.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS215UCCAE03 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS215UCCAE03
  • SKU: IS215UCCAE03GBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VIe & Mark VIeS Control Systems

IS215UCCAE03 Technical Specifications

Manufacturer GE Energy
Series Mark VIe Speedtronic
Part Number IS215UCCAE03
Functional Acronym UCCA
Functional Description Mark VIe Controller Compute Engine
PCB Coating E-style PCB coating
Functional Revision 1 E

About the IS215UCCAE03

As designated by the IS215 Series tag present at the very beginning of the IS215UCCAE03 product number, the UCCA-abbreviated Controller Compute Engine is no regular printed circuit board. A relative lack of original-issue instructional material for the IS215UCCAE03 exists online, but this is somewhat supplementable through the existence of manuals on similar cousin and sister models including the IS215UCCAH3 and the IS215UCCAM03 component printed circuit boards. While the IS215UCCAE03 PCB may have a special assembly type, it exists as an unrevised and unmodified original controller compute engine developed for the Mark VIe Speedtronic Series.

Hardware Tips and Specifications

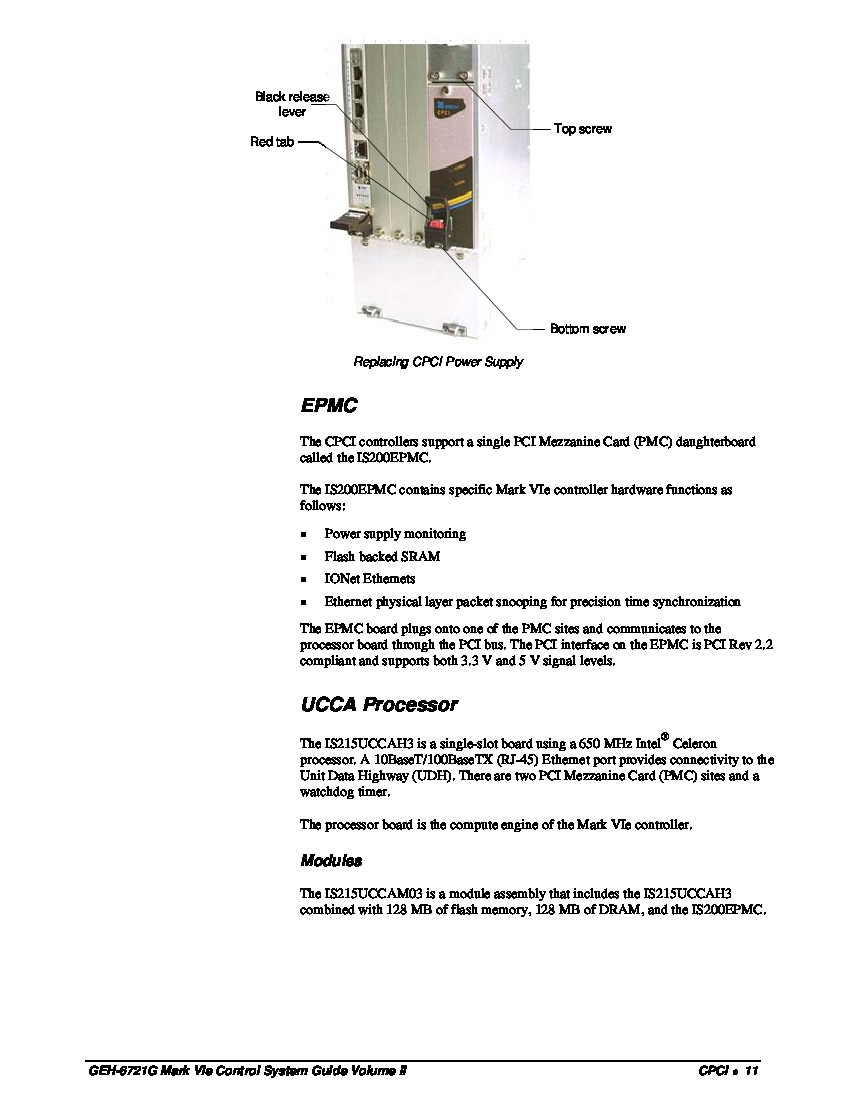

While not a whole lot of information is available on the internet, a number of methods exist to make it possible to gather some hardware-specific information for this compute engine. The first relevant method of revealing pertinent IS215UCCAE03 information exists in a simple visual inspection, conducted by one of our knowledgable service technicians. The first hardware element obvious upon a visual inspection of the IS215UCCAE03 is its single-slot status; the face plate of the IS215UCCAE03 features no awkwardly-jutting components that would prevent installation in a singular VME slot, and makes use of two factory-standard plastic clips with corresponding screws. This printed circuit board, as with many single-slot PCBs in the Mark VIe series, has a series of ports which are labeled for the drive assembly administrator's convenience. There are two ports labeled "Mezzanine card" on the faceplate of the IS215UCCAE03 board, although only one mezzanine card is actually installed on the model. The unused mezzanine card ports seems to have been blocked off for intuitive PCB usage. One LAN ethernet port and two stacked COM ports are all included on the face plate of this Compute Engine Board; labeled fittingly. Over three hundred capacitors and three hundred resistors have been included on the base board of the IS215UCCAE03 for voltage protection purposes, with each capacitor or resistor receiving their own factory-printed label. A series of other factory-issued nomenclatures and labels populate the surface of this PCB, including but not limited to:

  • an "ATTENTION" label asserting the PCB's status as a Electrostatic Sensitive Device
  • an Intel factory-printed label on top of the microprocessor component chip
  • VMIC Legend B
  • VUI3U barcode labels
  • the 501808-00490276 barcode label
  • the IS215UCCAE03 part number label

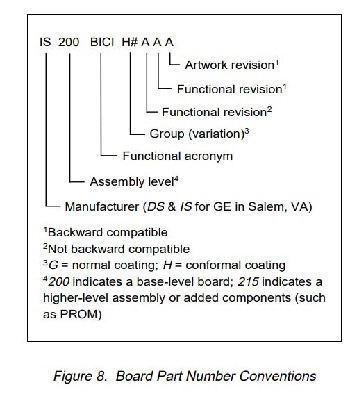

As mentioned briefly, a slew of other factory labels exist alongside the components they match with, beyond those identified in the list above. While a visual inspection of this IS215UCCAE03 model Mark VIe Speedtronic product was certainly helpful, a more general understanding of the printed circuit board can be achieved through a careful part number breakdown, as outlined in the IS215UCCAE03 Part Number Breakdown attached above in the manuals tab. For starters, the initial IS200 series tag inserted in the IS215UCCAE03 full product number relates to the printed circuit board administrator that this product was manufactured domestically in General Electric's Salem, Virginia factory. Beyond this UCCA PCB's original factory location, the UCCA functional acronym is revealed through the IS215UCCAE03 part number; quickly followed by the E03 Series grouping. This series grouping classifies this PCB as a group 3 Mark VIe series product that is protected by a layer of conformal-style coating. Again, for a diagrammed reference guide to the IS215UCCAE03 Part Number Breakdown, please reference the material provided in our "manuals" tab above.

Frequently Asked Questions about IS215UCCAE03

Is the IS215UCCAE03 printed circuit board included in the assembly of the IS215UCCAM03 module assembly?

Yes and no. While it is perfectly rational that the IS215UCCAE03 board would exist as a Controller Compute Engine component for the IS215UCCAM03 module assembly, the original factory-issued instructional manual for the IS215UCCAM03 designates it as compatible with the IS215UCCAH3 specifically.

How is it apparent that this IS215UCCAE03 model doen't make use of any functional revisions?

The lack of any trailing "A" "B" "C" or other digit behind the IS215UCCAE03 specialized product number suggest that no revisions have altered this product, significantly or otherwise.

Why is the unused Mezzanine Card Slot on the faceplate of the IS215UCCAE03 board blocked off?

While this IS215UCCAE03 product features two total Mezzanine card ports, one of them is blocked off as only one mezzanine card exists affixed to the IS215UCCAE03 board assembly. This secondary port was likely blocked off to limit potentially hazardous surface voltages.

Reviews For IS215UCCAE03

Internal Review
(5.0)

A member of the specialized Mark VIe Turbine Control Systems manufactured by General Electric shell company GE Energy; the IS215UCCAE03 Controller Compute Engine is intended for use specifically in Wind Turbine Control Systems. Some of the crucial hardware specifications that play heavy hands in the IS215UCCAE03 printed circuit board's overall functionality include its special E-rated circuit board protection and its standard powerful Intel Celeron microprocessor. This is a well-protected PCB in terms of its voltage protection; the base board of the IS215UCCAE03 features over five hundred total capacitors or resistors for current guidance and voltage dampening purposes - AX Control Lead Technician.
