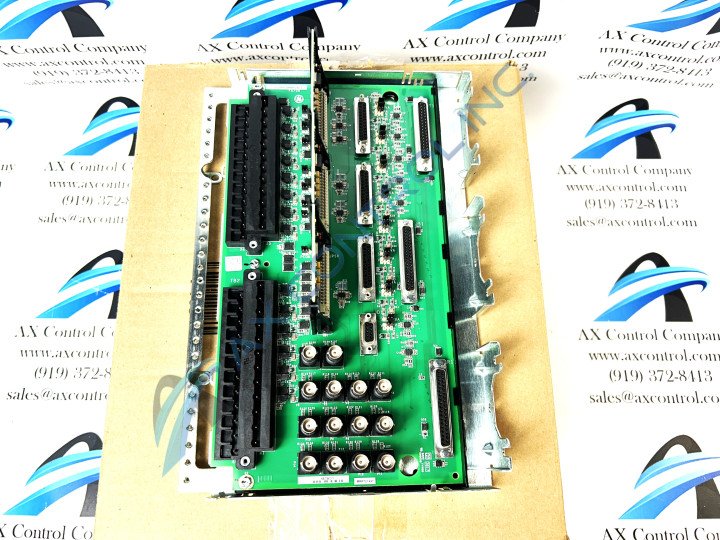

The IS200TVBAH2A is a Vibration Input Terminal Board designed by GE Energy for use as a signal interface board for the Mark VIe Speedtronic product series.

New Surplus Factory Package
SKU: 31MVMVCS1
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Request Quote
New Surplus AX Control Package
SKU: 31MVMVCS2
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Request Quote
Reconditioned
$8765
SKU: 31MVMVCS3
3 Year Warranty:
Order Before 3PM EST
Rush Available
1 in Stock
Repair
$2246
SKU: 31MVMVCS4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the IS200TVBAH2A

  • The IS200TVBAH2A is a printed circuit board (PCB) developed by General Electric.
  • It is a Vibration Input Terminal Board within the Mark VIe Speedtronic Turbine Control System Series.
  • This model is a revised version of the original IS200TVCAH2 PCB.
  • Often referred to by its acronym TVBA.
Applications and Significance
  • Specific applications in the management and control systems of GE-compatible gas, steam, and wind turbine automated drive assemblies.
  • Its series (Mark VIe) is one of the final GE Mark product series to incorporate the patented Speedtronic control system technology.
Hardware Specifications and Functionality

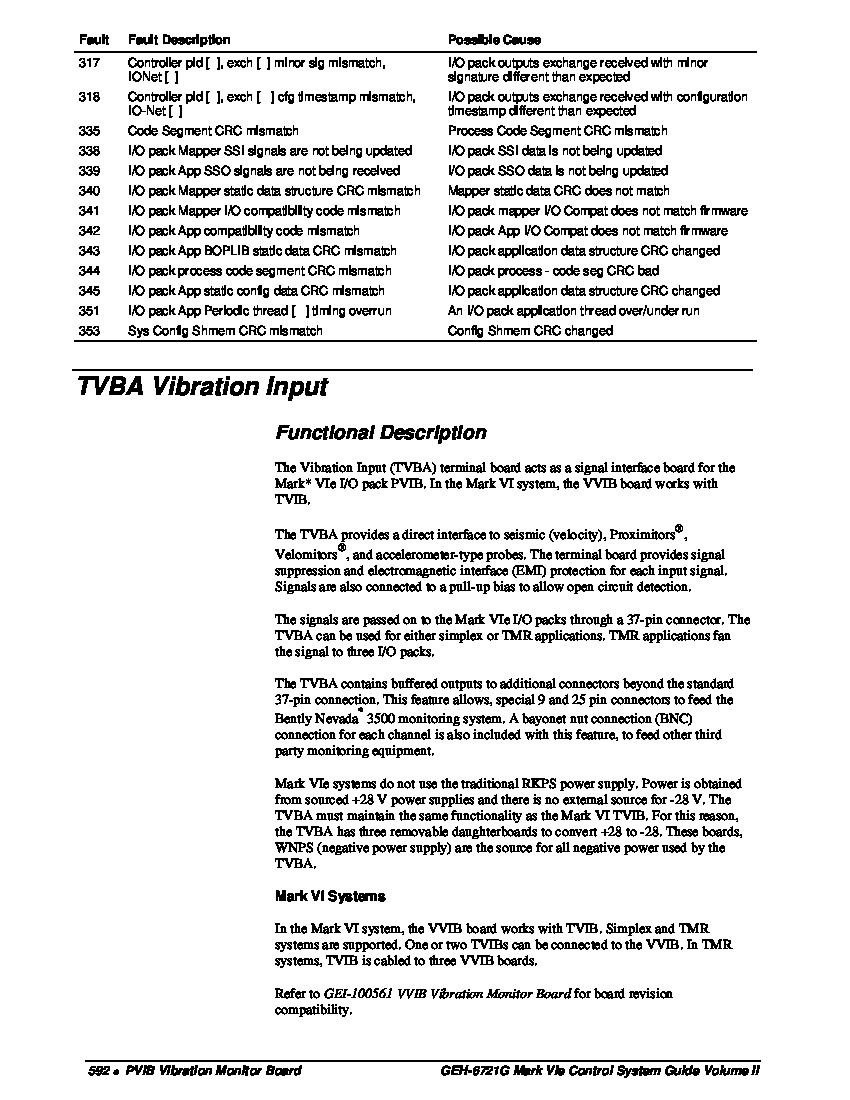

  • Power Supply: Does not use the traditional RKPS power supply. Instead, power is acquired from several 28 V power supplies (no external source supplied, must maintain TVIB board functionality).
  • Negative Voltage: Includes three removable daughterboards capable of converting +28 V voltage to -28 V voltage. All negative-voltage power should be contained within these daughterboards.
  • Interfacing: Provides direct interfacing for multiple types of probes.
  • Signal Protection: Provides signal suppression and EMI protection for each individual input signal.
  • Overall Assembly Components:
    • Two terminal blocks.
    • 14 sensor inputs wired to the terminal blocks.
    • 24 terminals in total.
    • A shield termination attachment point.
    • Eleven plugs for Bently-Nevada data.
    • A 37-pin connector.
    • Additional buffer outputs (beyond the 37-pin connector).
    • Many other important components.
  • Coating: Features a conformal-style PCB coating, which is thinner but provides a more thorough and complete layer of protection than normal-style coating.
Product Revision Information
  • Revised Model: Indicated by the "H2A" in the part number.
  • Revision Type: Classified as a functional revision, enhancing overall efficiency and functionality.

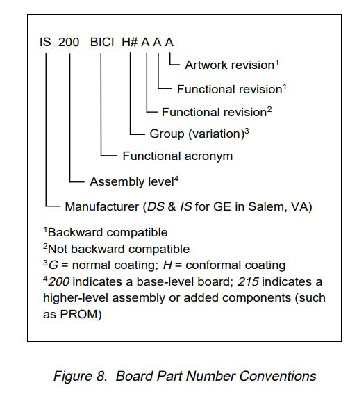

  • "H2A" Breakdown: Concurrently indicates a conformally-coated PCB, a group 2 series grouping, and a functional revision rated at an "A" grade.

IS200TVBAH2A Technical Specifications

Manufacturer General Electric
Series Mark VIe Speedtronic
Part Number IS200TVBAH2A
Functional Acronym TVBA
Functional Description Vibration Input Terminal Board
PCB Coating Conformal Coating
Functional Revision 1 B
Weight 3.2 lb

Frequently Asked Questions about IS200TVBAH2A

What happens if one of IS200TVBAH2A's inputs experiences an out-of-range voltage?

Should one of the IS200TVBAH2A PCB's numerous inputs encounter an out-of-range voltage; the I/O processor should create a diagnostic alarm to alert the drive administrator.

How many N24 buffered outputs are offered on the IS200TVBAH2A's base board?

The IS200TVBAH2A offers a series of fourteen total N24 buffered outputs.

What transducers are accommodated by the IS200TVBAH2A PCB's Vibration Inputs?

The IS200TVBAH2A's unique Vibration Inputs accomodate proximitor, seismic, velomiter, and accelerometer styles of transducers.

Reviews For IS200TVBAH2A

Internal Review
(5.0)

The IS200TVBAH2A Vibration Input Terminal Board is a dependable and customizable printed circuit board that symbolizes the steadiness of the greater Mark VI Speedtronic series. This particular PCB makes use of a set of three removable daughterboards to allow for supreme maintenance of IS200TVBAH2A's base board and board components. Beyond this printed circuit board's standard 37-pin connector exist an additional number of buffer outputs geared towards making more connections possible to the IS200TVBAH2A PCB. This product's singularly-revised status may alter its overall performance specifications and dimensions somewhat, although the "A" functional revision is relatively common. - AX Control Lead Technician

IS200TVBAH2A Technical Specifications

Manufacturer General Electric
Series Mark VIe Speedtronic
Part Number IS200TVBAH2A
Functional Acronym TVBA
Functional Description Vibration Input Terminal Board
PCB Coating Conformal Coating
Functional Revision 1 B
Weight 3.2 lb

About the IS200TVBAH2A

  • The IS200TVBAH2A is a printed circuit board (PCB) developed by General Electric.
  • It is a Vibration Input Terminal Board within the Mark VIe Speedtronic Turbine Control System Series.
  • This model is a revised version of the original IS200TVCAH2 PCB.
  • Often referred to by its acronym TVBA.
Applications and Significance
  • Specific applications in the management and control systems of GE-compatible gas, steam, and wind turbine automated drive assemblies.
  • Its series (Mark VIe) is one of the final GE Mark product series to incorporate the patented Speedtronic control system technology.
Hardware Specifications and Functionality
  • Power Supply: Does not use the traditional RKPS power supply. Instead, power is acquired from several 28 V power supplies (no external source supplied, must maintain TVIB board functionality).
  • Negative Voltage: Includes three removable daughterboards capable of converting +28 V voltage to -28 V voltage. All negative-voltage power should be contained within these daughterboards.
  • Interfacing: Provides direct interfacing for multiple types of probes.
  • Signal Protection: Provides signal suppression and EMI protection for each individual input signal.
  • Overall Assembly Components:
    • Two terminal blocks.
    • 14 sensor inputs wired to the terminal blocks.
    • 24 terminals in total.
    • A shield termination attachment point.
    • Eleven plugs for Bently-Nevada data.
    • A 37-pin connector.
    • Additional buffer outputs (beyond the 37-pin connector).
    • Many other important components.
  • Coating: Features a conformal-style PCB coating, which is thinner but provides a more thorough and complete layer of protection than normal-style coating.
Product Revision Information
  • Revised Model: Indicated by the "H2A" in the part number.
  • Revision Type: Classified as a functional revision, enhancing overall efficiency and functionality.
  • "H2A" Breakdown: Concurrently indicates a conformally-coated PCB, a group 2 series grouping, and a functional revision rated at an "A" grade.

Frequently Asked Questions about IS200TVBAH2A

What happens if one of IS200TVBAH2A's inputs experiences an out-of-range voltage?

Should one of the IS200TVBAH2A PCB's numerous inputs encounter an out-of-range voltage; the I/O processor should create a diagnostic alarm to alert the drive administrator.

How many N24 buffered outputs are offered on the IS200TVBAH2A's base board?

The IS200TVBAH2A offers a series of fourteen total N24 buffered outputs.

What transducers are accommodated by the IS200TVBAH2A PCB's Vibration Inputs?

The IS200TVBAH2A's unique Vibration Inputs accomodate proximitor, seismic, velomiter, and accelerometer styles of transducers.

Reviews For IS200TVBAH2A

Internal Review
(5.0)

The IS200TVBAH2A Vibration Input Terminal Board is a dependable and customizable printed circuit board that symbolizes the steadiness of the greater Mark VI Speedtronic series. This particular PCB makes use of a set of three removable daughterboards to allow for supreme maintenance of IS200TVBAH2A's base board and board components. Beyond this printed circuit board's standard 37-pin connector exist an additional number of buffer outputs geared towards making more connections possible to the IS200TVBAH2A PCB. This product's singularly-revised status may alter its overall performance specifications and dimensions somewhat, although the "A" functional revision is relatively common. - AX Control Lead Technician
