IS200TDBTH2A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures 4.86 (7) Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.86 (7)
  • Click a star to rate this product

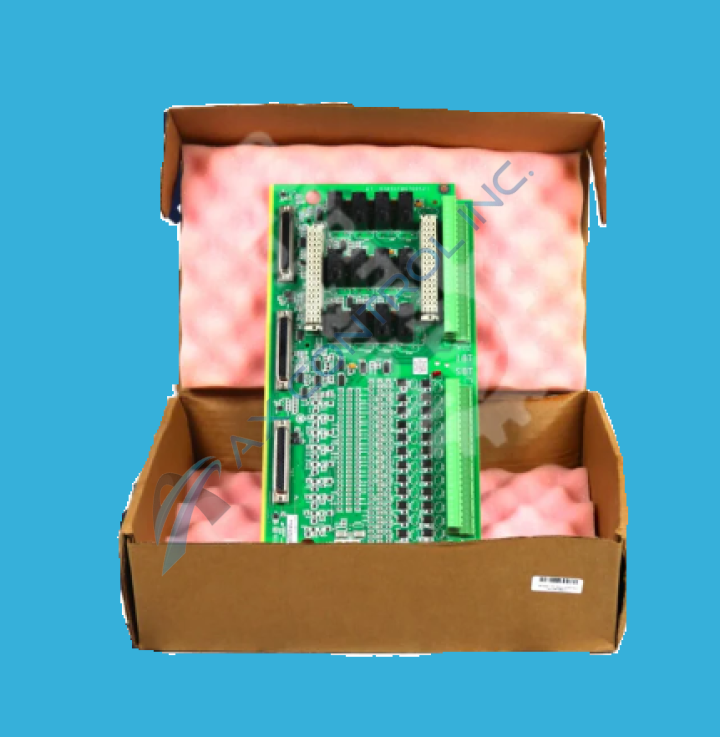

The IS200TDBTH2A is a Discrete I/O Terminal Board from the Mark VIe series that was manufactured by GE Energy

New Surplus Factory Package
$6655
SKU: 25MVMVCS1
3 Year Warranty:
Order Before 3PM EST
Rush Available
1 in Stock
New Surplus AX Control Package
SKU: 25MVMVCS2
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned
SKU: 25MVMVCS3
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Repair
$2725
SKU: 25MVMVCS4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the IS200TDBTH2A

The IS200TDBTH2A is a Discrete I/O Terminal Board that was manufactured by GE Energy for use in the Mark VIe series. This board has 24 group isolated contact inputs and 12 form-C relay outputs. The IS200TDBTH2A has a nominal wetting voltage of 24 VDC.

The IS200TDBTH2A part number reveals several characteristics that are important to the board. Some of these are:

  • IS200 Normal Assembly
  • TDBT Unique Product Number
  • Group 2 Grouping
  • Conformal PCB Coating
  • A-rated Revision

The conformal PCB coating allotted to this IS200TDBTH2A, unlike the more common normal coating alternative, is actually applied to the entire base circuit board of the IS200TDBTH2A, and not just centrally-important components.

IS200TDBTH2A Technical Specifications

Unique Catalog Number IS200TDBTH2A
Original Retailer General Electric
Series Mark VIe & VIeS
Functional Description IS200TDBTH2A Discrete I/O Terminal Board
Mounting Strategy DIN Rail Mount
Revision Table A-Rated Functional Rev
Mark Series Grouping Second Group
Unique V dc Rating 24 V dc

Frequently Asked Questions about IS200TDBTH2A

What I/O pack can the IS200TDBTH2A work with?

The IS200TDBTH2A can be used with the PDIO I/O pack.

Is there an option board that can connect to the IS200TDBTH2A?

Yes, the IS200WROB can be used to provide sensed and fused power distribution to the first 6 outputs. The board also provides dedicated power to the last output.

Reviews For IS200TDBTH2A

Internal Review
(4.0)

The IS200TDBTH2A can accept up to 24 contact inputs, which are specially designed with noise suppression to help protect against surge and high frequency noises. This ensures that there is no interruption due to noise. The IS200TDBTH2A is not equipped with any jumpers, which means the board cannot be configured. - AX Control Lead Technician
